6.15.3 Charging controller (dT)
Line no. Operating line
3810 Temp diff on
Line no. Operating line
3811 Temp diff off
Line no. Operating line
3812 Charg temp min DHW st tank
Line no. Operating line
3813 Temp diff on buffer
Line no. Operating line
3814 Temp diff off buffer
Line no. Operating line
3816 Temp diff on swi pool
Line no. Operating line
3817 Temp diff off swi pool
Line no. Operating line
3818 Charging temp min swi pool
Note!
When using setting - - -, the general temperature differential solar (Temp diff on
(3810) and Temp diff off (3811)) is adopted.
When charging the storage tank via the heat exchanger, the temperature differential
between collector and storage tank/swimming pool must be sufficient, and the collector
must have reached the minimum charging temperature for the storage tank/swimming
pool.

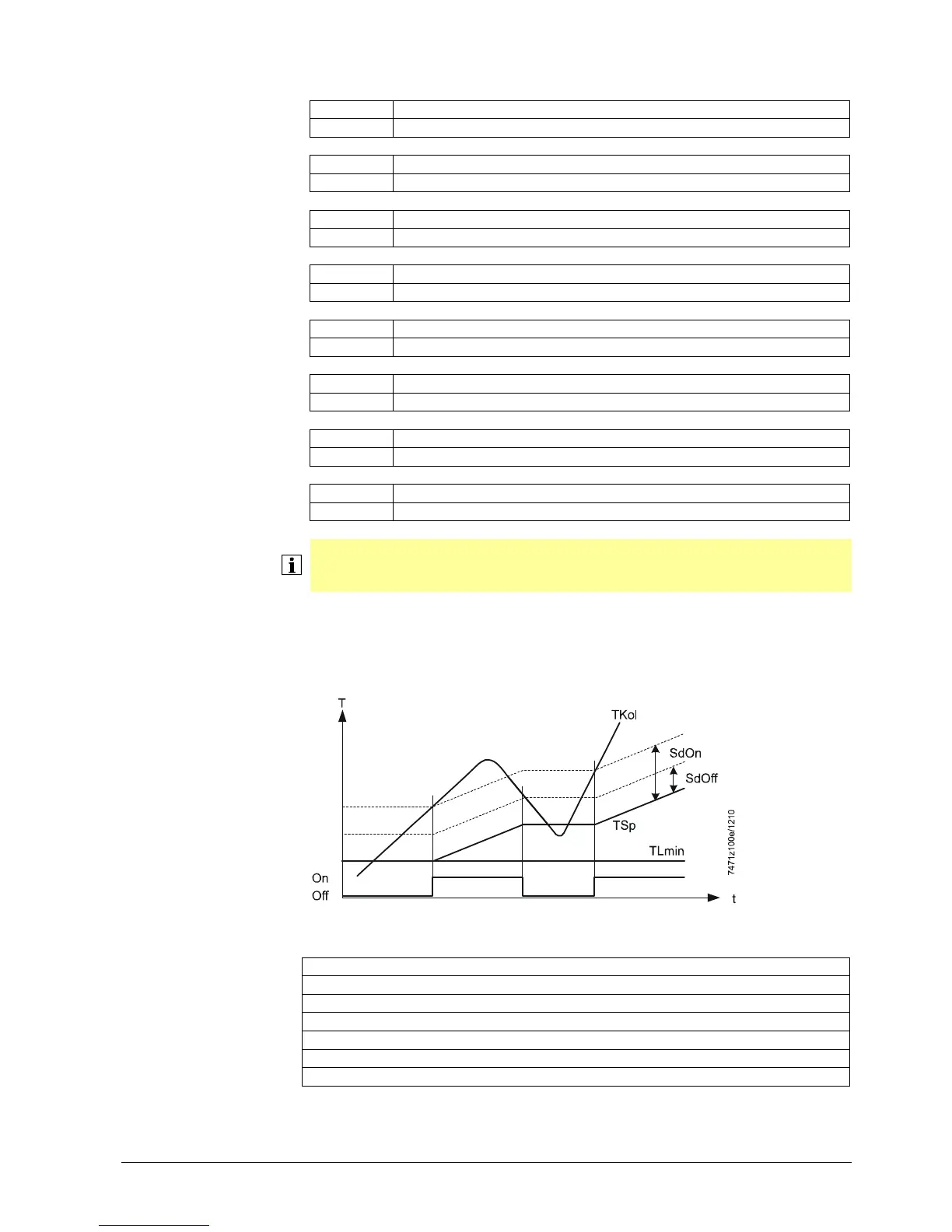

Figure 55: Charging controller – charging temperature minimum swimming pool
Key
Meaning
On/Off Collector pump
SdAus Dynamic switch-off threshold
SdEin Switch-on threshold (heating circuit/DHW)
TKol Collector temperature
TLmin Minimum charging temperature DHW storage tank/buffer/swimming pool
TSp Storage tank temperature
Temp diff on
Temp diff off
Charg temp min DHW st
tank
Temp diff on buffer
Temp diff off buffer
Temp diff on swi pool
Temp diff off swi pool
Charging temp min
swi pool
