9.2.6 Diagnostics via websites
In the "DIAGURLS.TXT" text file found in the ...\USER\SIMOTION\HMI\SYSLOG\DIAG
directory, you can specify HTML files whose status is to be stored on the CF card when
diagnostic data are created during operation, for example,"devinfo.mcs" must be entered for
the "devinfo.htm" website.
Since the pages in question are stored together with their most up-to-date contents, this
enables
the latest status information regarding the SIMOTION device, as well as the machine/
system, from the point at which diagnostic data were created (e.g. when the service selector
switch was activated) to be archived.
In addition to the standard SIMOTION IT web server pages, it is possible to store customized
pages. Information on creating pages of this type can be found in, for example, Utilities &
Applications.

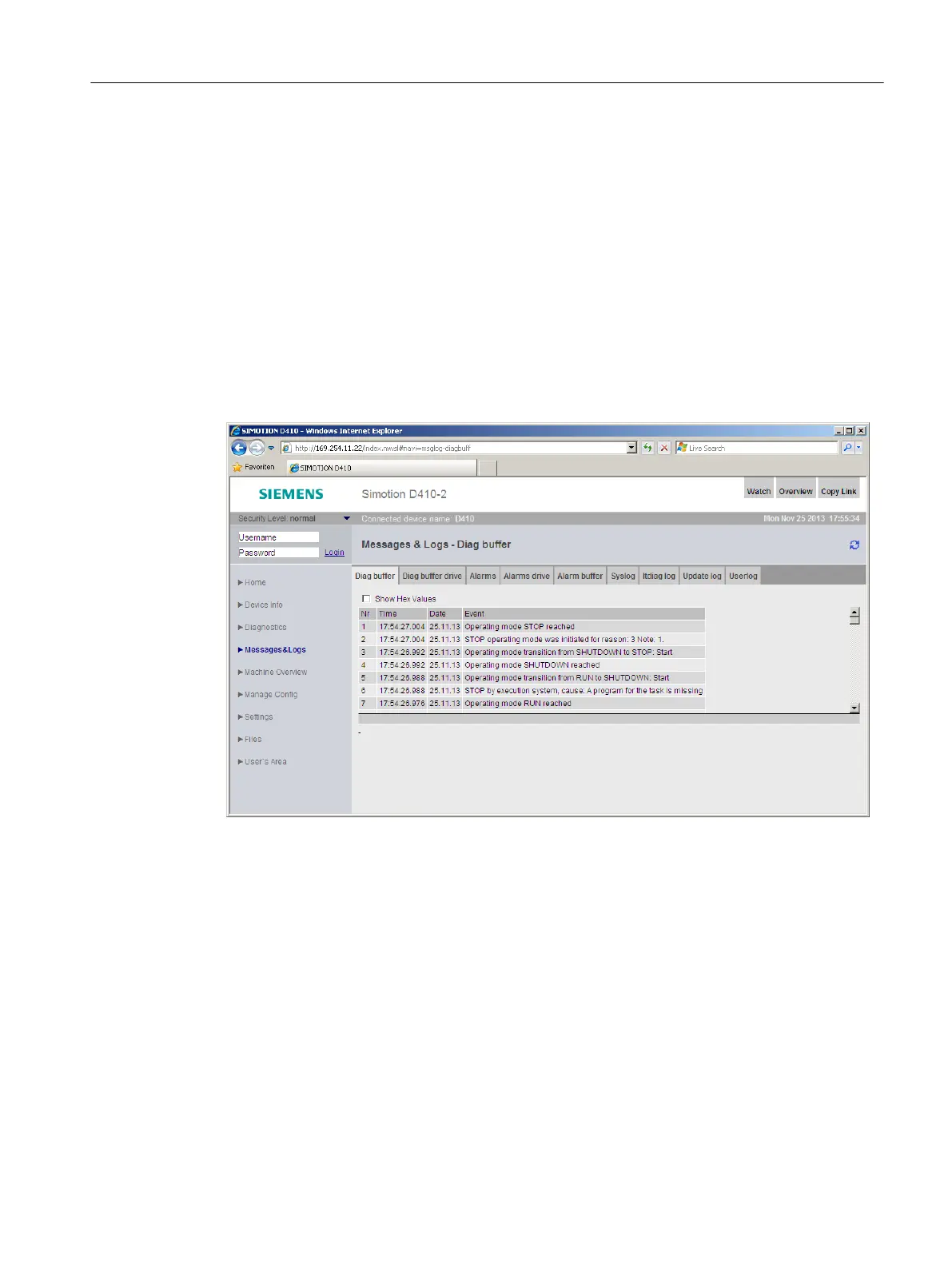

Figure 9-5 Diagnostic buffer at the point when diagnostic data was created
The following points must be noted for the DIAGURLS.TXT file:
●
A DIAGURLS.TXT file containing the standard web pages is automatically created if you
have not stored your own DIAGURLS.TXT file.
● Standard web pages are entered "without" specifying a path (e.g. "devinfo.mcs" for the
standard web page "devinfo.htm").
● User web pages (such as "user.htm") in the \USER\SIMOTION\HMI\FILES directory on the
CF card must contain the FILES/ path specification.
● If you have created subfolders (e.g. "myfolder" in the FILES directory), these must also
appear in the path.
● Only 1 file name may be used per line.
● Empty lines are not permitted (an empty line will be interpreted as the end of the list).
Diagnostics
9.2 Diagnostic data and non-volatile SIMOTION data
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 309
