Type Description
Uint32 32-bit unsigned integer
Float 32-bit floating point number

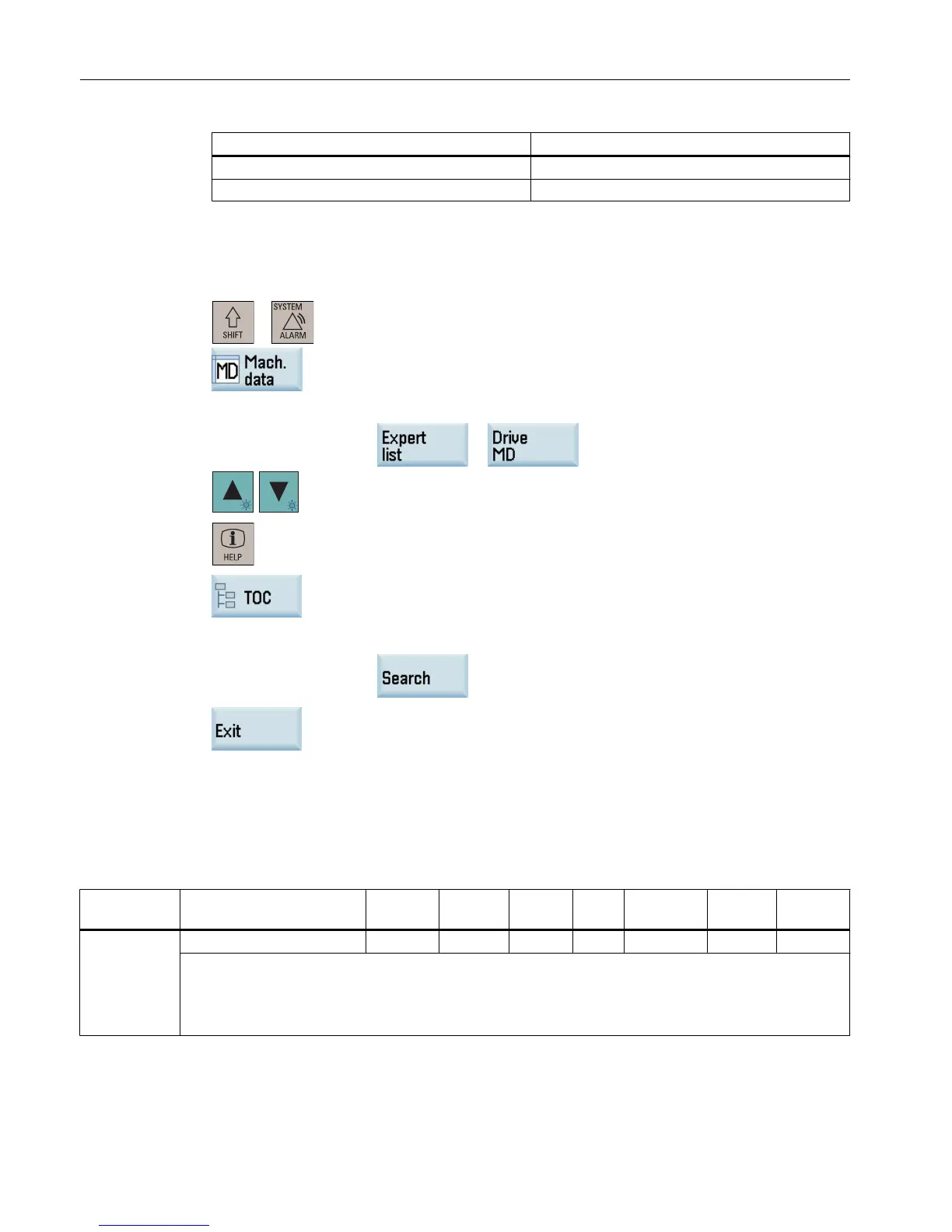

Calling help information for V70 parameters
You can call the help information for the V70 drive parameters on the PPU by proceeding
through the following steps:
+ 1. Select the system data operating area.
2. Press this softkey to open the machine data window.
3. Open the drive data list through the following softkey operations:
→
4. Select the desired parameter using the cursor keys.
5. Press this key to call the help information for the selected parameter.
Note: You can further press this softkey in the current help screen to
show a complete list of all SINAMICS V70 parameters. In addition,
you can
also use the following softkey to search for a specific param‐
eter by number in this list:
6. Pressing this softkey exits the help system.
7.1.1 V70 parameters on BOP
The table below lists the parameters displayed on the drive BOP only.
Par. No. Name Min Max Factory
setting
Unit Data type Effective Can be
changed
r0020 Speed setpoint smoothed - - - rpm Float - -
Description: Displays the currently
smoothed speed setpoint at the input of the speed controller or U/f char‐
acteristic (after the interpolator).
Smoothing time constant = 100 ms
The signal is not suitable as a process quantity and may only be used as a display quantity.
SINAMICS parameters
7.1 SINAMICS V70 parameters
Parameter Manual
510 List Manual, 01/2017
