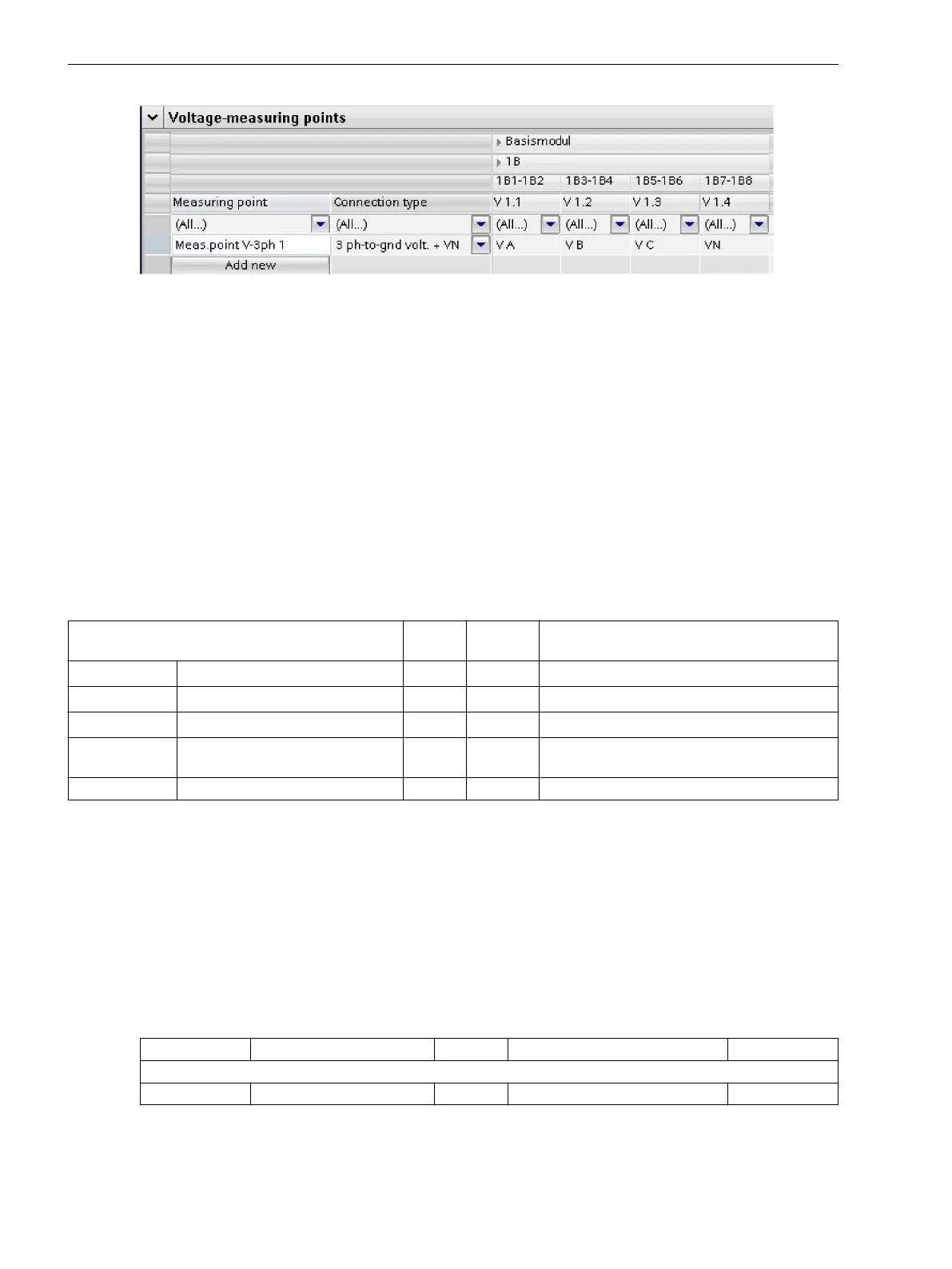

[scfgucon-230812-01.tif, 1, en_US]
Figure 6-3 Assigning Measuring Points
If you add functions to the Voltage 3-phase function group, these are connected to the measuring point auto-
matically.
You connect the Voltage 3-phase function group to the voltage measuring points via the interface to the
measuring points. This assignment can only be made in DIGSI 5 via Project tree → Function group connec-
tions.
To connect the interfaces, set a cross at the intersection between the desired row and column in the matrix
(refer to Figure 6-3).
Operational Measured Values
The operational measured values are always present in the Voltage 3-phase function group and cannot be
deleted.
The following table shows the operational measured values of the Voltage 3-phase function group:
Table 6-1
Operational Measured Values of the Voltage 3-Phase Function Group
Measured Values Primary Secon-
dary
% Referenced to
V
A
, V
B
, V
C
Phase-to-ground voltages kV V Operating rated voltage of primary values/√3
V
AB
, V
BC
, V
CA
Phase-to-phase voltage kV V Rated operating voltage of the primary values
V
0
Zero-sequence voltage kV V Operating rated voltage of primary values/√3
V
NG
Neutral-point displacement
voltage
kV V Operating rated voltage of primary values/√3
f Frequency Hz Hz Rated frequency
Application and Setting Notes
Parameter: Rated voltage
•
Default setting (_:9421:102) Rated voltage = 400.00 kV
With the Rated voltage parameter, you set the primary rated voltage. The Rated voltage set here is
the reference value for the percentage-measured values and setting values made in percentages.
Settings
Addr.
Parameter C Setting Options Default Setting
Rated values
_:9421:102 General:Rated voltage 0.20 kV to 1200.00 kV 400.00 kV
6.1.3
6.1.4
Function-Group Types
6.1 Function-Group Type Voltage 3-Phase
138 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017
