Table 7-17 Using SPS Indications
Measurand Refresh Rate Use in
FSR SSR CR TR
SPS messages Event-based X X X
Application and Setting Notes
Settings of the Recorder Routing V Function
[Screcrou-030614-01, 1, en_US]

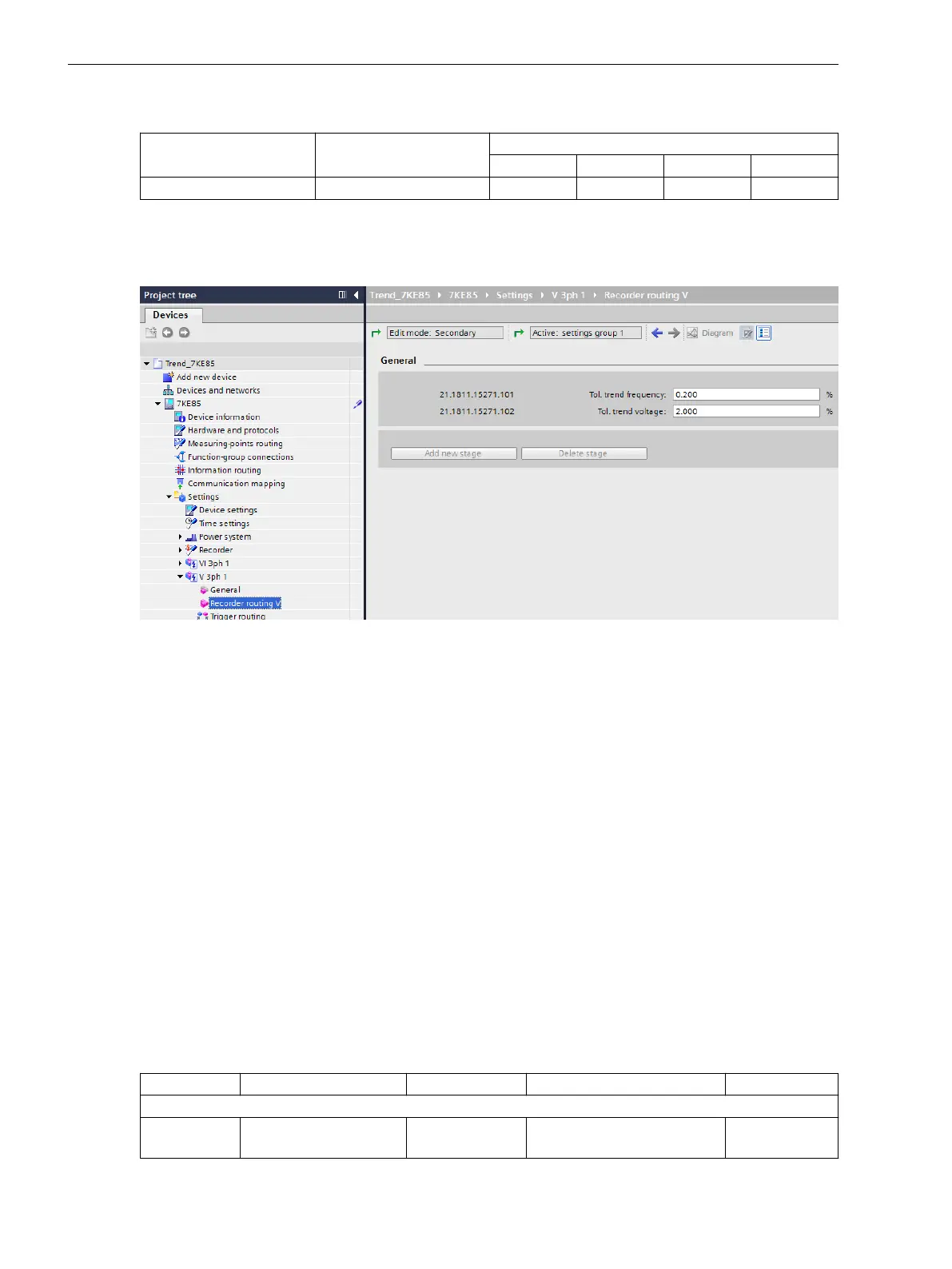

Figure 7-72 Settings of the Recorder Routing V
This representation applies in a similar manner to the Recorder routing VI function.
The Recorder routing V function can only be added to the Voltage 3-phase function group.
The procedure is described in chapter 7.1.2 Step 1: Creating a New Project and Adding a New Device and in
the DIGSI Help.
Parameter: Tol. trend frequency
•
Default setting (_:15271:101) Tol. trend frequency = 0.200 %
Using the parameter Tol. trend frequency, you set the tolerance range for the frequency measured
value at which a new RMS value is recorded following an exceedance.
The setting value refers to the rated frequency set as a parameter.
Parameter: Tol. trend voltage
•
Default setting (_:15271:102) Tol. trend voltage = 2.000 %
Using the parameter Tol. trend voltage, you set the tolerance range for the voltage measured value at
which a new RMS value is recorded following an exceedance.
The setting value refers to the rated voltage set as a parameter.
Settings
Addr.
Parameter C Setting Options Default Setting
General
_:15271:101 General:Tol. trend
frequency
0.010 % to 1.000 % 0.200 %
7.6.2.4
7.6.2.5
Fault Recorder
7.6 Measurands and Recorder Routing Functions
354 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017
