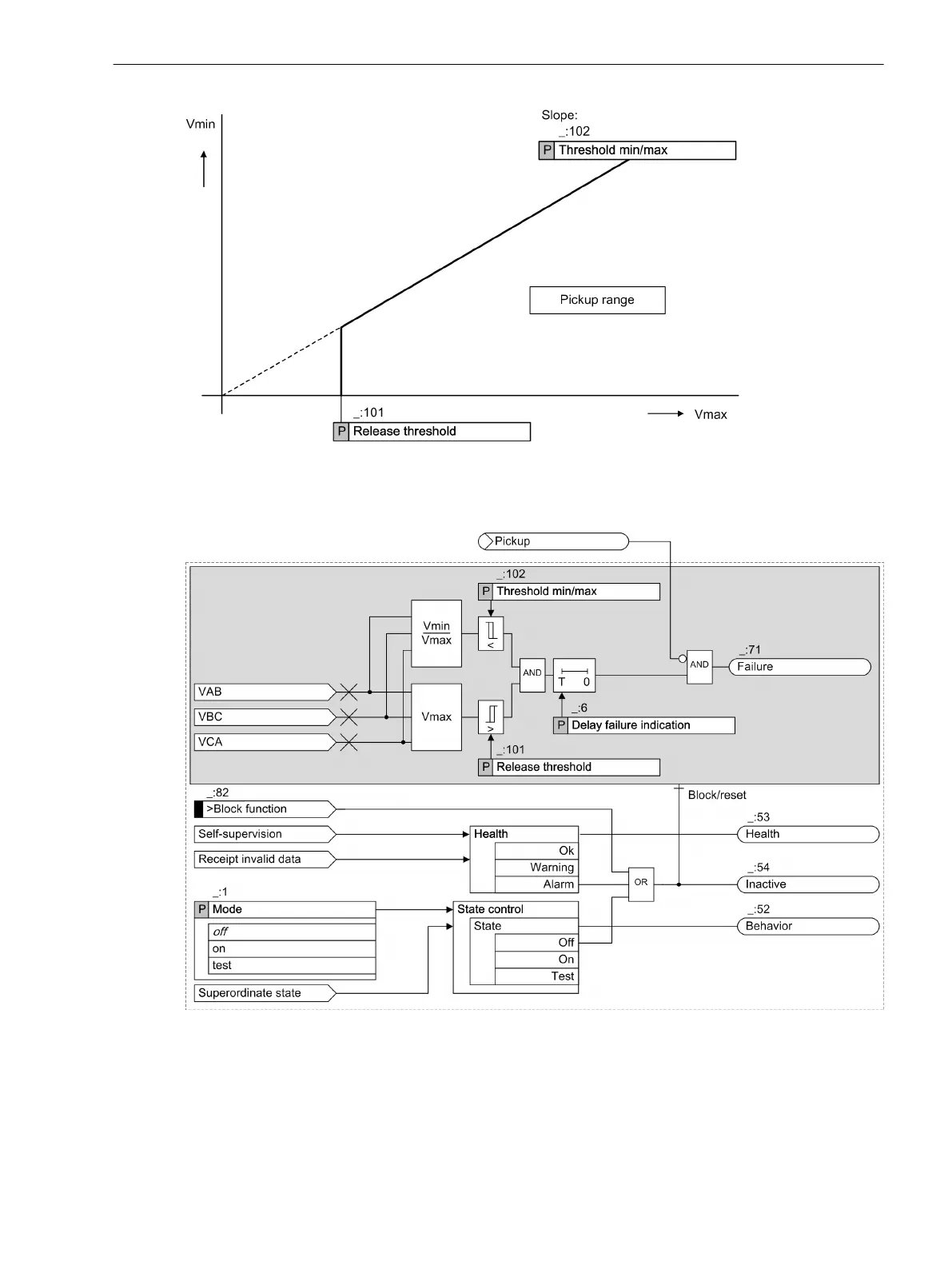

Figure 8-6 Characteristic of the Voltage-Balance Supervision
Logic
[lospasym-100611-01.tif, 4, en_US]
Figure 8-7
Logic Diagram of the Voltage-Balance Supervision
The Threshold min/max parameter is the criterion by which a phase-to-phase voltage unbalance is meas-
ured. The device calculates the ratio between the minimum (V
min
) and the maximum (V
max
) phase-to-phase
voltage.
Enter the lower limit of the maximum phase-to-phase voltage (V
max
) with the parameter Release
threshold. This specifies the lower limit of the operating range of this function.
Supervision Functions
8.3 Supervision of the Secondary System
SIPROTEC 5, Fault Recorder, Manual 373
C53000-G5040-C018-5, Edition 11.2017
