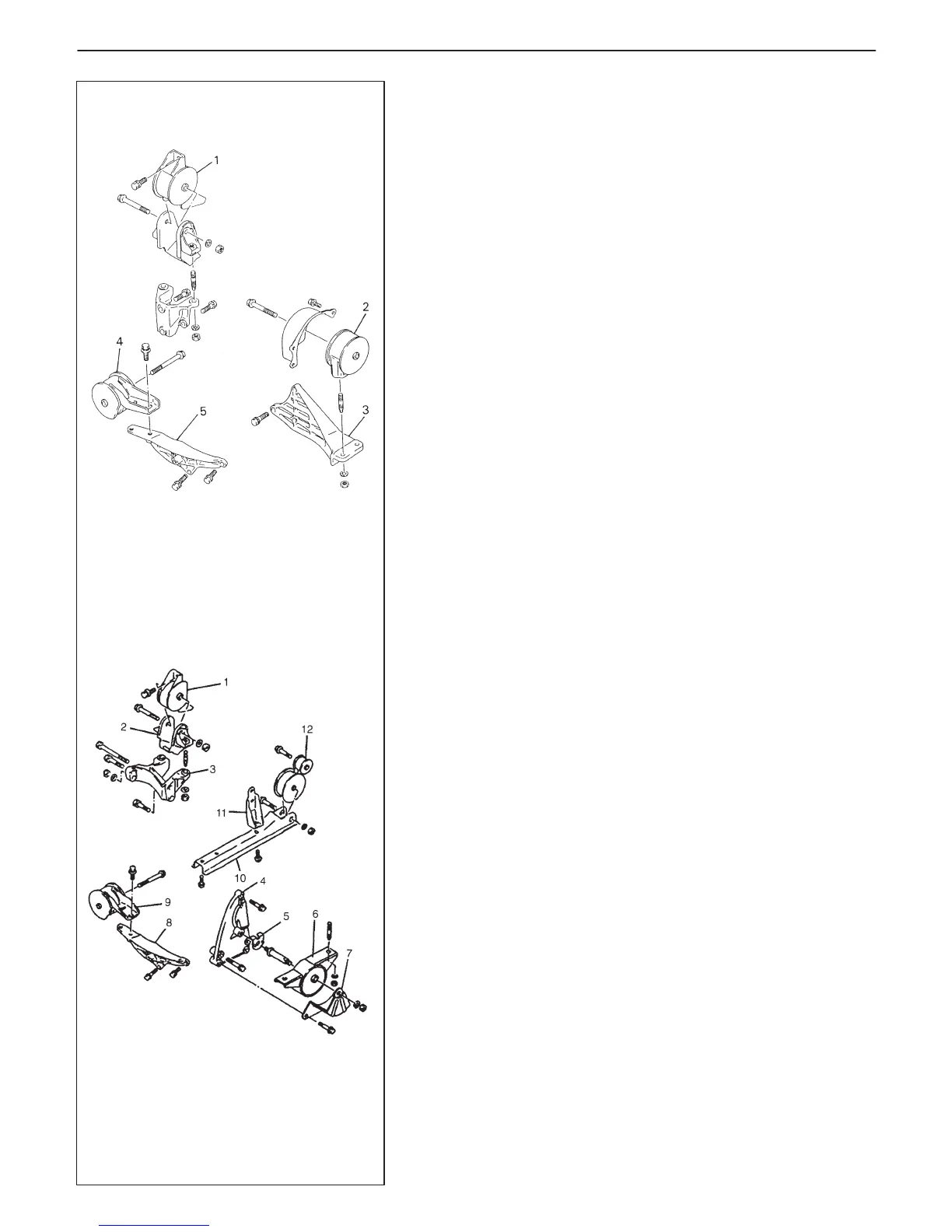

1. Rear mounting
2. Left mounting
3. Left mounting bracket
4. Right mounting
5. Right mounting bracket
For M/ T model
For A/ T model
1. Rear mounting
2. Rear mounting No.2
bracket
3. Rear mounting No.1
bracket
4. Left mounting No.1
bracket
5. Stopper
6. Left mounting
7. Left mounting No.2
bracket
8. Right mounting bracket
9. Right mounting
10. Torque rod bracket
11. Stiffener
12. Torque rod
ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-25
11) Disconnect the following cables.
D Accelerator cable from throttle body.
D Clutch cable from transmission. (For M/T model)
D Gear select cable and oil pressure control cable from trans-
mission. (For A/T model)
D Speedometer cable from transmission.
12) Hoist vehicle.
13) Remove fender apron extensions.
14) Remove exhaust pipe from exhaust manifold (or WU-TWC).
15) Remove gear shift control shaft from transmission and remove
extension rod. (For M/T model)
16) Drain engine oil and transmission oil.
17) Remove drive shaft joints from differential gears of transmis-
sion.
Refer to Section 4 (DRIVE SHAFT) for procedure to disconnect
drive shaft joints.
For engine and transmission removal, it is not necessary to re-
move drive shafts from steering knuckle.
18) Remove A/C compressor (if equipped) from compressor
bracket with hose still attached.
NOTE:
Suspend removed A/C compressor at a place where no
damage will be caused during removal/installation of en-
gine with transmission.
19) Remove engine rear torque rod bracket from transmission.
(For A/T model)
20) Lower vehicle.
21) Install lifting device.
22) Remove rear mounting from body.
23) Remove left side engine mounting and bracket. (For M/T mod-
el)
Remove left mounting from body. (For A/T model)
24) Remove right side engine mounting from its bracket.
25) Before removing engine with transmission, recheck to make
sure all hoses, electric wires and cables are disconnected from
engine and transmission.
26) Remove engine with transmission from body.
To Next Page
