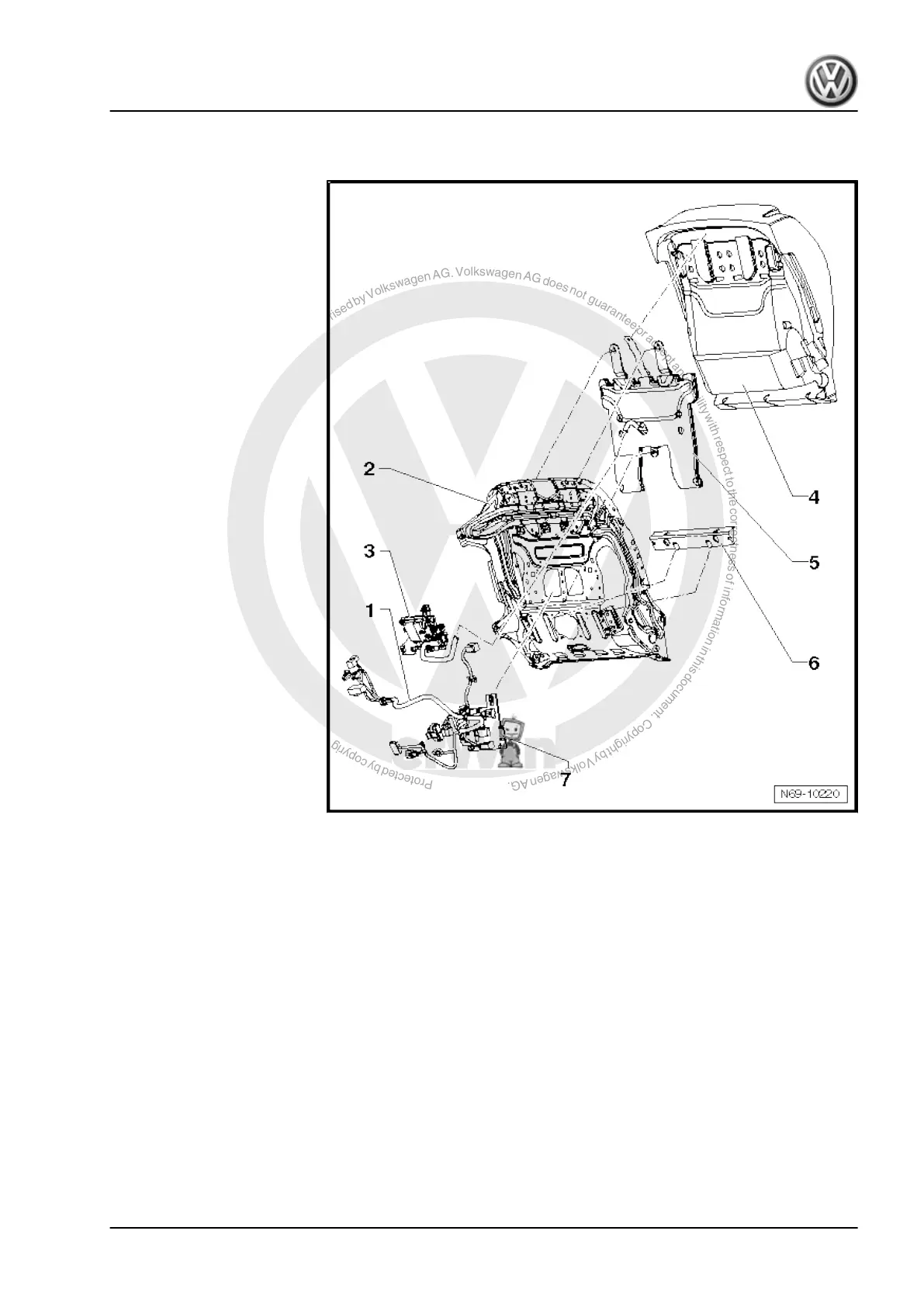

5.3 Assembly overview - seat occupancy detection (USA)
1 - Wiring harness for front seat
2 - Seat frame
3 - Seat occupied recognition
control unit -J706-
4 - Front seat cushion padding
❑ Must not be separated
from mat for seat occu‐
pied recognition
5 - Mat for seat occupied rec‐
ognition
❑ Must not be separated
from pressure hose and
padding for front seat
cushion
6 - Insert profile
❑ Observe installation po‐
sition.
7 - Bracket
❑ White
5.4 Components of repair kit for seat occupied recognition
If a component of the system is faulty it must be replaced using
repair kit. The repair kit is specially designed for the respective
vehicle and comprises the following components.
Golf 2004 ➤ , Golf 2009 ➤
General body repairs, interior - Edition 05.2010
5. Seat occupied recognition (USA) 155
