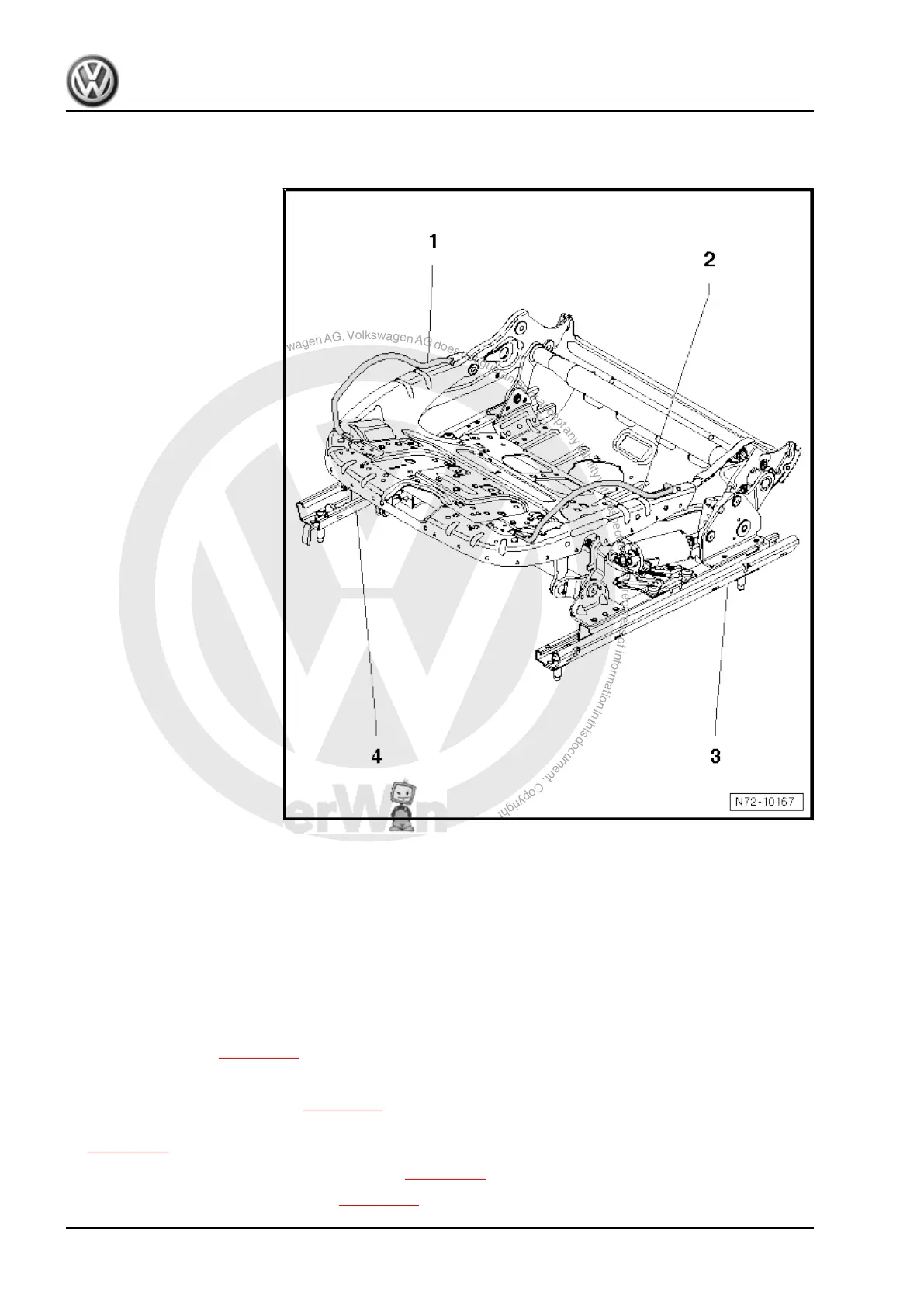

In order to prevent contamination, seat rails -3- and -4- must be
covered with a cloth when separating bars -1- and -2-!
1.29 Removing and installing seat (electric)
tilt angle adjustment
Removal and installation of the tilt angle adjustment is described
for the front left seat frame. Apply the same instructions for re‐
moval and installation on the front right seat frame as appropriate.
1.29.1 Removing
– Attach seat repair stand -VAS 6136- to engine and gearbox
support -VAS 6095- .
– Remove front seat ⇒ page 260 .
– Secure seat to seat repair stand -VAS 6136- .
– Remove right side trim on seat ⇒ page 276 .
– Remove left side trim on electrically adjustable seat
⇒ page 267 .
– Remove bar and operating lever for front seat ⇒ page 275 .
– Remove front seat drawer mounting ⇒ page 271 .
