Note
♦
Seat padding, mat for seat occupied recognition, control unit
and pressure sensor should only be renewed as one unit. The
components are adapted to each other and should not be
separated!
♦
Only the wiring harnesses described as follows should be
separated!
– Attach seat repair stand -VAS 6136- to engine and gearbox
support -VAS 6095- .
– Remove front seat ⇒ page 260 .
– Secure seat to seat repair stand -VAS 6136- .
– Remove front belt buckle:
♦ Two-door ⇒ page 98
♦ Four-door ⇒ page 100
– Remove right trim on seat ⇒ page 276 .
– Remove left trim on electrically adjustable seat ⇒ page 267 .
– Remove front seat drawer mounting, if part of original equip‐
ment ⇒ page 271 .
– Remove bar and operating lever for front seat ⇒ page 275 .

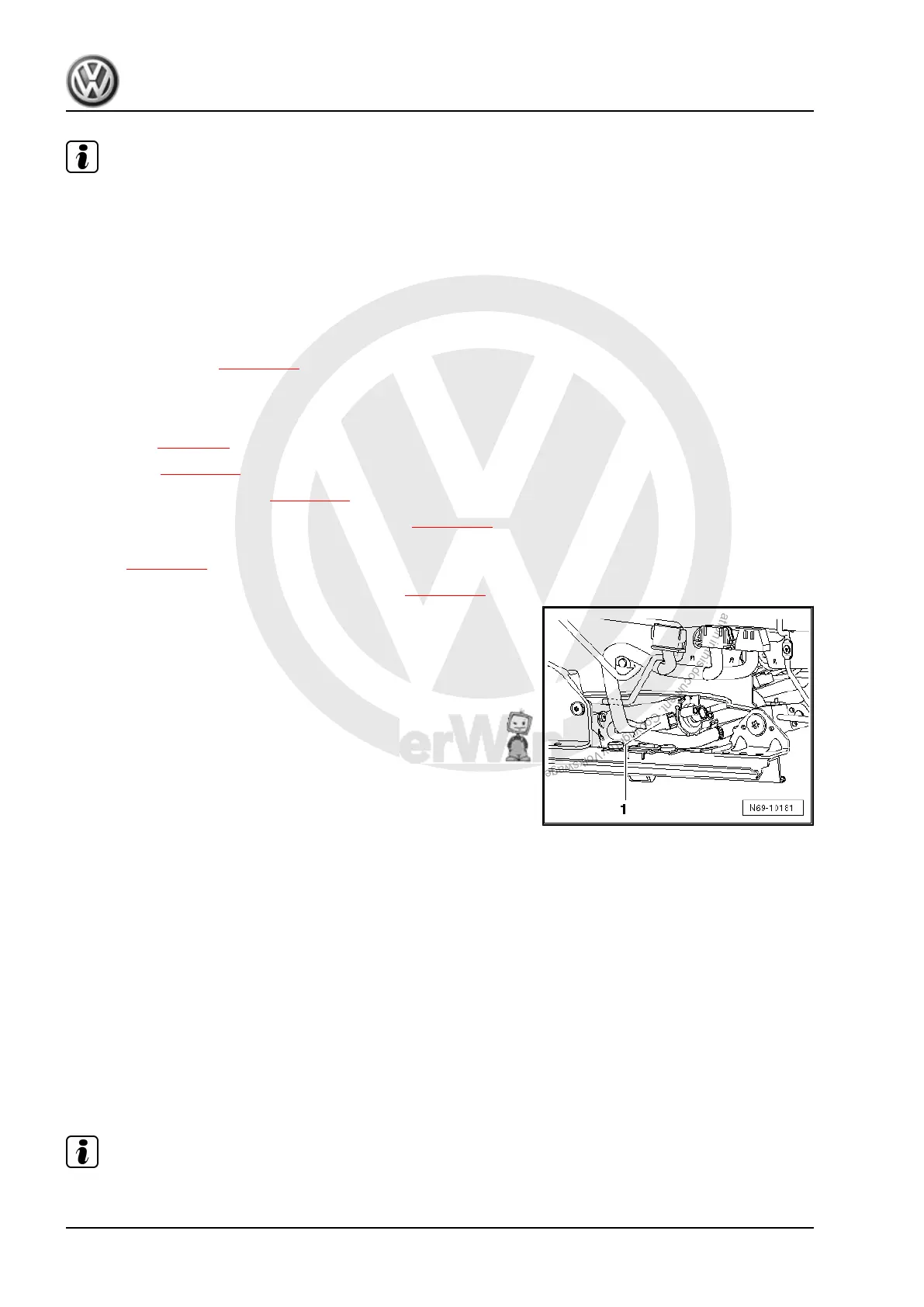

– Disconnect connector -1- for backrest adjustment motor.
– Disconnect connector -1- for seat adjustment motors.
– Remove cable retainers -2- and -3-.
– Disconnect connector -4- for backrest adjustment and remove
connector from seat frame.
– Remove cable retainer -5-.
– Disconnect connector -6- of heated front passenger seat con‐
trol unit -J132- , if part of original equipment.
– Remove retaining clip -7-, if fitted.
– Disconnect connector -8- for side airbag.
– Remove cable retainer -9-.
– Disconnect connector -10- for front seat backrest heating and
remove yellow connector, if fitted.
Note
Do not remove white retainer.
Golf 2004 ➤ , Golf 2009 ➤
General body repairs, interior - Edition 05.2010
166 Rep. Gr.69 - Passenger protection
