Note

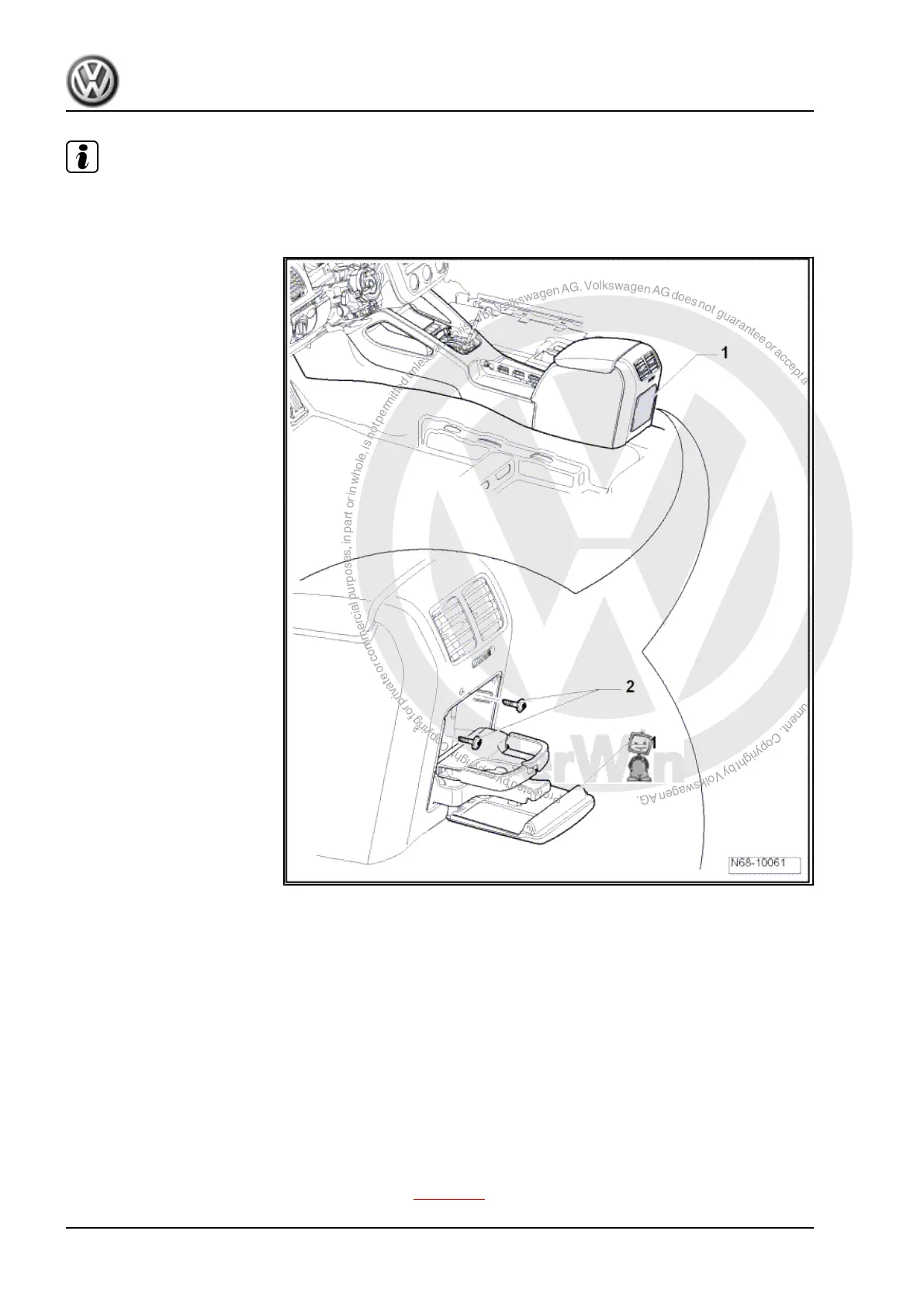

When installing, close cup holder and insert cup holder bottom first into centre console. Then open cup holder
and install the two bolts -2-.
2.8.2 Installing
– Install in reverse order of removal.
2.9 Repairing cup holder in centre console,
Highline
A loose cup holder or one that is falling apart does not necessarily
have to be replaced. It could possibly be repaired.
2.9.1 Checking for possible repair
Part renewal should only be carried out if repair is impossible,
because e.g. components are severely deformed, broken, broken
off or otherwise damaged and the flawless function of the cup
holder is therefore no longer guaranteed.
– Remove cup holder in centre console, Highline ⇒ page 43 .
Golf 2004 ➤ , Golf 2009 ➤
General body repairs, interior - Edition 05.2010
44 Rep. Gr.68 - Interior equipment
