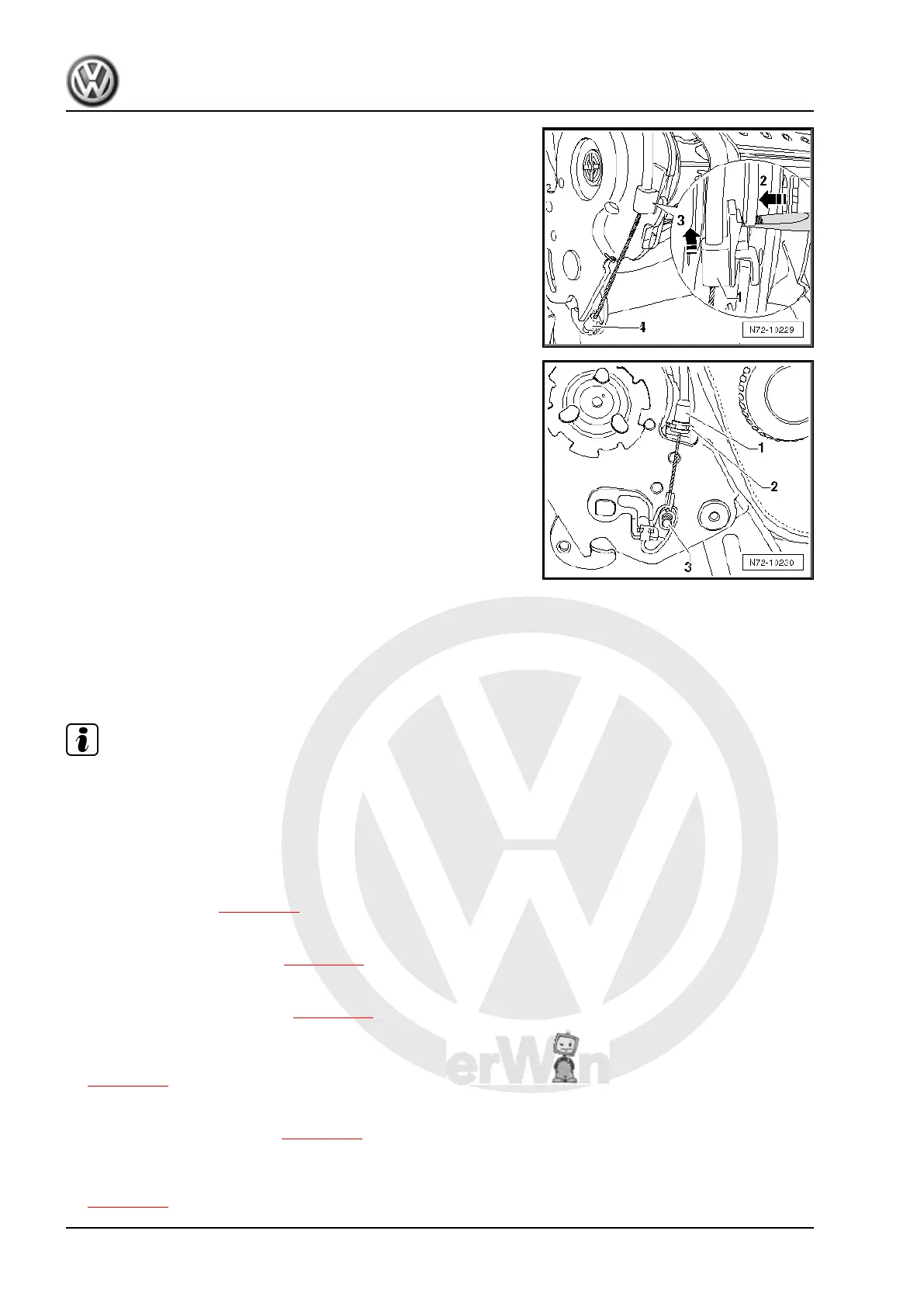

– Remove support -1- on left side of seat frame. Release re‐
taining tab in direction of -arrow 2- and remove support in
direction of -arrow 3-.
– Remove Bowden cable retaining clip -4- from seat frame.
– Unclip the Bowden cable from retainer on seat frame.
– Unclip support -1- from retainer -2- on right side.
– Slide Bowden cable downwards and remove it from retaining
pin -3-.
1.22.2 Installing
Installation is carried out in reverse order of removal.
1.23 Removing and installing backrest re‐
lease Bowden cable (2-door)
Note
Removal and installation is described for the left vehicle side.
Follow same instructions for the right side as appropriate.
1.23.1 Removing
– Attach seat repair stand -VAS 6136- to engine and gearbox
support -VAS 6095- .
– Remove front seat ⇒ page 260 .
– Secure seat to seat repair stand -VAS 6136- .
– Remove right front seat trim ⇒ page 276 .
Vehicles with manually adjustable seat
– Remove left side trim on seat ⇒ page 263 .
Vehicles with electrically adjustable seat
– Remove left side trim on electrically adjustable seat
⇒ page 267 .
All vehicles
– Remove front seat backrest ⇒ page 281 .
– Secure backrest to seat repair stand -VAS 6136- .
– Remove cover and padding from front seat backrest
⇒ page 315 .
Golf 2004 ➤ , Golf 2009 ➤
General body repairs, interior - Edition 05.2010
288 Rep. Gr.72 - Seat frames
