70 – Trim, insulation
1 Dash panel
1.1 Tools
1.1.1 Required special tools, workshop equip‐
ment, test and measuring devices and
auxiliary items

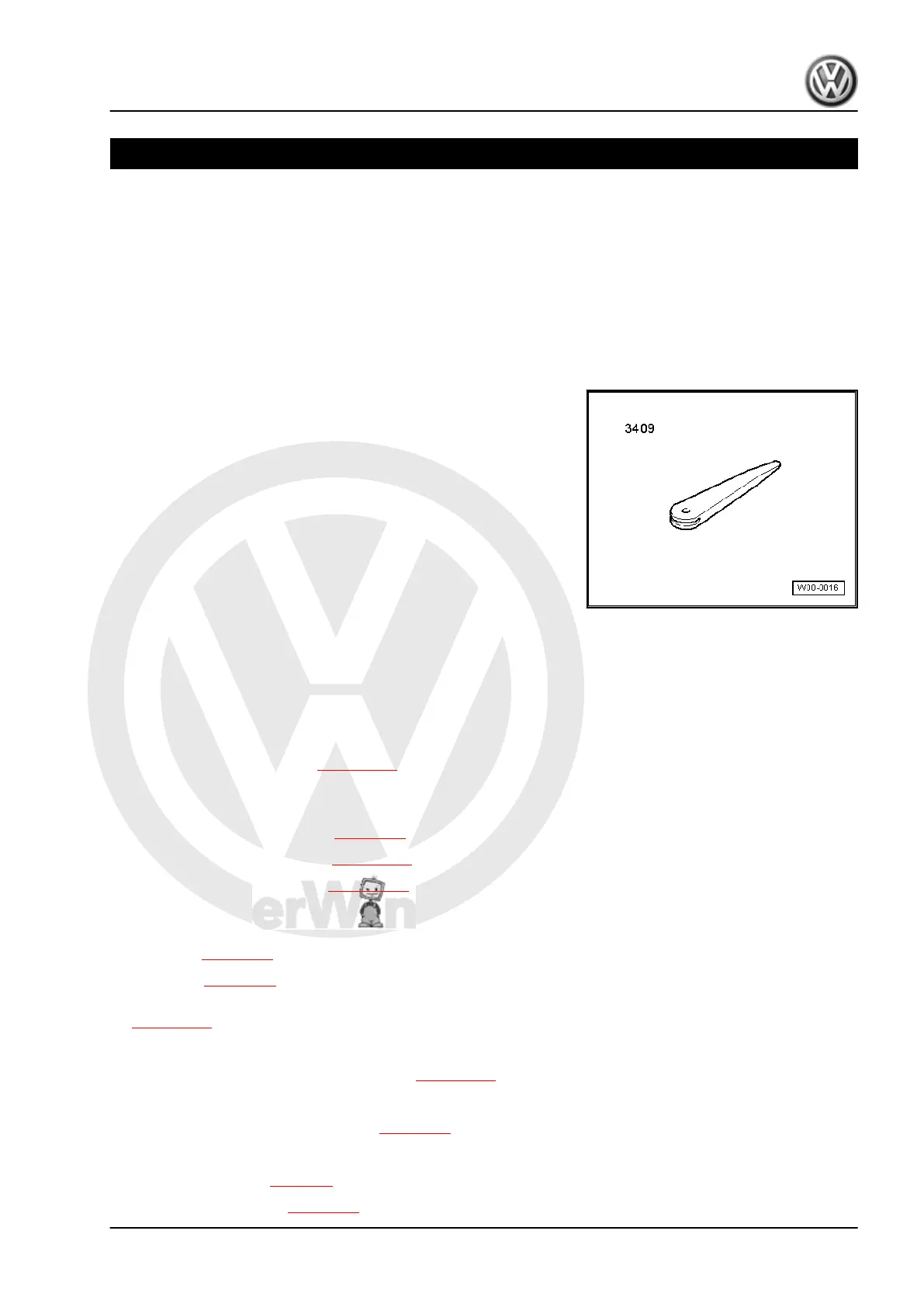

♦ Removal wedge -3409-
1.2 Removing and installing dash panel
1.2.1 Removing
– Disconnect vehicle battery ⇒ Electrical system; Rep. Gr. 27 ;
Disconnecting and reconnecting battery .
– Remove driver side airbag ⇒ page 120 .
– Remove steering wheel ⇒ Running gear, axles, steering; Rep.
Gr. 48 ; Removing and installing steering wheel .
– Remove dash panel end trim ⇒ page 60 .
– Remove A-pillar centre trims ⇒ page 224
– Remove upper A-pillar trims ⇒ page 223 .
– Release sill panel mouldings from body in transition to bottom
A-pillar trim:
♦ Two-door ⇒ page 81
♦ Four-door ⇒ page 82
– Remove lower A-pillar trim on front passenger side
⇒ page 227 .
– Remove bonnet release lever ⇒ Rep. Gr. 55
– Remove lower A-pillar trim on driver side ⇒ page 225 .
Golf 2004 ▸
– Remove centre cover (Golf 2004 ▸) ⇒ page 68
– Remove centre console:
♦ Basic (Golf 2004 ▸) ⇒ page 6
♦ Highline (Golf 2004 ▸) ⇒ page 15
Golf 2004 ➤ , Golf 2009 ➤
