Wacker Neuson 28Z3 Service Manual

3-56 SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm
Maintenance
Lubrication points on the boom and stick
☞ Apply grease to lubrication points 4 on the boom
☞ Apply grease to lubrication points 4 on the boom
☞ Apply grease to lubrication points 7 on the stick
☞ Apply grease to lubrication points 7 on the stick
Lubrication point on the joint rod
☞ Apply grease to lubrication point 8 on the joint rod

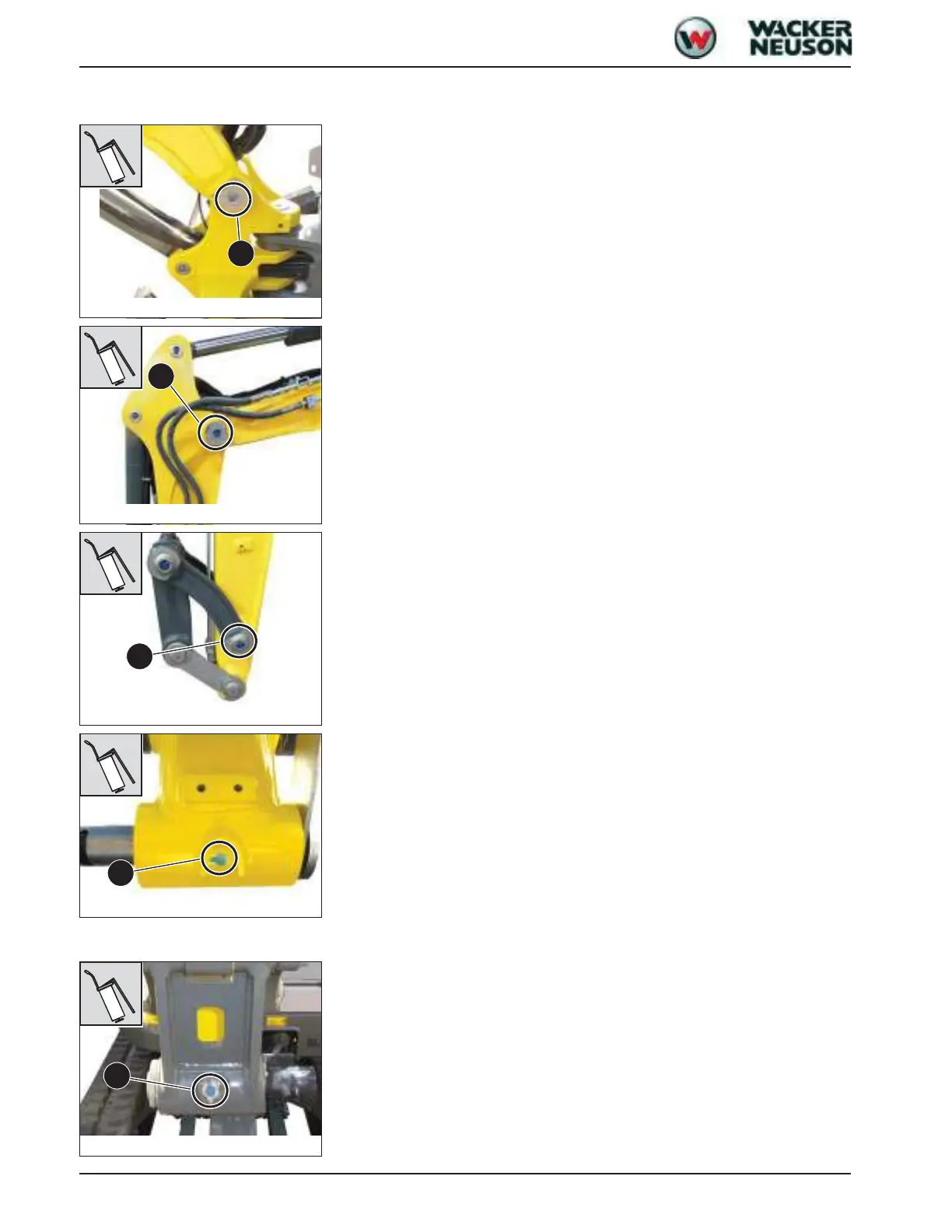

Fig. 74: Boom lubrication points
4
4
Fig. 75: Boom lubrication points
Fig. 76: Lubrication points on the stick
7
Fig. 77: Lubrication points on the stick
7
Fig. 78: Lubrication point on the joint rod
8
