PowerTilt PTS06
Making a tool VI for removing the seals
This tool is only a slightly modified standard screwdriver for flat-headed screws.
1 Heat the flat end with a gas burner until it starts to glow.
2 Secure the heated end of the screwdriver in a vice and bend slightly.
3 Polish the sharp edges of the heated point until it is round. The tool can be
modified as required.
Caution!
To prevent injury:
☞ Wait until the screwdriver has cooled fully.
8.3 Separating the bucket or equipment from the PowerTilt swivel device
1 Gently lower the bucket or equipment onto the ground and position it so that it can-
not move or tip over.
2 Remove the coupling pin.
3 Move the PowerTilt swivel device away from the bucket or equipment to separate
both elements. Use the bucket ram for assistance.
Caution!
When removing the bucket or equipment:
☞ Do not damage the PowerTilt hook!
8.4 Separating the PowerTilt swivel device from the machine
1 Carefully lower the PowerTilt swivel device to the ground.
2 Remove the necessary securing parts and pins from the bucket.
3 Remove the pivot pins.

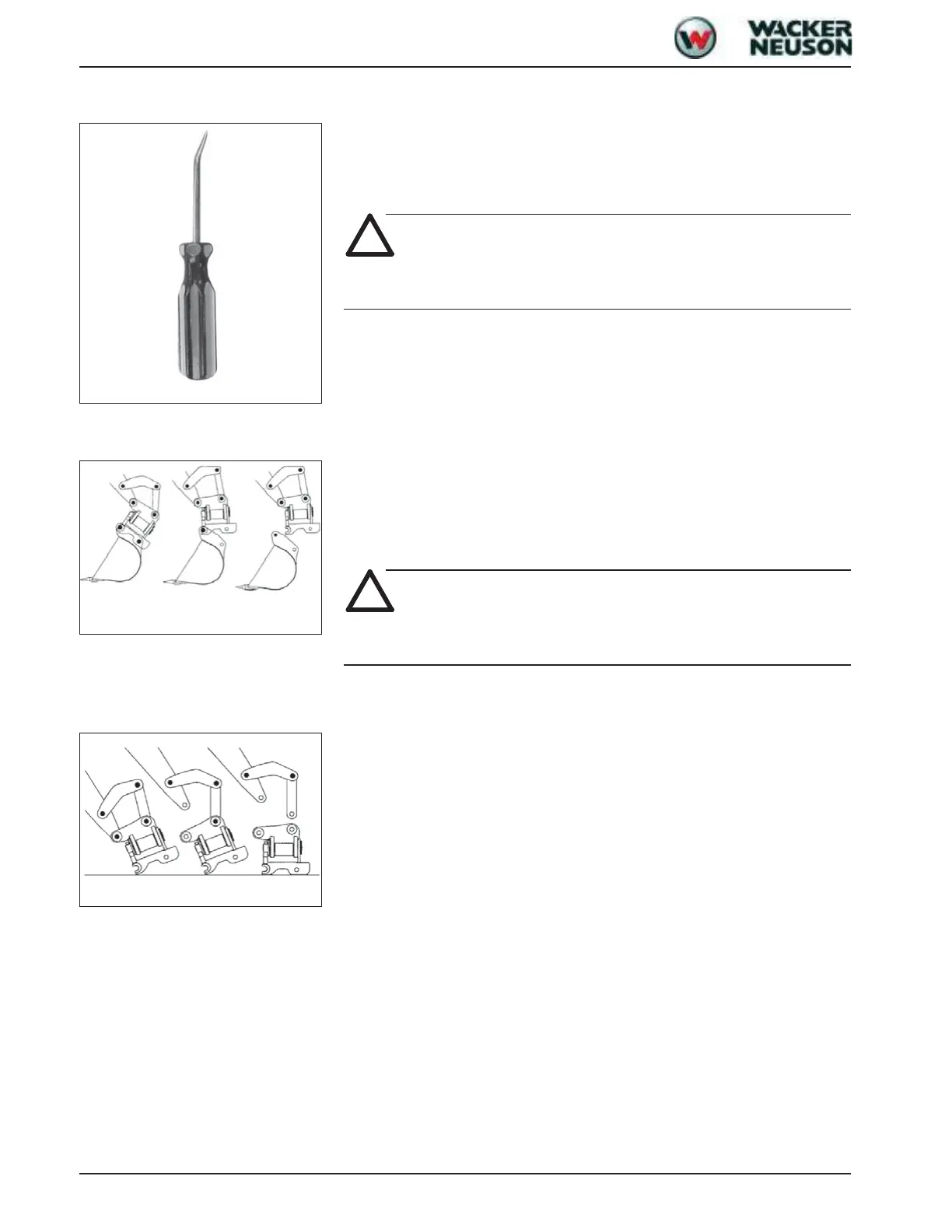

Fig. 1: Tool for removing seals
Fig. 2: Removing the bucket
1.
2. 3.
Fig. 3: Removing the PowerTilt
1. 2. 3.
