Wacker Neuson 28Z3 Service Manual

6-6 SHB 28Z3 EN – Edition 2.0 * 28z3s610.fm
Electrical system
6.10 Switches: overview

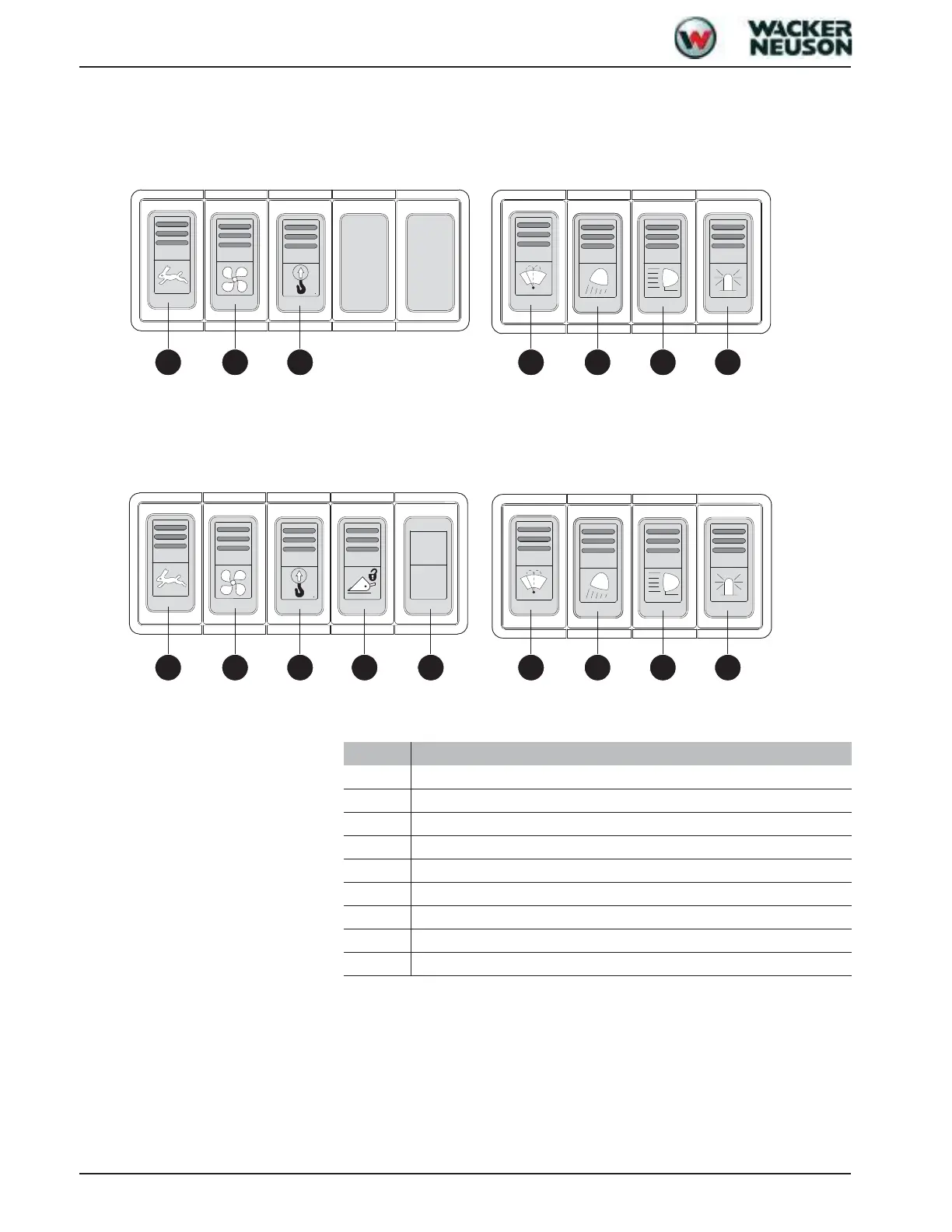

Switch legend
Control element on control console Control element on cab wall
Control elements for proportional controls version (option):
Control element on control console
Control element on cab wall
21 3 6 7 8 9
1 2 3 4 5 6 7 8 9
Pos.
Designation
1
High speed
2
Ventilation
3
Safe load indicator (option)
4
Hydraulic quickhitch switch (option)
5
Proportional controls status indicator (option)
6
Washer system
7
Working light
8
Roof lights (option)
9
Rotating beacon (option)
