SHB 28Z3 EN – Edition 2.0 * 28z3s510.fm 5-15
Hydraulic system

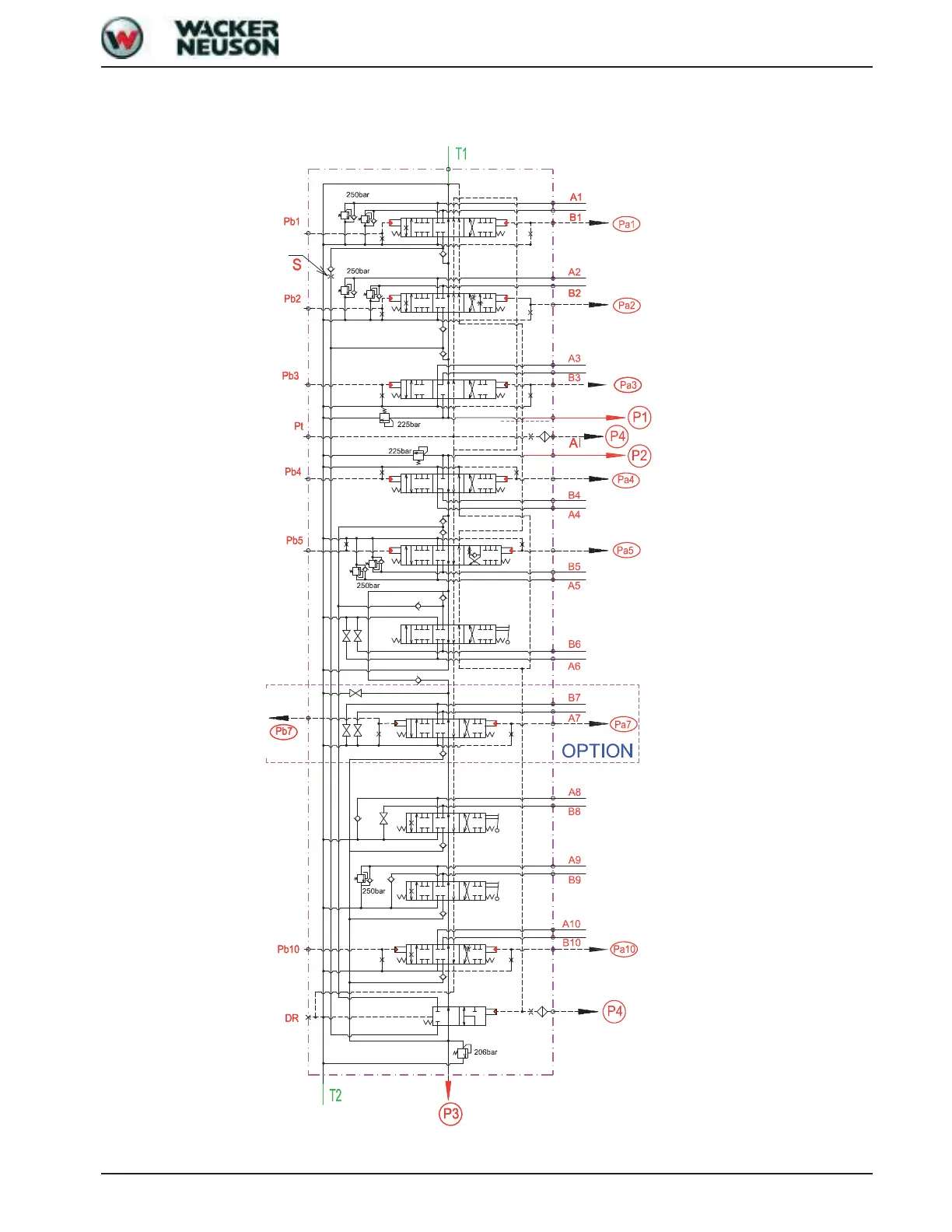

Main valve block diagram
Drive counterbalancing
system P3
Input P1
Input P2
Bucket
Boom
Right-hand drive
Left-hand drive
Stick
Auxiliary hydraulics
3rd control circuit
Stabiliser blade
Upper carriage
rotation
Boom swivel
