PowerTilt PTS06
8.18 Installing the internal decompression valve
☞ Tighten the internal decompression valve to 60 Nm (44 lbs/ft).
☞ Apply Loctite 242 XV to the plug thread and tighten the plug to 305 Nm (225 lbs/ft).
8.19 Installing the standard journal coupling
☞ Fit securing ring 5 again. Align the dead centre marks of the securing ring and the shaft.
Turn and tighten both screws on the securing ring. Fasten end cap 4 on shaft 2.
☞ Turn the shaft with a mounting lever until the mounting surface of base block 6.1 on the
drive-shaft side is horizontal.
☞ Remove threaded bolts IV.

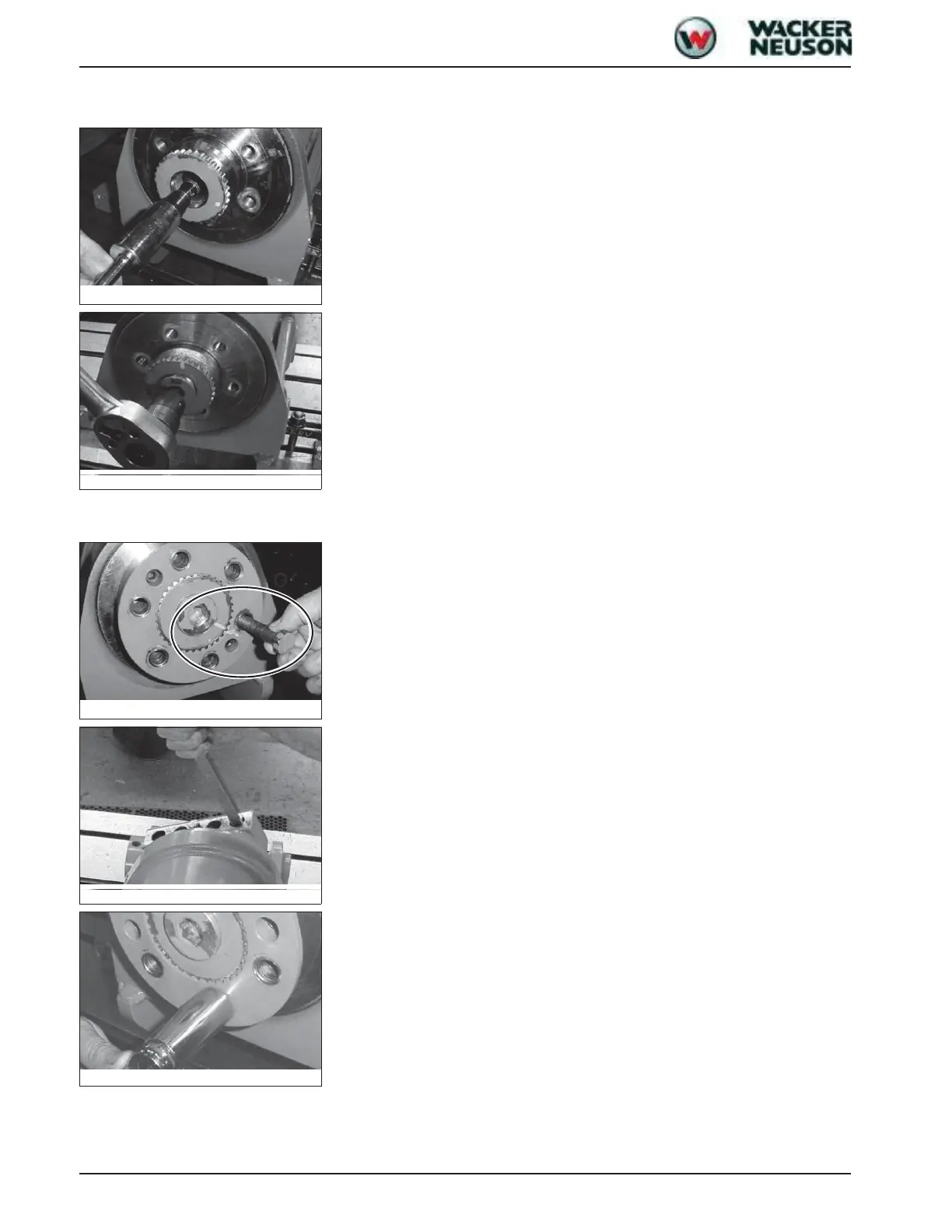

Fig. 61: Installing the internal decompression valve
Fig. 62: Installing the plug at the end of the shaft
Fig. 63: Installing the securing ring
Fig. 64: Aligning the base block
Fig. 65: Removing the bolts
