3-36 SHB 28Z3 EN – Edition 2.0 * 28z3s312.fm
Maintenance
Secondary pressure limiting valve of the gear motor
Check (at idling speed)
☞ Connect a pressure gauge to measuring port MP 3
☞ Place the bucket or the boom against the ground or the stabiliser blade, or drive against
hydraulic resistance
☞ Check and make a note of the pressure value.
Adjusting the secondary pressure limiting valve on the gear motor (at idling speed)
☞ Adjust the pressure at the secondary pressure limiting valve on the gear motor
☞ Slacken the locknut of the pressure limiting valve
☞ Unscrew the pressure limiting valve until you can read off a pressure drop on the
pressure gauge
➥ The valve seat may be stuck and must be slackened first
☞ Adjust the pressure limiting valve and tighten the locknut
☞ Check the secondary pressure limiting valve again once adjustment is over
Primary pressure limiting valves
1

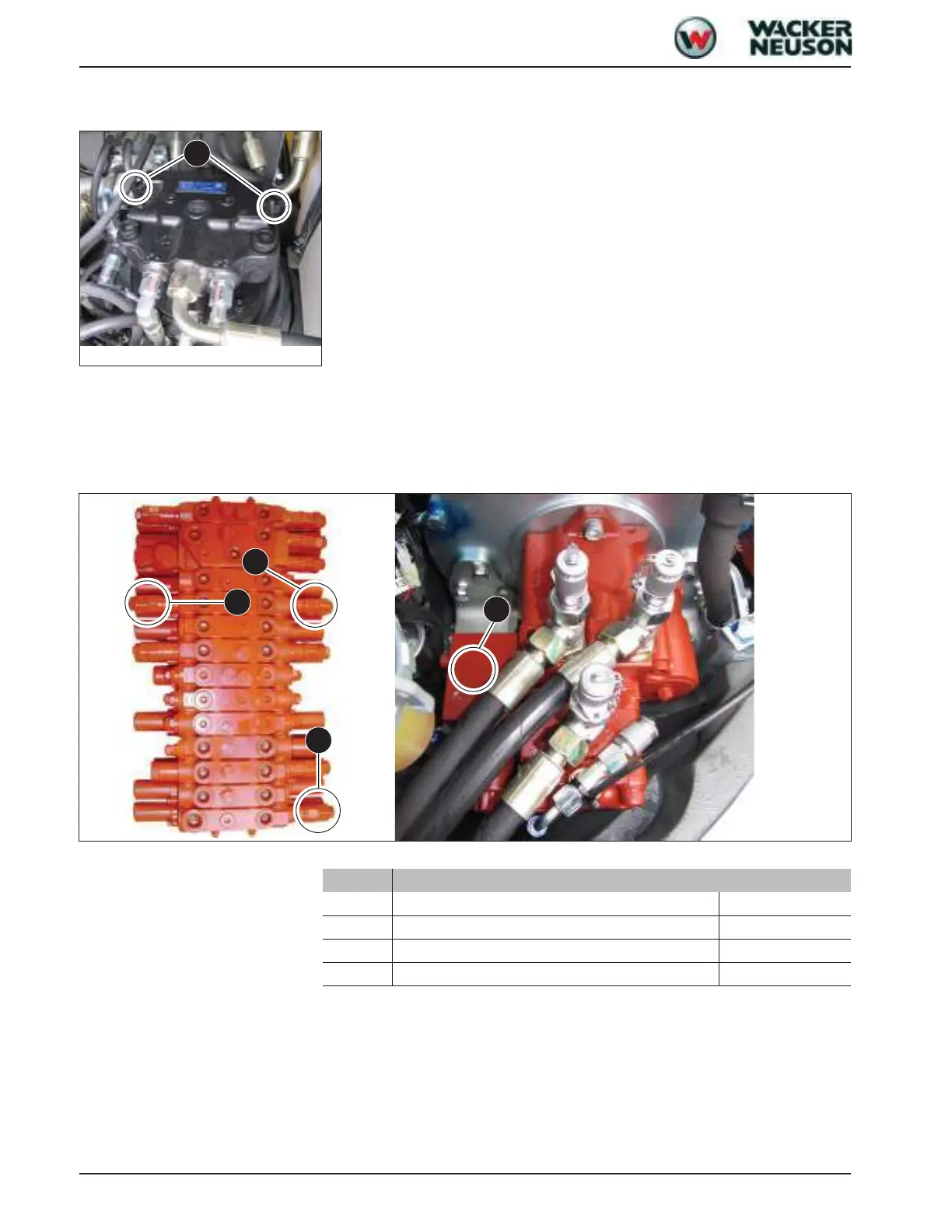

Fig. 46: Secondary pressure limiting valve
Pos.
Designation
1
Pump primary pressure limiting valve 1 PPLV 1
2
Pump primary pressure limiting valve 2 PPLV 2
3
Pump primary pressure limiting valve 3 PPLV 3
4
Pressure reducing valve of pilot oil supply unit PRV 4
3
4
1
2
