Wacker Neuson 28Z3 Service Manual

2-10 SHB 28Z3 EN – Edition 2.0 * 28z3s210.fm
Specifications

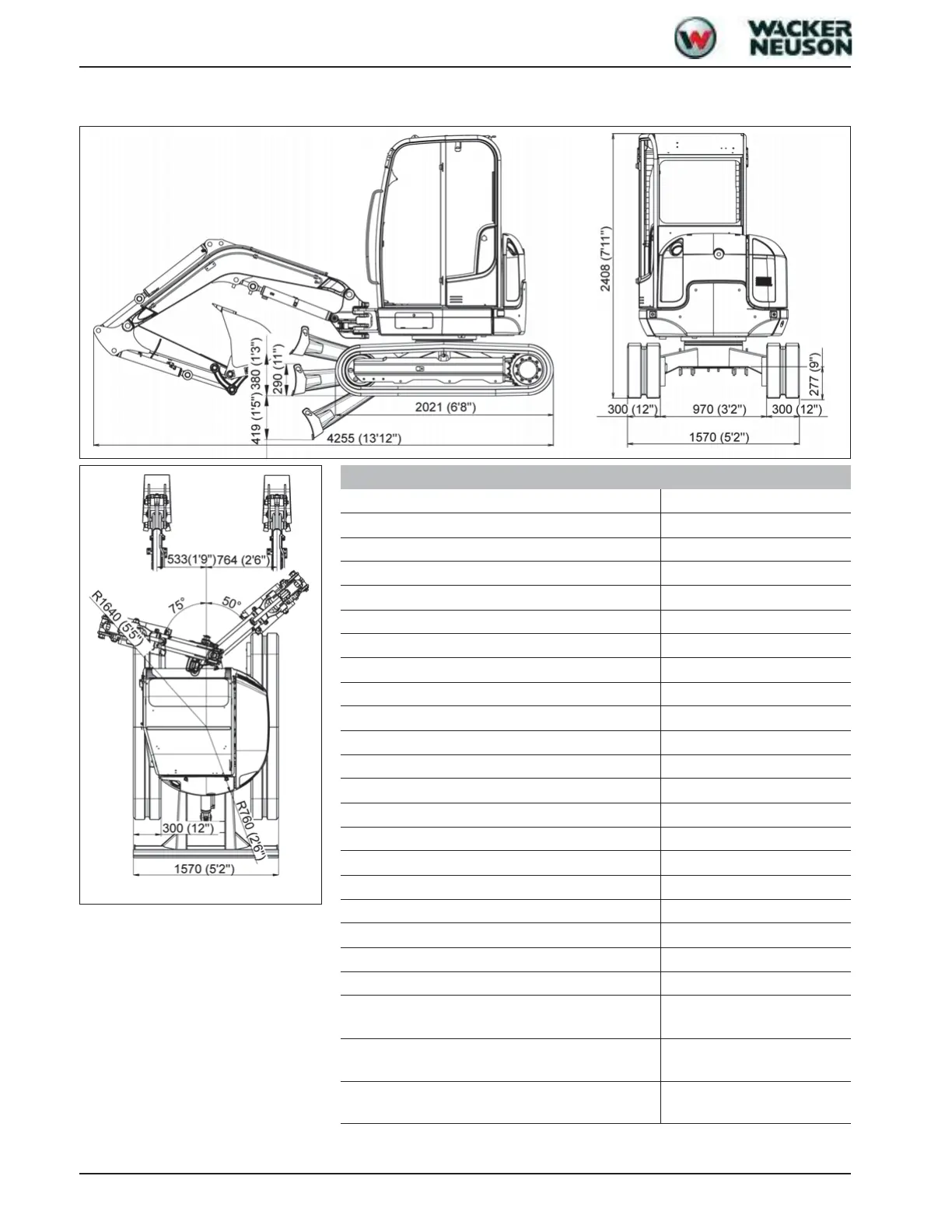

2.13 Dimensions model 28Z3
Fig. 1: Machine dimensions
Main data Model 28Z3
Service weight with cab/canopy 2830/2737 kg (6239/6034 lbs.)
Transport weight with cab/canopy 2670/2577 kg (5886/5681 lbs.)
Height 2408 mm (7'11”)
Width 1570 mm (5'2”)
Transport length (short/long stick) 4255 mm (13'12”)/4272 mm (14')
Max. digging depth (short/long stick) 2544 mm (8'4”)/2744 mm (9')
Standard stick length (short stick) 1050 mm (3'5”)
Long stick length (long stick) 1250 mm (4'1”)
Max. vertical digging depth (short/long stick) 1962 mm (6'5”)/2152 mm (7'1”)
Max. digging height (short stick) 4170 mm (13'8”)
Max. digging height (long stick) 4300 mm (14'1”)
Max. dump height (short stick) 2840 mm (9'4”)
Max. dump height (long stick) 2970 mm (9'9”)
Max. digging radius (short stick) 4613 mm (15'2”)
Max. digging radius (long stick) 4805 mm (15'9”)
Max. reach at ground level (short stick) 4481 mm (14'8”)
Max. reach at ground level (long stick) 4681 mm (15'4”)
Max. breakout force at bucket tooth 22.5 kN (5058 lbs/ft)
Max. tearout force (short stick) 13.6 kN (3057 lbs/ft)
Max. tearout force (long stick) 21.9 kN (4923 lbs/ft)
Min. tail end slewing radius 760 mm (2'6”)
Max. tail end lateral projection (90° rotation of upper car-
riage)
0 mm (0'0”)
Max. boom displacement to bucket centre (right-hand
side)
533 mm (1'9”)
Max. boom displacement to bucket centre (left-hand
side)
764 mm (2'6”)
