SHB 28Z3 EN – Edition 2.0 * 28z3s510.fm
5-5
Hydraulic system

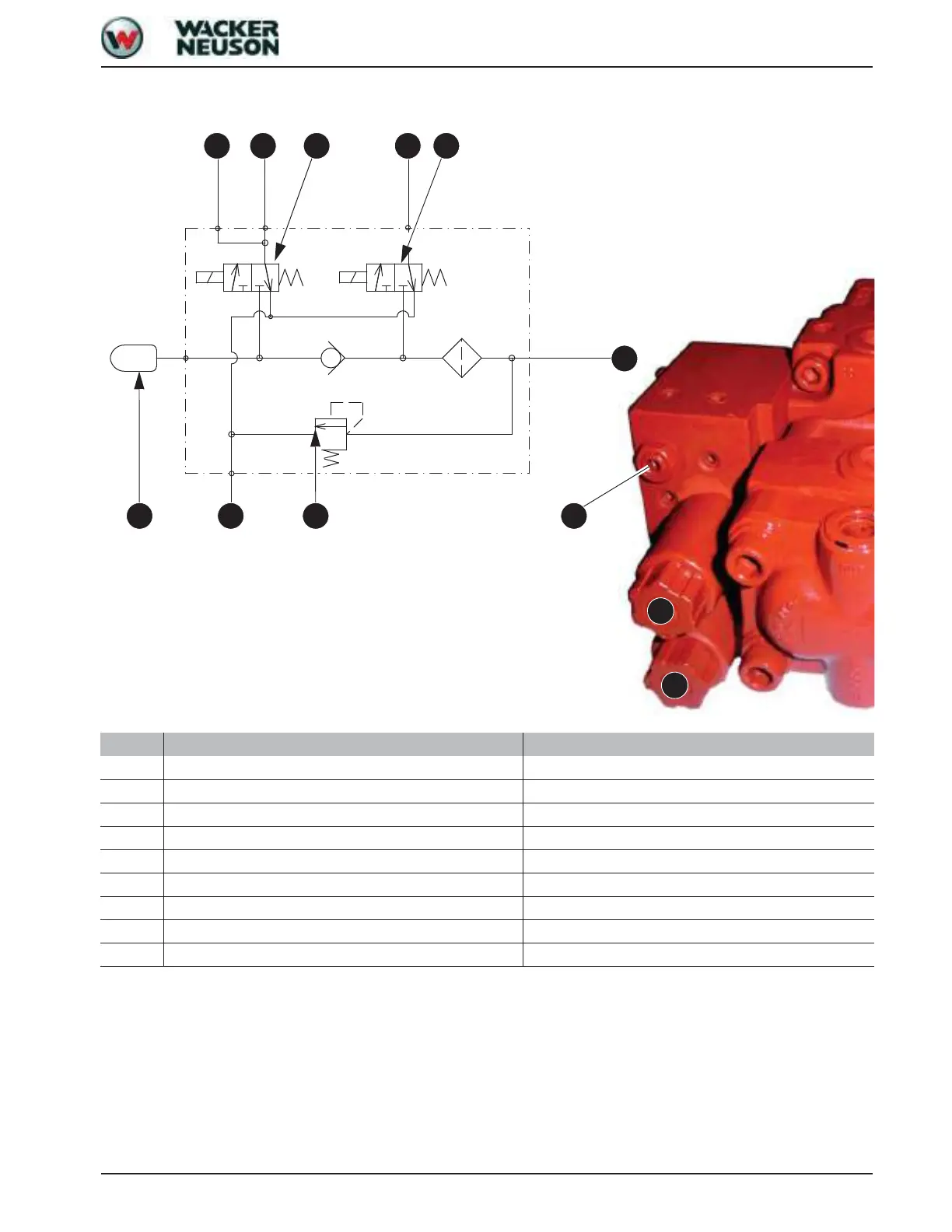

Pilot oil supply unit

BAR

BAR
2
1
4
9
6
8
3
5
7
5
7
Both valves can be interchanged
3
30 bar
Pos.
Designation
Port
1
Gear motor supply
PB1
2
Pilot valve supply
PB2
3
Solenoid valve for safety valve
4
Drives/2nd speed range supply
PA
5
2nd speed range solenoid valve
6
Pump 4 supply
Internal to P4
7
Pressure reducing valve
8
Tank line
9
Accumulator
136
138
