Wacker Neuson 28Z3 Service Manual

8-18 SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm
PowerTilt PTS06
Installing the end-cap seals and bearings
☞ In order to install the end-cap seals and bearings according to the order indicated in the
following, place end cap 4 on a table so that the inside shows upwards. Before
installing, bear in mind the orientation of the seals in the technical drawings.
☞ Install the outer seal.
☞ Apply a little lithium grease to either side of pressure disc B5, and place the pressure
disc on the pressure surfaces of end cap 4.
☞ Install the first pressure seal A9 with the lip showing inside.
☞ Wear indicator B2 in the wide groove of the end cap.
☞ Place O-ring A1 and additional ring A2 in the groove of the inside seal on the end cap.

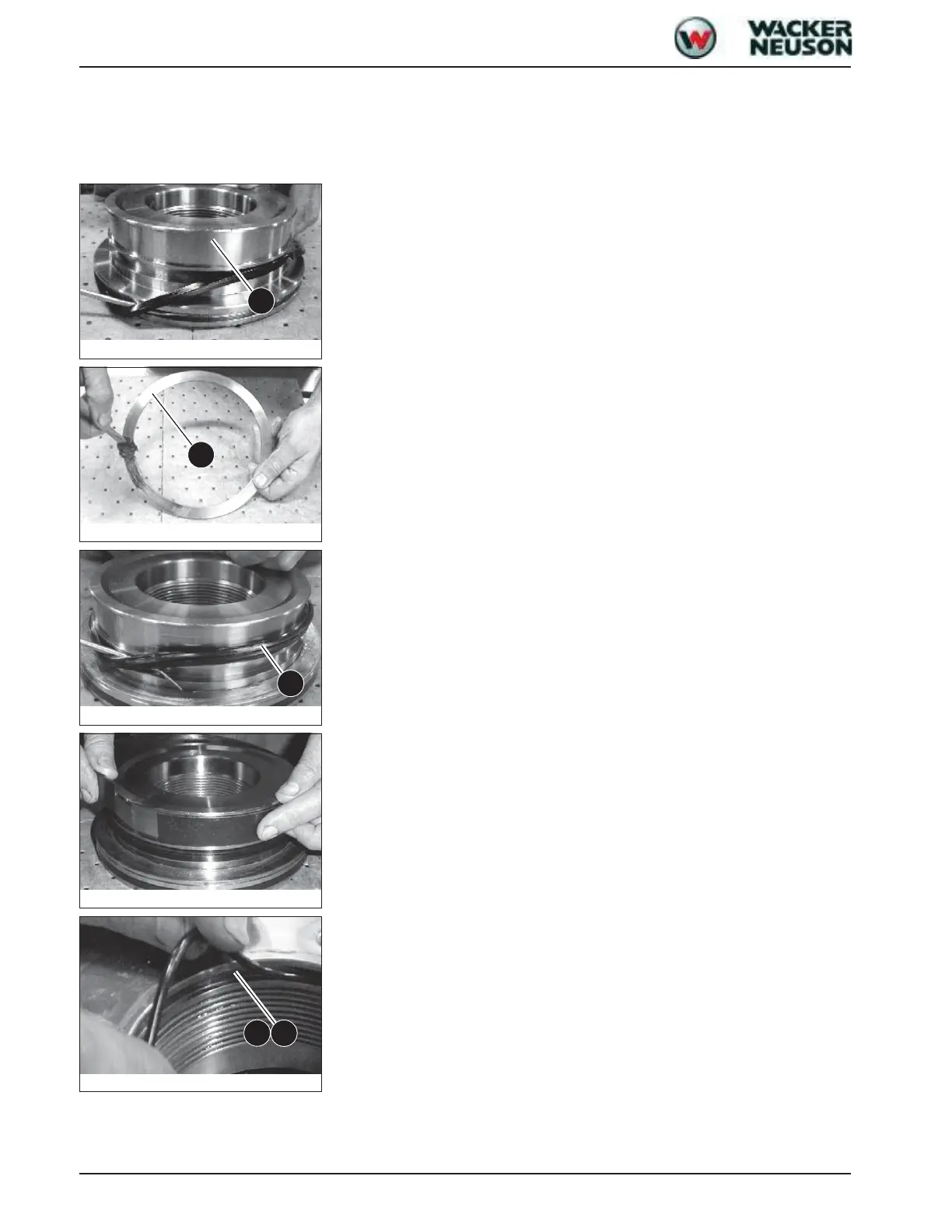

Fig. 33: End cap of outer seal
4
Fig. 34: Coat the seals and surfaces with oil
B5
Fig. 35: Coat the seals and surfaces with oil
A9
Fig. 36: Coat the seals and surfaces with oil
Fig. 37: Coat the seals and surfaces with oil
A1
A2
