Options
7.10 Mechanical quickhitch
Danger!
The attachment must always be safely locked onto the quickhitch –
Danger of accidents!
☞ Before starting work, ensure that the attachment is securely locked onto the
quickhitch by means of the lock mechanism. You must be able to see the
lock on either side of the mounting bore of the attachment.
☞ Re-equip as follows:
• Approach the machine to the attachment
• Pick up the bucket with coupling bar M and coupling claws L of the quickhitch
• Engage lock mechanism N into mounting bore O
• Place the bucket on level ground
☞ Lock as follows:
• Stop the engine
• Insert tube P (included in scope of delivery) in clamping sleeve Q
• Press the tube downwards
• The lock pins must be in position R
☞ Unlock as follows:
• Stop the engine
• Insert tube P (included in scope of delivery) in clamping sleeve Q
• Press the tube upwards
• The lock pins must be in position S

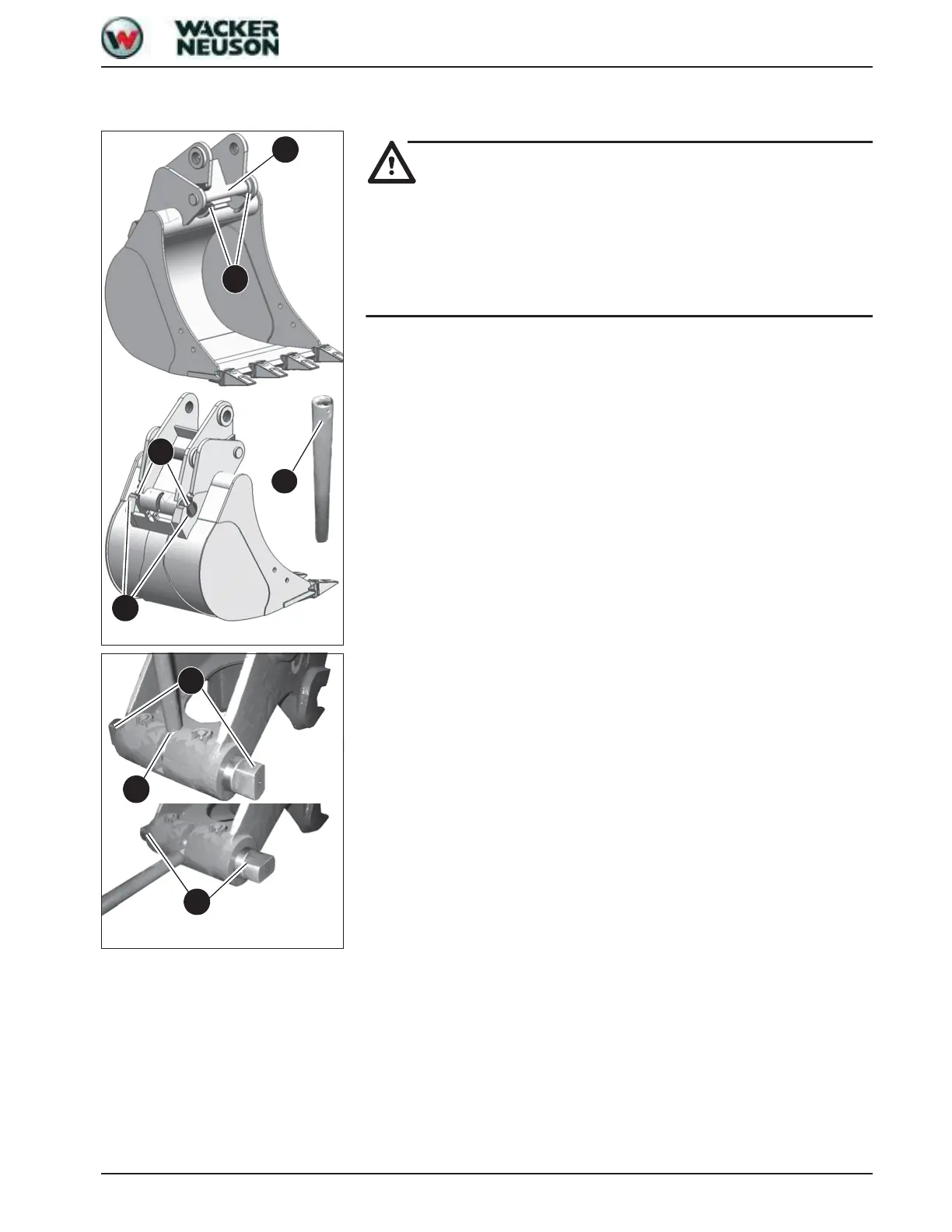

Fig. 8: Bucket with quickhitch
L
M
N
P
O
Fig. 9: Bucket with quickhitch
Q
S
R
