Specifications
2.16 Lift capacity table 28Z3 long stick (option)
All table indications in kg (lbs.) and horizontal position on firm ground without bucket.
If equipped with a bucket or other attachments, lift capacity or tilt load is reduced by bucket
or attachment dead weight.
Calculation basis: according to ISO 10567
The machine's lift capacity is restricted by the settings of the pressure limiting valves and
the hydraulic system's stabilising features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is exceeded.
3.5 m (11.5 ft) 3.0 m (9.8 ft) 2.5 m (8.2 ft)
A
B
Lowered blade Lowered blade Lowered blade Lowered blade
3.0 m
(9.8 ft)
458*
(1009*)
339
(747)
423*
(933*)
423*
(933*)
2.0 m
(6.6 ft)
447*
(985*)
253
(558)
450*
(993*)
320
(705)
473*
(1044*)
417
(919)
1.0 m
(3.3 ft)
453*
(1000*)
226
(499)
526*
(1161*)
299
(659)
625*
(1378*)
380
(837)
811*
(1788*)
499
(1101)
0.0 m
(0.0 ft)
465*
(1026*)
232
(512)
575*
(1269*)
282
(621)
720*
(1588*)
352
(776)
960*
(2116*)
458
(1009)
-1.0 m
(-3.3 ft)
468*
(1033*)
284
(626)
646*
(1425*)
349
(769)
852*
(1879*)
455
(1004)

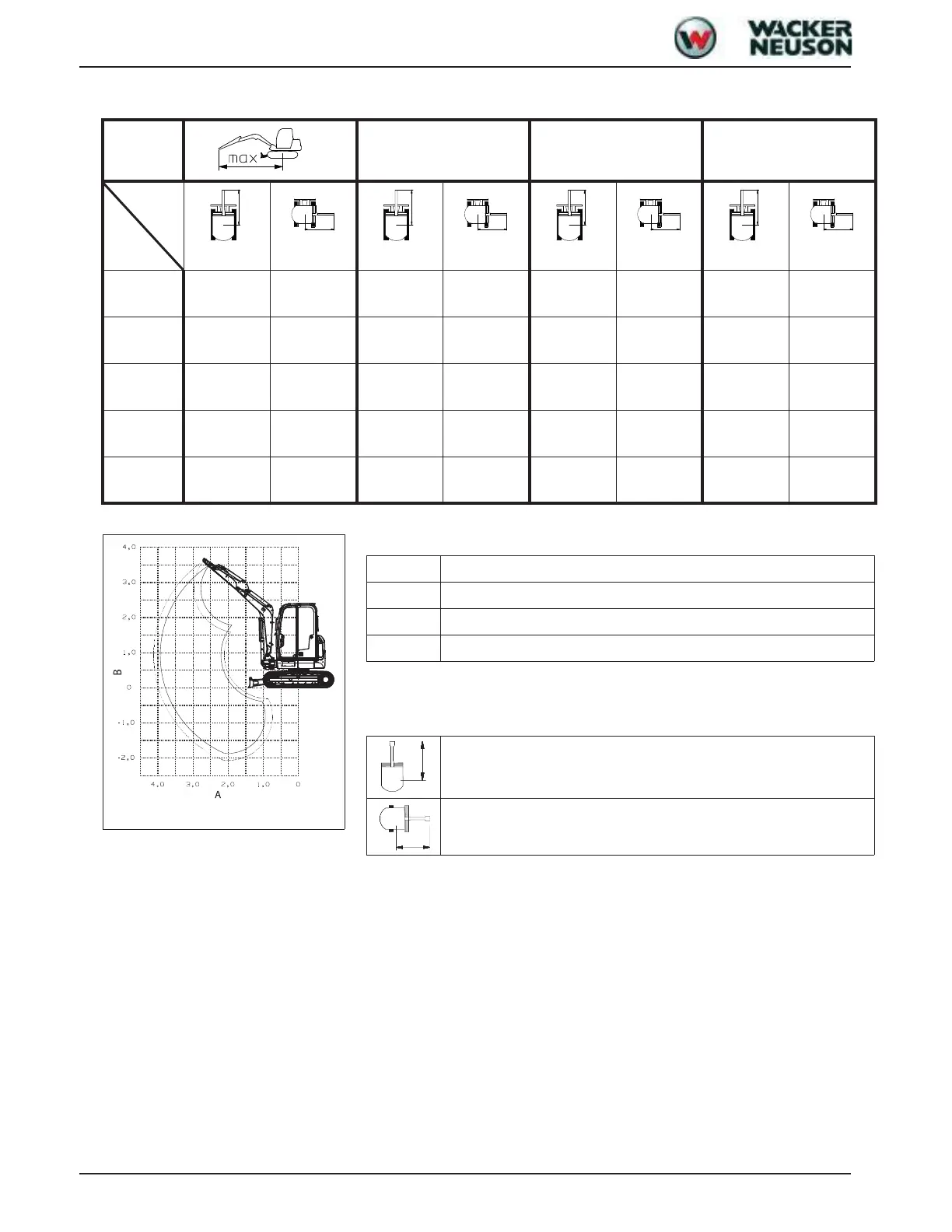

Fig. 4: Lift capacity table (model 28Z3)
max Admissible load on extended stick
A Reach from live ring centre
B Load hook height
* Lift capacity limited by hydraulic system
With the stabiliser blade in driving direction
Without the stabiliser blade, 90° to driving direction
