SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm 8-23
PowerTilt PTS06
8.17 Installing the end cap and the securing ring
☞ Screw on end cap 4 using assembly paste.
☞ Screw in threaded bolts IV and tighten end cap 4 by means of a mounting lever until
pressure disc B5 touches housing collar 1.
☞ Remove both bolts and tighten end cap 4 with a torque wrench and an appropriate tool.
Notice!
When installing securing ring 5, ensure that the teeth of the securing ring and the
openings of end cap 4 have the best possible alignment by trying out different
positions. If the openings cannot be aligned, turn the end cap by a maximum one
tooth to align it with the openings.
☞ Before removing the securing ring, mark the orientation of the teeth of the securing ring
and the shaft.

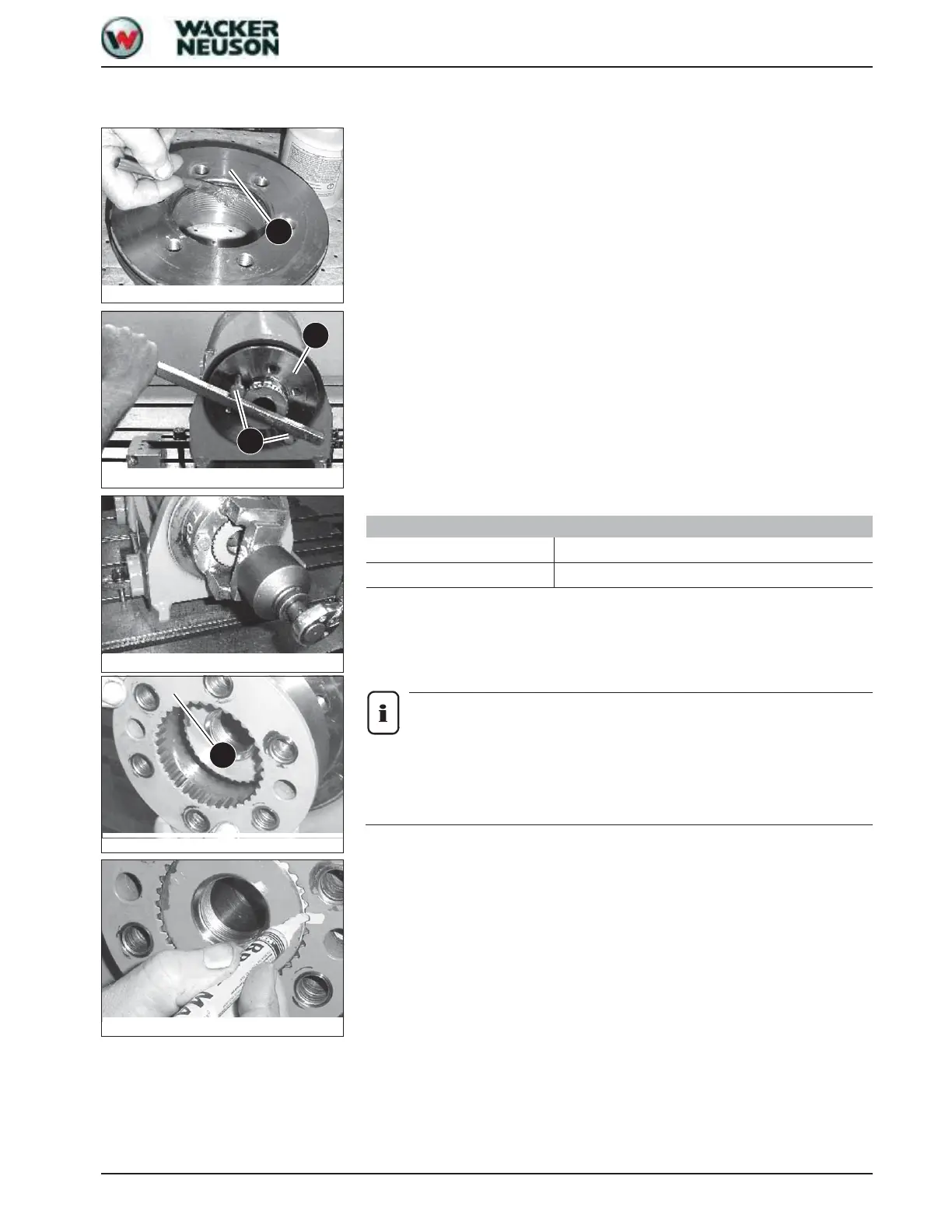

Fig. 56: Assembly paste on the end cap
4
Fig. 57: Installing the end cap with a mounting lever
IV
4
Fig. 58: Securing the end cap
Torque values of end cap
Model Torque values Nm (lbs/ft)
PTS06 475 – 680 (350 – 502)
Fig. 59: Installing the securing ring
5
Fig. 60: Mark on shaft and securing ring
