Maintenance
☞ Drive and stop the machine over a pit.
☞ The lubrication point is located on the lower side of the undercarriage.
☞ Remove cover A by means of six screws B on the lower side.
☞ Apply grease to lubrication point 12 with five strokes of the grease gun.
☞ Remove ejected grease.
☞ Install the cover.
Lubrication point of VDS live ring teeth
☞ Drive and stop the machine over a pit.
☞ The lubrication point is located on the right-hand side of the undercarriage.
☞ Apply grease to lubrication point 13 with five strokes of the grease gun.
☞ Remove ejected grease.
☞ Turn the machine 90° at a time and apply grease to lubrication point 13 with five
strokes of the grease gun in the following three positions.
☞ Remove ejected grease.
☞ Turn the machine 360° twice.

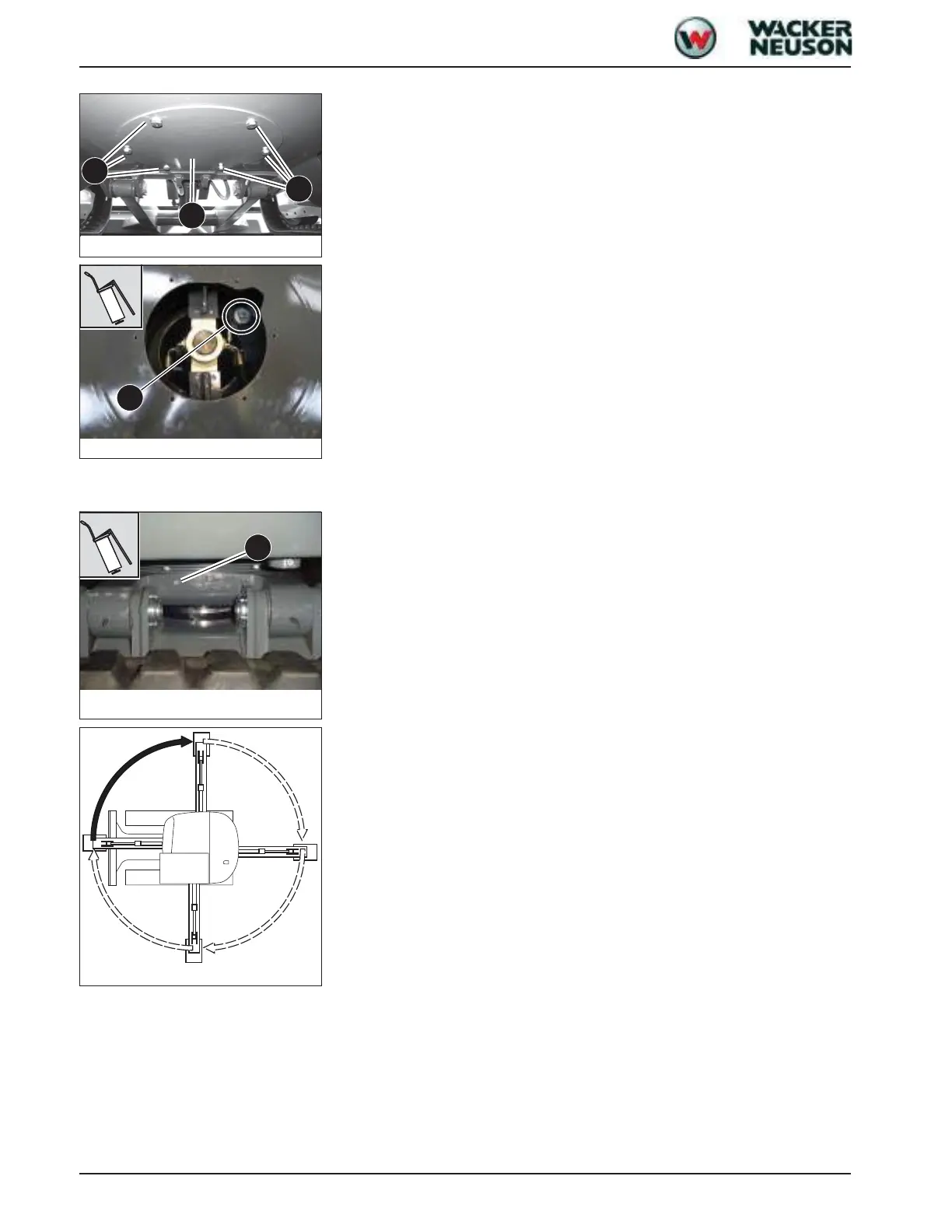

Fig. 81: Remove the cover
A
B
B
Fig. 82: Lubrication point on teeth
12
Fig. 83: Lubrication point of VDS live ring teeth
13
Fig. 84: Turn the machine 90° at a time
