Pressure check of variable displacement pump P1
Hydraulic supply for boom, bucket and right-hand side drive functions
Checking primary pressure limiting valve 1 (PPLV 1)
☞ Connect a pressure gauge to measuring port MP 1 40/1
☞ Retract the boom ram or the bucket ram as far as it will go at maximum
engine speed
☞ Check and make a note of the pressure value.
Checking pressure drop
☞ Retract the boom ram or the bucket ram as far as it will go at maximum engine speed
☞ Swiftly reduce engine speed from maximum to minimum -> pressure drop
☞ Check and make a note of the pressure value.
➥ Pressure drop should not be more than 10 % of the specified value
Setting primary pressure limiting valve 1 (PPLV 1)
☞ Adjust the pressure at the primary pressure limiting valve (PPLV 1) 41/A on the main
valve block
☞ Slacken the locknut of the pressure limiting valve
☞ Unscrew the pressure limiting valve until you can read off a pressure drop on the
pressure gauge
➥ The valve seat may be stuck and must be slackened first
☞ Adjust the pressure limiting valve and tighten the locknut
☞ Check the primary pressure limiting valve 1 and the pressure drop once adjustment is
over
Also check with the extend boom, the extend/retract bucket and with the right-hand
side forwards/reverse drive functions!

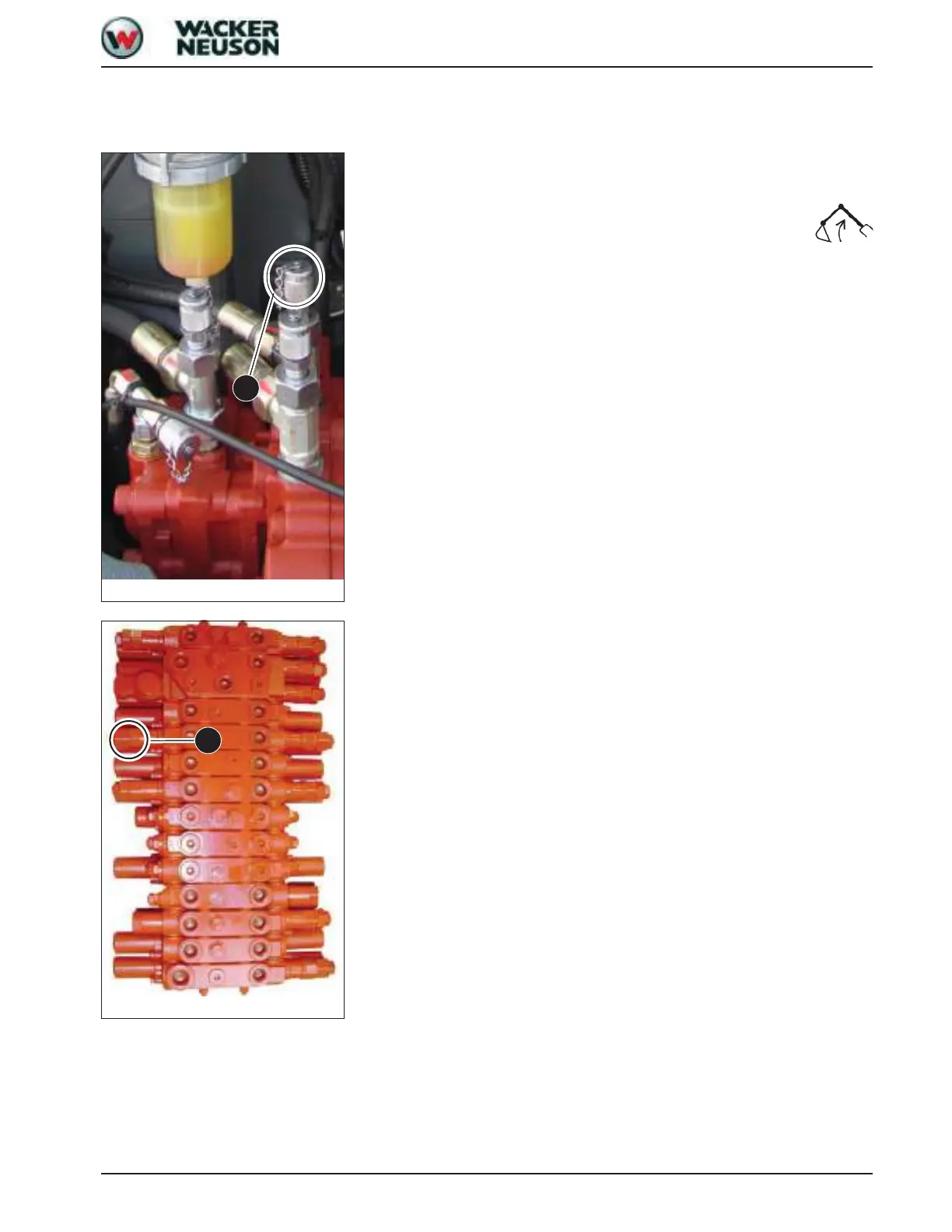

Fig. 40: Measuring port P1
1
Fig. 41: Primary pressure limiting valve 1
A
