8.11 Removing the seals (kit A), shaft bearings and pressure discs (kit B)
☞ Use appropriate tools to remove all seals, wear indicators and pressure discs B5 from
piston tube body 3 and end cap 4.
Caution!
In order to avoid damage to parts:
☞ Use only tools with rounded edges to remove seals.
Notice!
Some models may possibly not have wear indicators on the inside and outside
diameters of the piston tube body.
☞ Remove grease nipple h, grease decompression valve covers i and grease decom-
pression valves j.

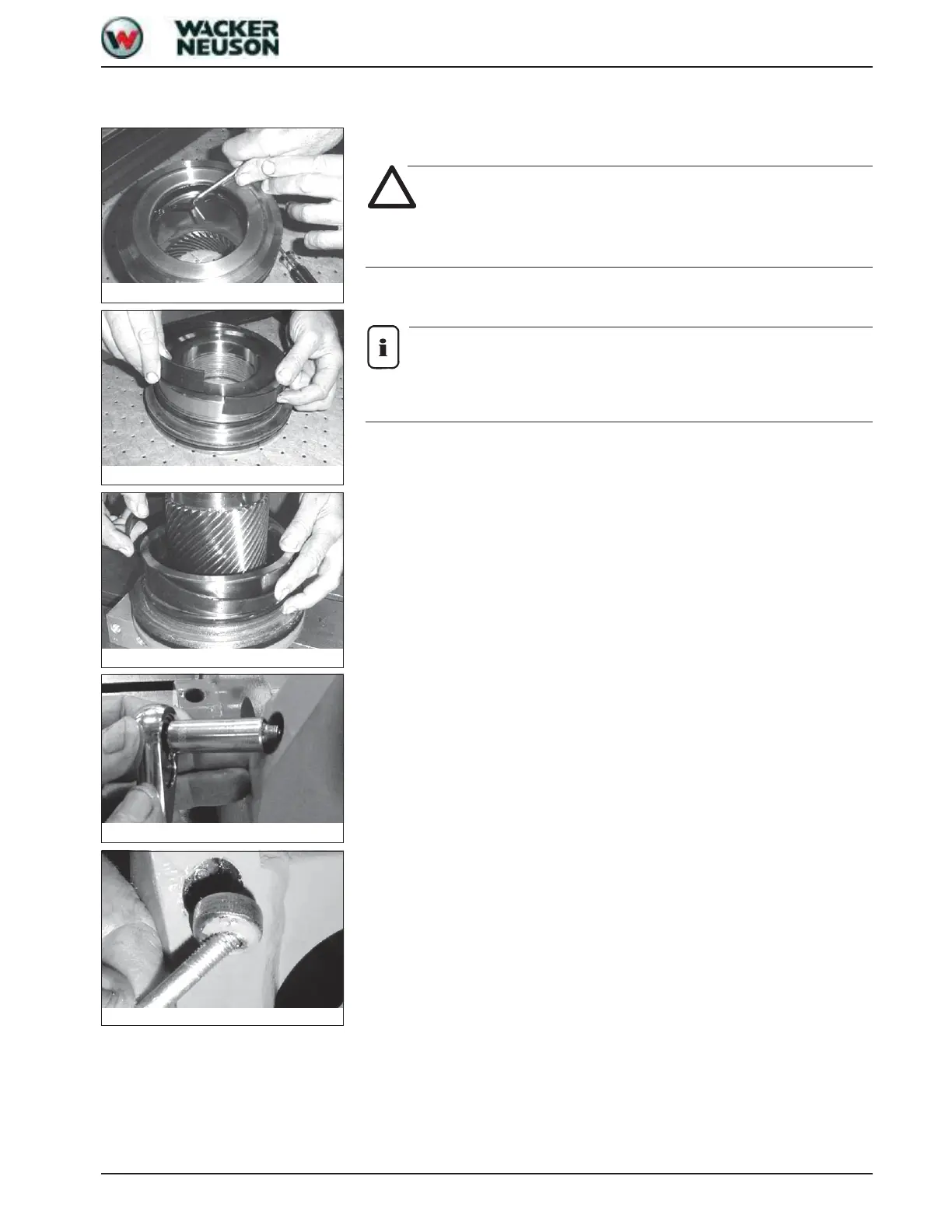

Fig. 23: Removing the seals and bearings
Fig. 24: Removing the seals and bearings
Fig. 25: Removing the seals and bearings
Fig. 26: Removing the grease nipple, etc.
Fig. 27: Removing the grease nipple, etc.
