8-22 SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm
PowerTilt PTS06
8.16 Installing the shaft
☞ Apply high-grade hydraulic oil to shaft 2.
Notice!
To prevent seal damage, temporarily cover the shaft thread with tape. After shaft
installation, remove the tape.
☞ Secure the shaft in lifting gear and fit it in the piston tube body 3.
Caution!
Ensure that the thread of the shaft does not damage the inside seal A6 of the
piston.
Caution!
Ensure correct alignment of the dead centre marks on shaft 2 and piston tube
3.
Do not separate the piston tube from the gearbox!
☞ Check the dead centre marks and turn the shaft to the rear until pressure seal touches
the housing.
☞ Ensure the firm seating of the seal with slight blows and turn the shaft into the housing
with a mounting lever.

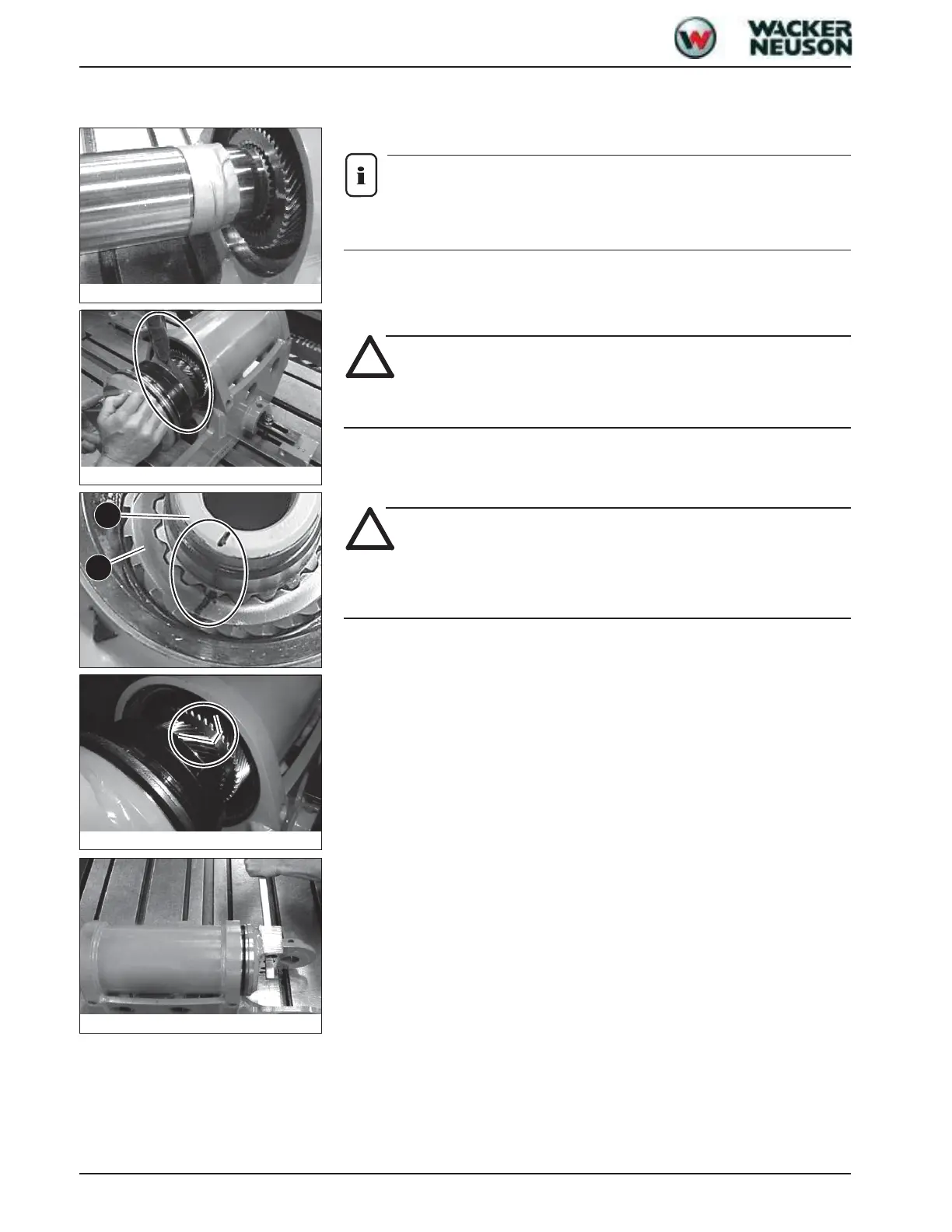

Fig. 51: Inserting the shaft
Fig. 52: Inserting the shaft
Fig. 53: Dead centre marks on the shaft and piston tube
5
2
Fig. 54: Checking the dead centre marks of the shaft
Fig. 55: Fastening the shaft
