Xerox 4590/4110 Copier/Printer User Guide
11-69
11. Problem Solving
Paper Jams at Z Folding Unit
This section explains how to remove jammed paper from inside
the Z folding unit when this optional unit is installed in a D or D2
finisher (optional) or a booklet maker finisher (optional).
This section describes how to remedy paper jams that occur at the
following locations:
Paper jams at lever 2a and knob 3a
Paper jams at lever 2b and knob 2c
Paper jams at knob 2c, levers 2e/2f and tri-fold output tray 2d.
Paper jams at tri-fold output tray 2d and lever 2g
Paper jams at unit 4 and knob 4a
NOTE: Remedies differ according to the paper jam location.
Follow the instructions displayed and remove the jammed
paper.

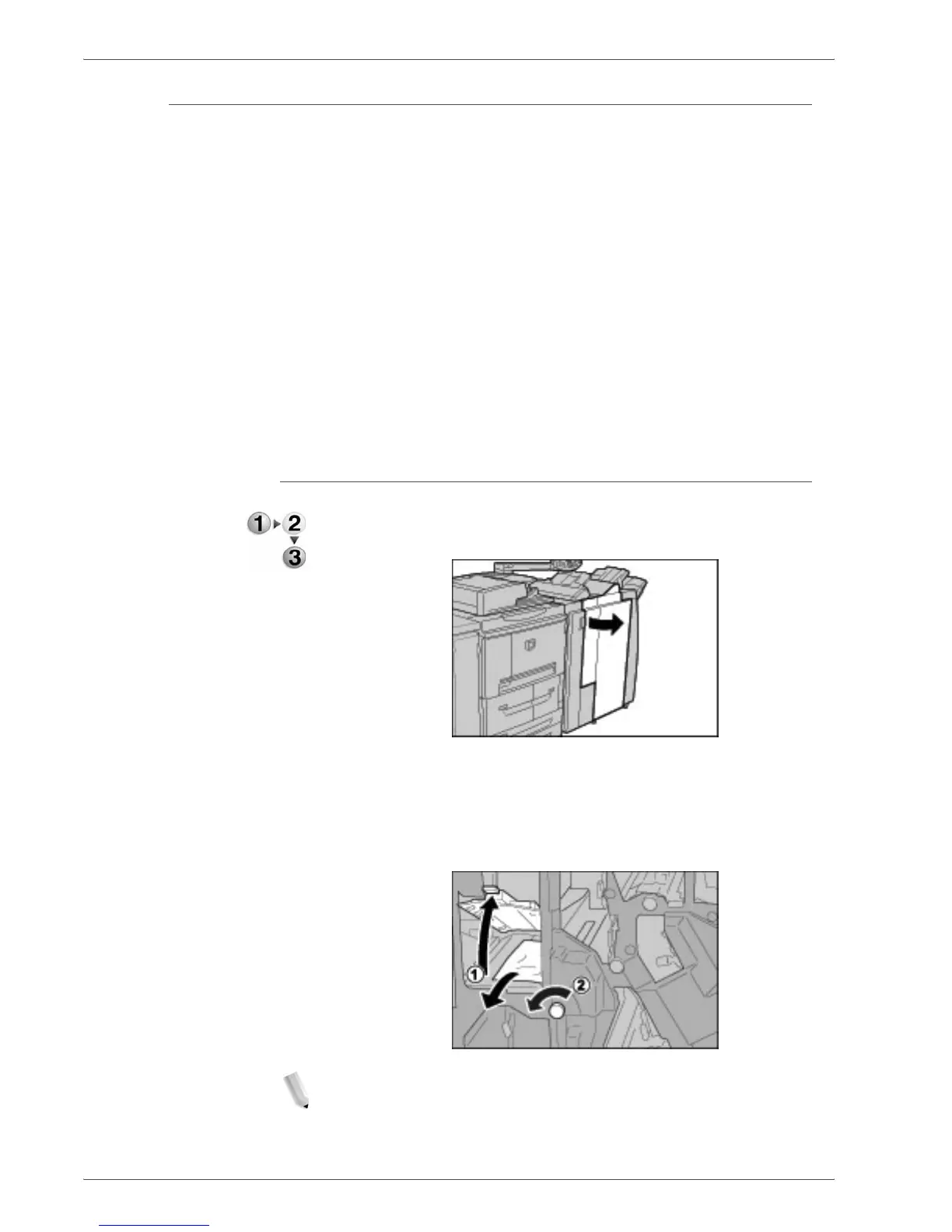

Paper jams at lever 2a and knob 3a
1. Make sure that the machine has stopped and then open the
right cover on the light finisher.
2. Move lever 2a up and turn knob 3a to the left. Remove the
jammed paper.
NOTE: If paper is torn, check for any torn pieces of paper inside
the machine.
