04/2016
4-26
Phaser 4600/4620/4622 Printer Service Manual
REP 7.0, REP 7.3
Revised
4 Repairs and Adjustments

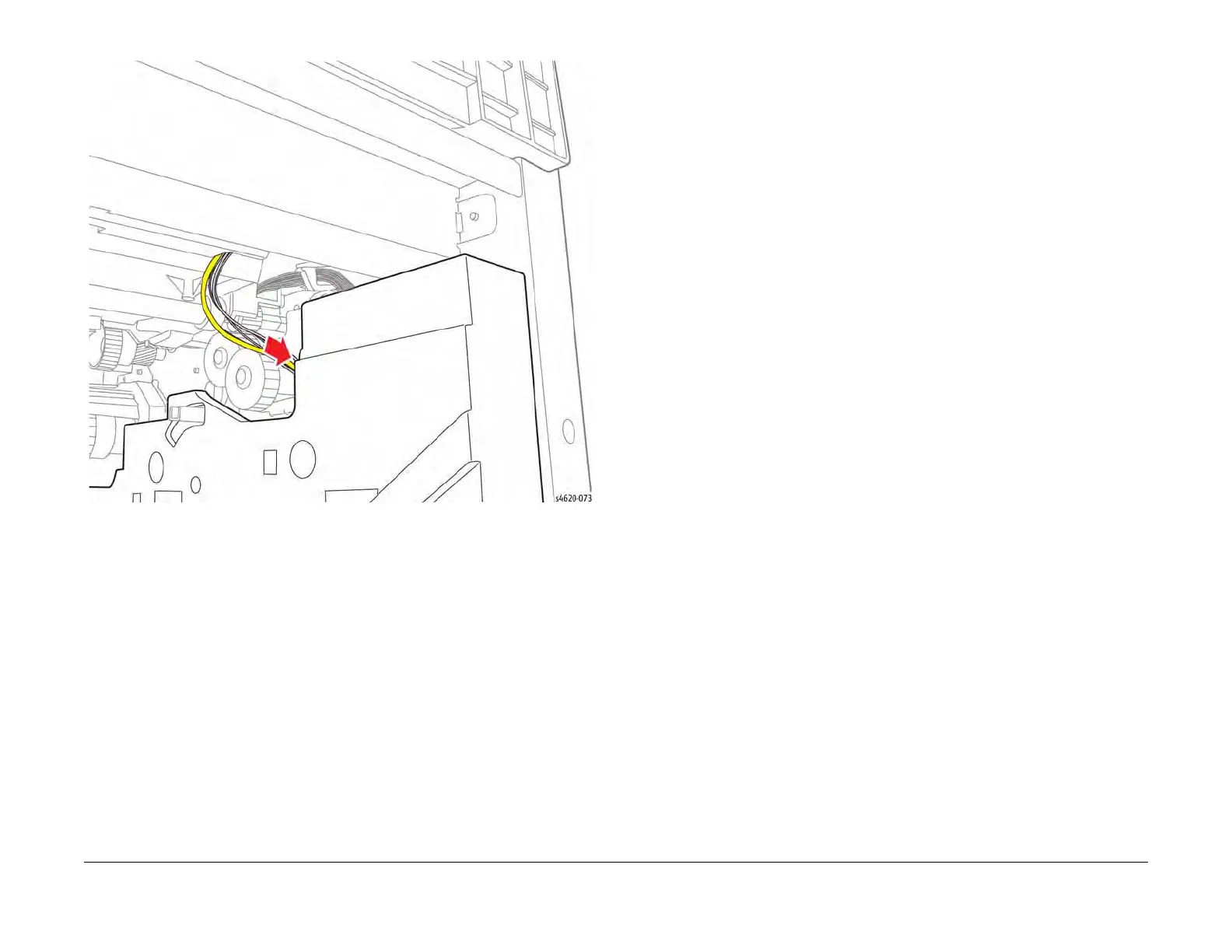

Figure 3 Feeder Assembly wire routing
REP 7.3 Tray 1 Pick-up Assembly
Parts List on PL 8.10 Item 3
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Cover the Drum Cartridge to prevent light exposure.
1. Remove Tray 2.
2. Open the Top Door.
3. Remove the Toner Cartridge.
4. Remove the Drum Cartridge.
5. Remove the Duplex Unit, REP 10.1.
6. Remove the IP Board Cover, REP 28.1.
7. Remove the Right Cover, REP 28.2.
8. Remove the Front Cover, REP 28.4.
9. Remove the Tray 1 Feeder Assembly, REP 7.0.
10. Remove the Tray 1 Feed Clutch, REP 7.16.
11. Remove 4 screws (plastic) that secure the top of the Feeder Assembly, Figure 1.
