04/2016
4-45
Phaser 4600/4620/4622 Printer Service Manual
REP 7.30, REP 7.31
4 Repairs and Adjustments
Revised

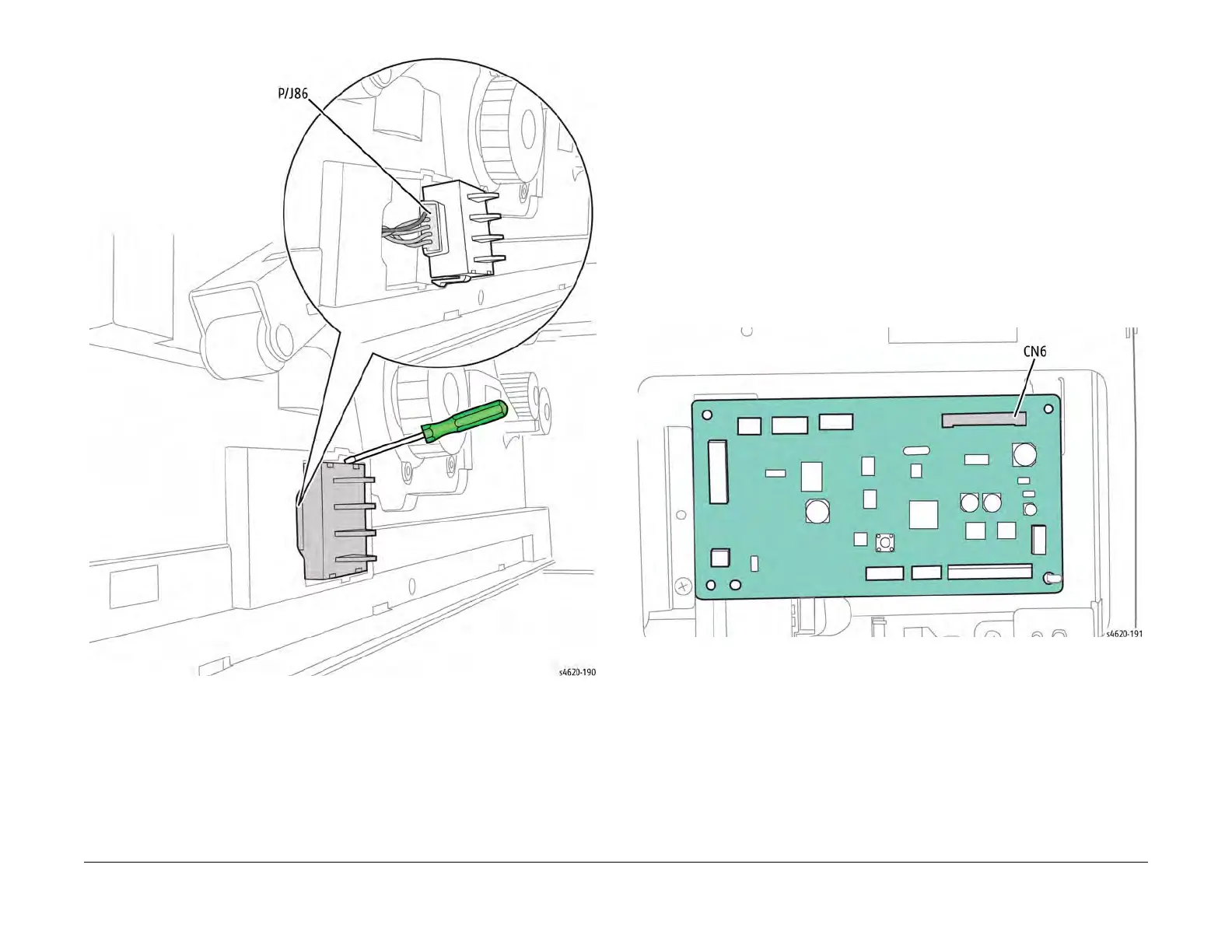

Figure 1 Remove the Size Switch
REP 7.31 Upper Option Harness
Parts List on PL 8.30 Item 10
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer GP 15.
2. Remove the Tray.
3. Remove the Right Cover, REP 7.25.
4. Disconnect CN6 from the Feeder Board, Figure 1.
Figure 1 Disconnect the Upper Feeder Harness
5. Remove 2 screws that secure the upper harness bracket to the chassis.
6. Remove the harness from the chassis, Figure 2.
To Next Page
