Phaser 4600/4620/4622 Printer Service Manual
REP 12.5
4 Repairs and Adjustments
Revised
REP 12.5 Finisher Transport Drive Assembly
Parts List on PL 12.40 Item 8
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Remove 4 screws (2 metal, 2 plastic) that secure the Control Board bracket to the Fin-
isher, Figure 1.

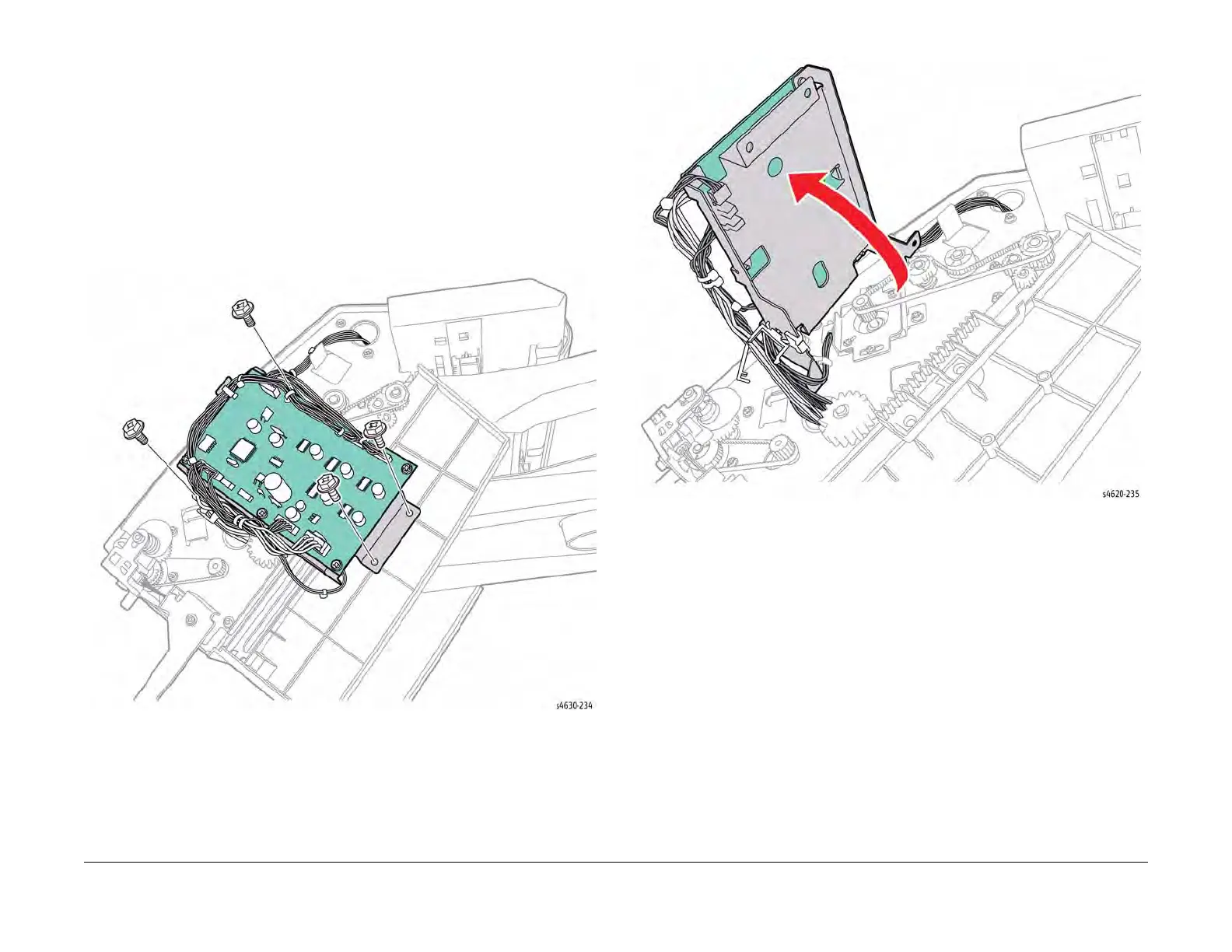

Figure 1 Remove the Control Board bracket screw,
4. Release the harness clamp and lift the front of the bracket, Figure 2.
Figure 2 Position the Control Board bracket
5. Remove the Transport Drive Belt from the motor, Figure 3.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
