Xerox Phaser 4600 Service Manual

04/2016
4-124
Phaser 4600/4620/4622 Printer Service Manual
REP 11.7, REP 11.8
Revised
4 Repairs and Adjustments
REP 11.7 Mailbox Diverter Drive Assemblies
Parts List on PL 11.25 Item 1
Removal
This procedure applies to both the upper and lower Diverter Drive Assemblies.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Mailbox Output Trays, REP 11.1.
2. Separate the Mailbox from the printer, GP 14.
3. Remove the left cover, REP 11.2.
4. Release the harness from the clamp.
5. Disconnect the Diverter Home Position Sensor and affected Diverter Drive Assembly.
6. Remove 2 (plastic) screws that secure the assembly to the Mailbox, Figure 1.

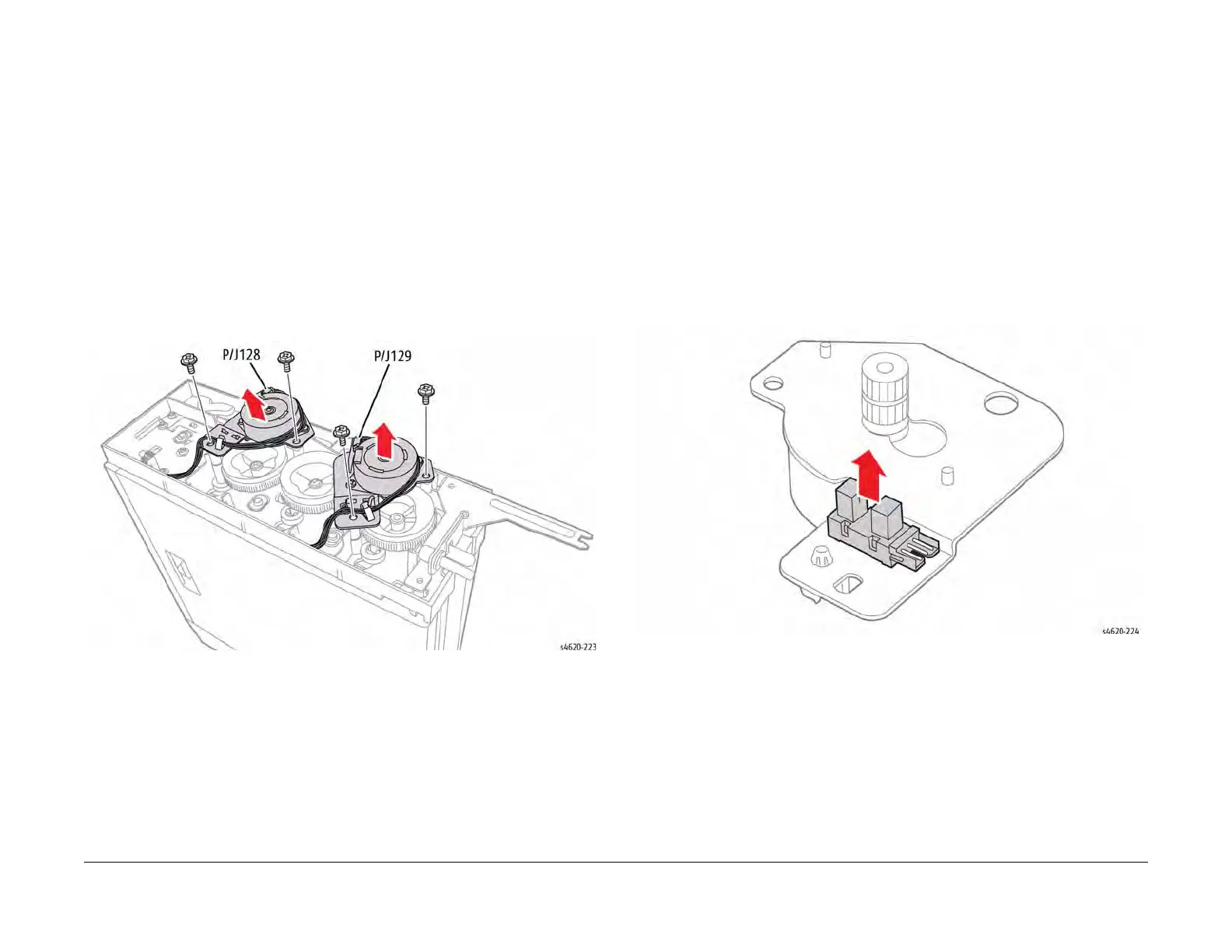

Figure 1 Remove the Diverter Drive Assembly
REP 11.8 Mailbox Diverter Home Position Sensor
Parts List on PL 11.25 Item 2
Removal
This procedure applies to both the upper and lower home position sensors.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Mailbox Output Trays, REP 11.1.
2. Separate the Mailbox from the printer, GP 14.
3. Remove the left cover, REP 11.2.
4. Remove, but do not disconnect the affected Diverter Drive Assembly.
5. Release 3 hooks that secure the sensor to the Diverter Drive Assembly, Figure 1.
Figure 1 Remove the Diverter Home Position Sensor
