Phaser 4600/4620/4622 Printer Service Manual
REP 7.39, REP 7.40
Revised
4 Repairs and Adjustments
REP 7.39 HCF Right Cover
Parts List on PL 7.20 Item 3
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: Cover removal is possible without removing the feeder from the printer.
1. Remove the HCF rear cover, REP 7.38.
2. Slide the right cover to the rear to release the hooks that secure the cover to the chassis,
Figure 1.

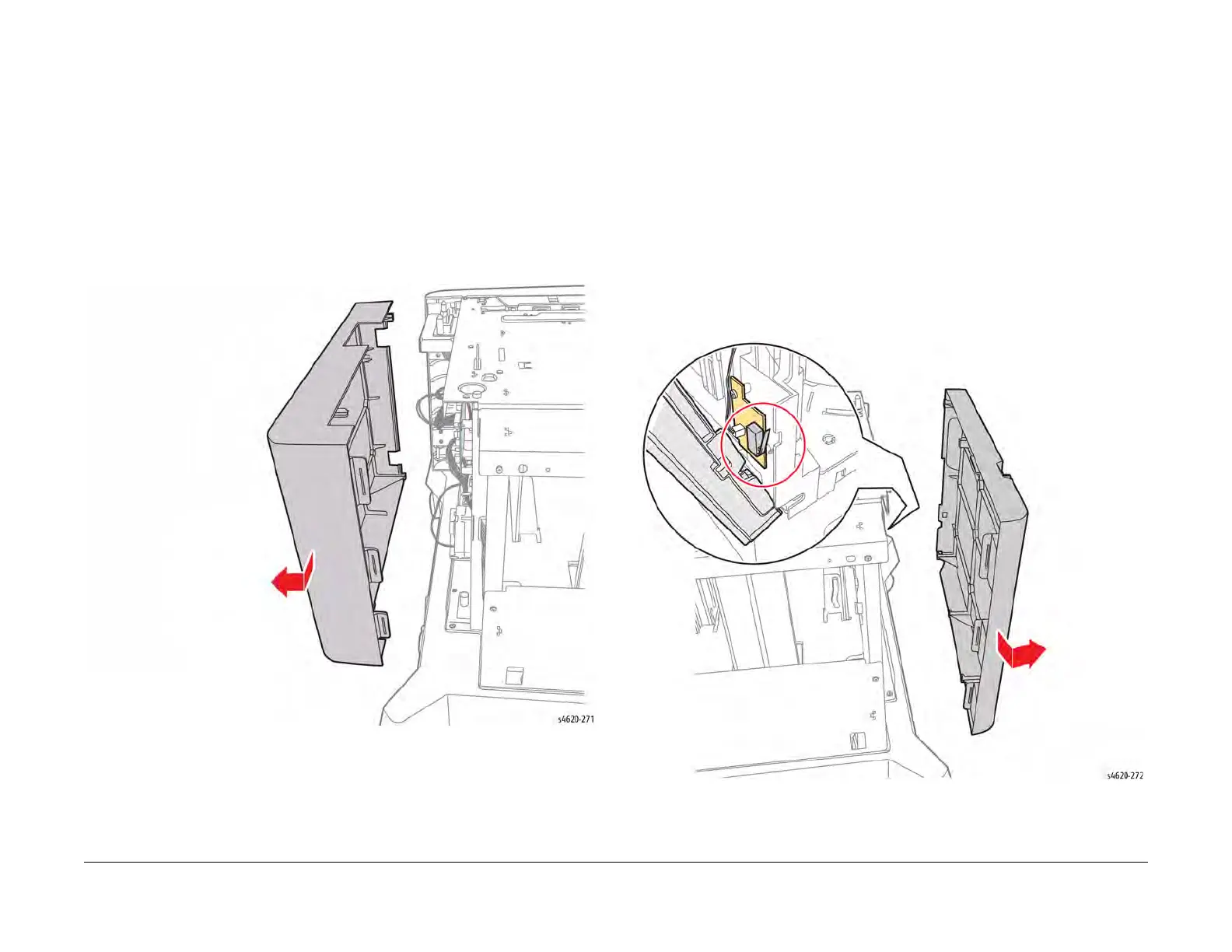

Figure 1 Remove the right cover
REP 7.40 HCF Left Cover
Parts List on PL 7.20 Item 5
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
The Front Door Interlock Switch is easily damaged during left cover removal and installation.
NOTE: Cover removal is possible without removing the feeder from the printer.
1. Remove the HCF rear cover, REP 7.38.
2. Open the HCF front door.
3. Slide the left cover to the rear to release the hooks that secure the cover to the chassis,
Figure 1.
Figure 1 Remove the left cover
