04/2016
7-9
Phaser 4600/4620/4622 Printer Service Manual
WD 12, WD 13
7 Wiring Data
Revised

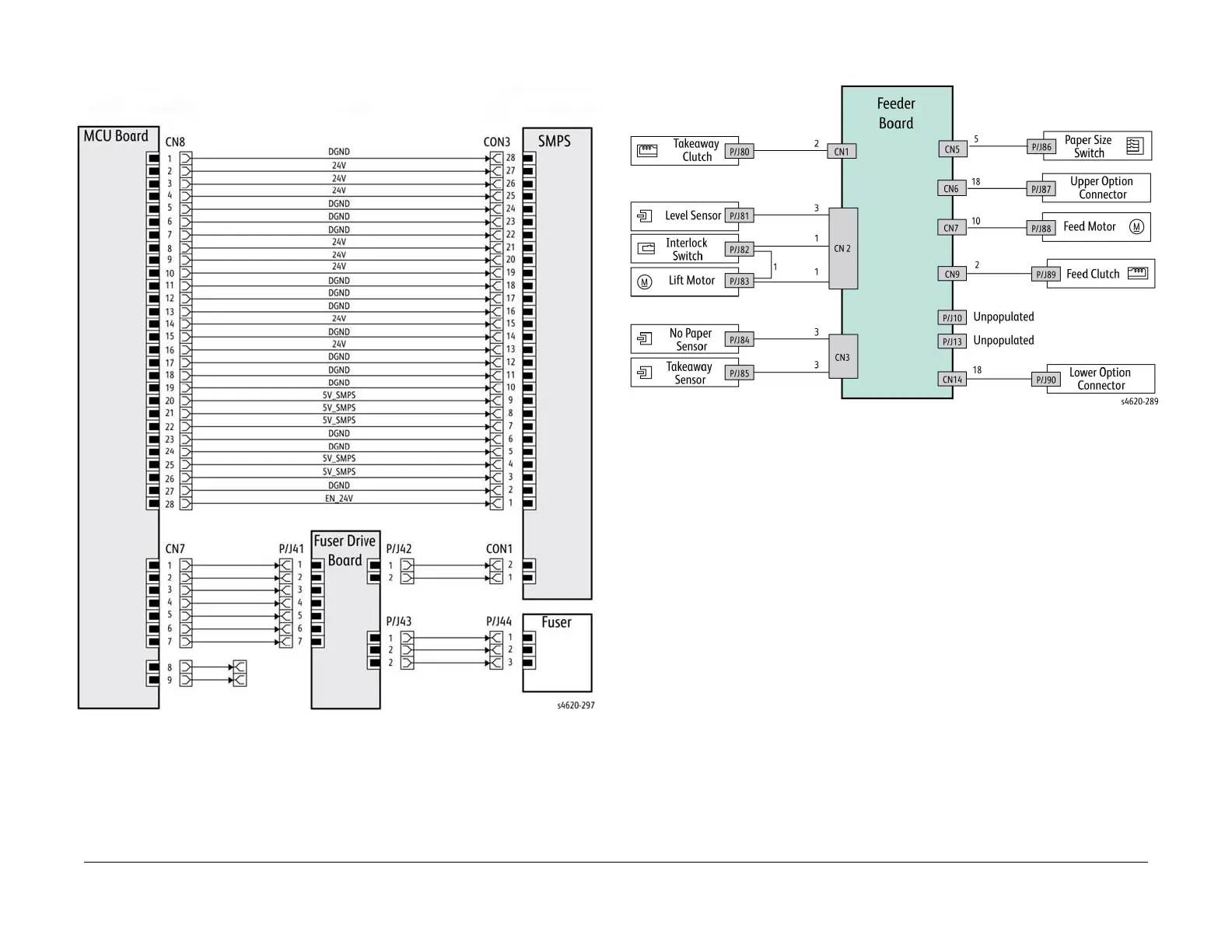

WD 12 SMPS
Figure 12 SMPS connections
WD 13 500-Sheet Feeder
Figure 13 500-sheet Feeder system diagram
