Phaser 4600/4620/4622 Printer Service Manual
PL 7.15
5 Parts List
Revised

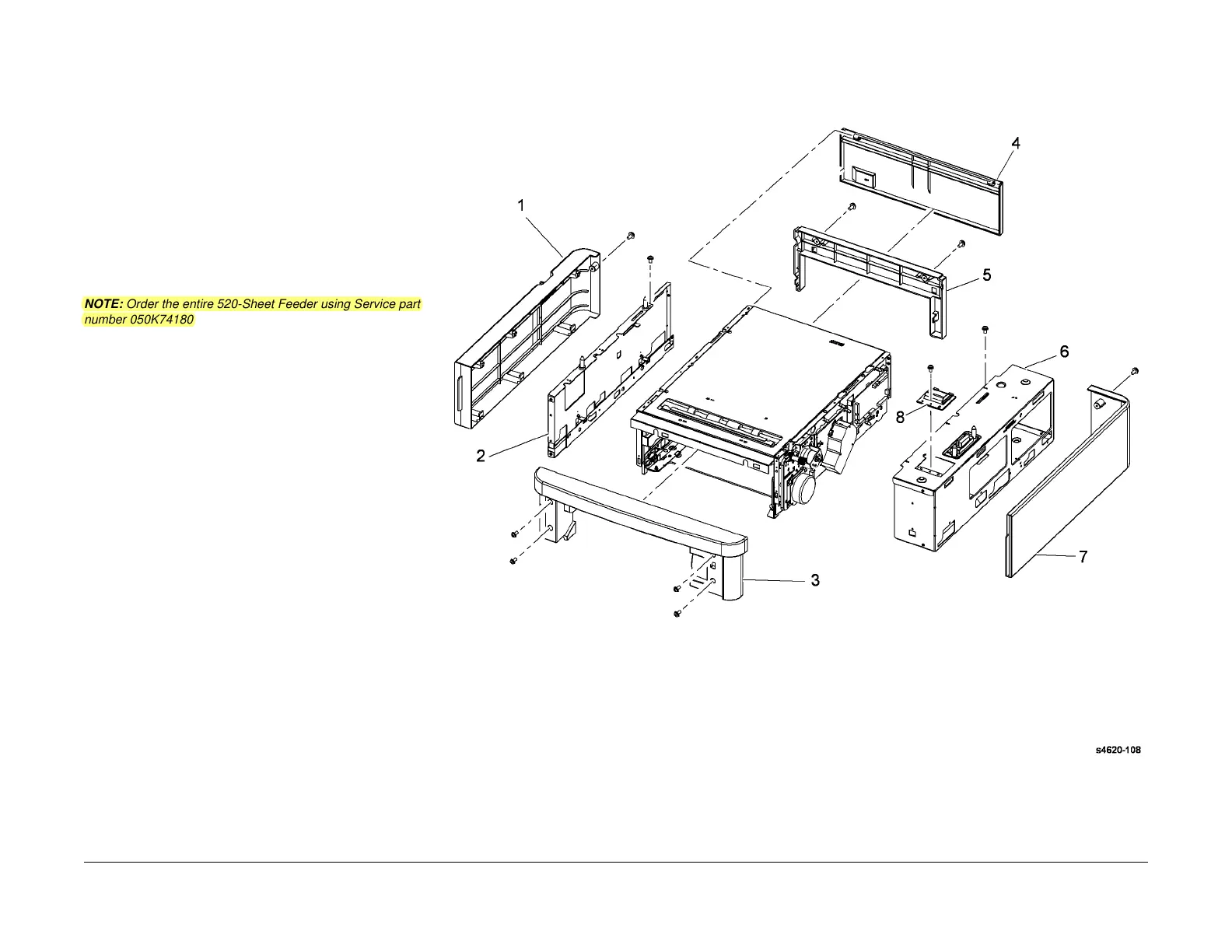

PL 7.15 Optional Feeder Main Covers
Item Part Description
1 – Left cover (Not Spared) (REP 7.26)
2 – Left side frame (Not Spared) (REP
7.33)
3 – Front cover (Not Spared) (REP
7.24)
4 – Rear tray cover (Not Spared)
5 – Rear cover (Not Spared) (REP
7.27)
6 – Right side frame (Not Spared) (REP
7.34)
7 – Right cover (Not Spared) (REP
7.25)
8 – Clutch cover (Not Spared)
NOTE: Order the entire 520-Sheet Feeder using Service part
number 050K74180 or Sales part number 097N01874.
