04/2016
7-12
Phaser 4600/4620/4622 Printer Service Manual
WD 16, WD 17
Revised
7 Wiring Data

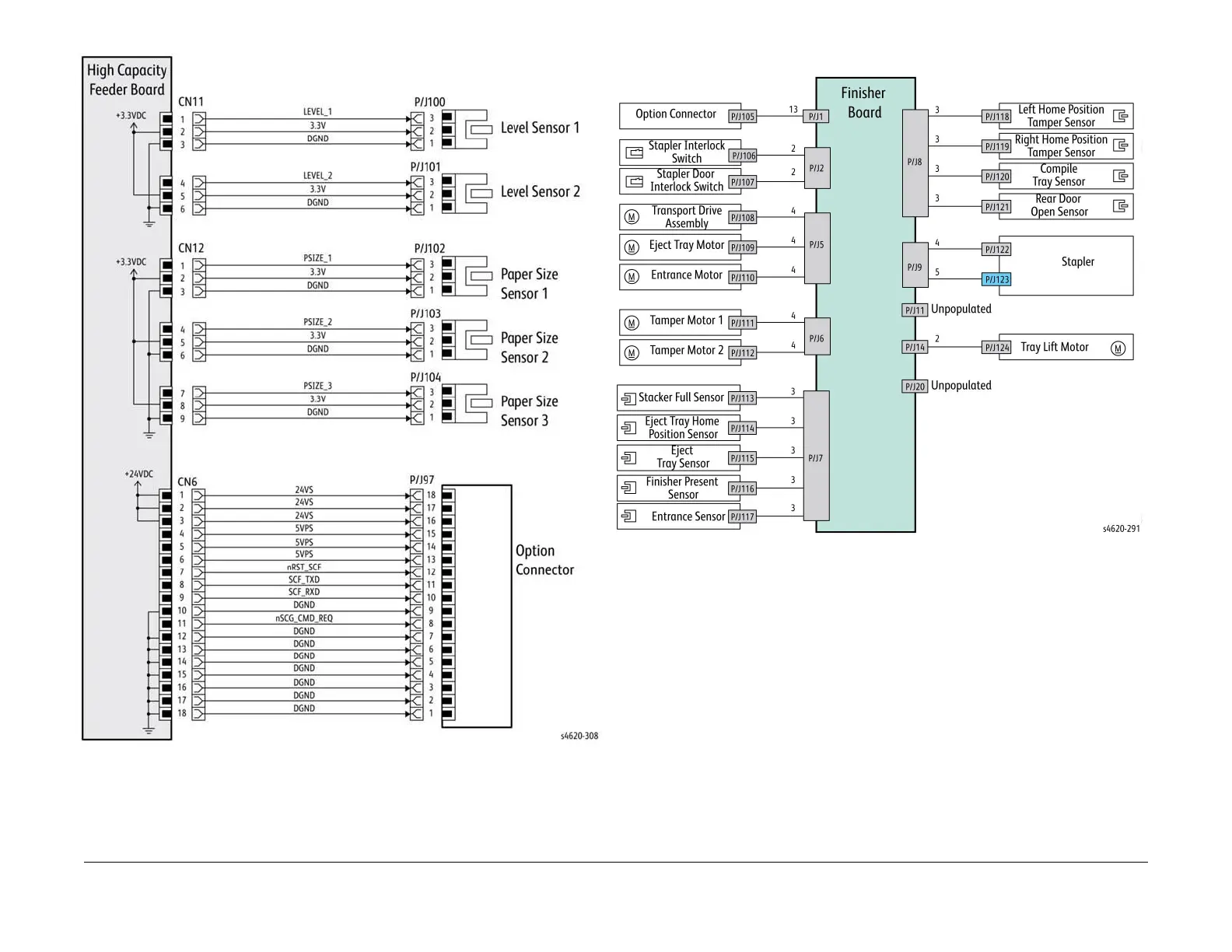

Figure 18 HCF Feeder Board (2/2)
WD 17 Finisher
Figure 19 Finisher system diagram
