Xerox Phaser 4600 Service Manual

04/2016
6-30
Phaser 4600/4620/4622 Printer Service Manual
dC305, dC330
Revised
6 General Procedures and Information

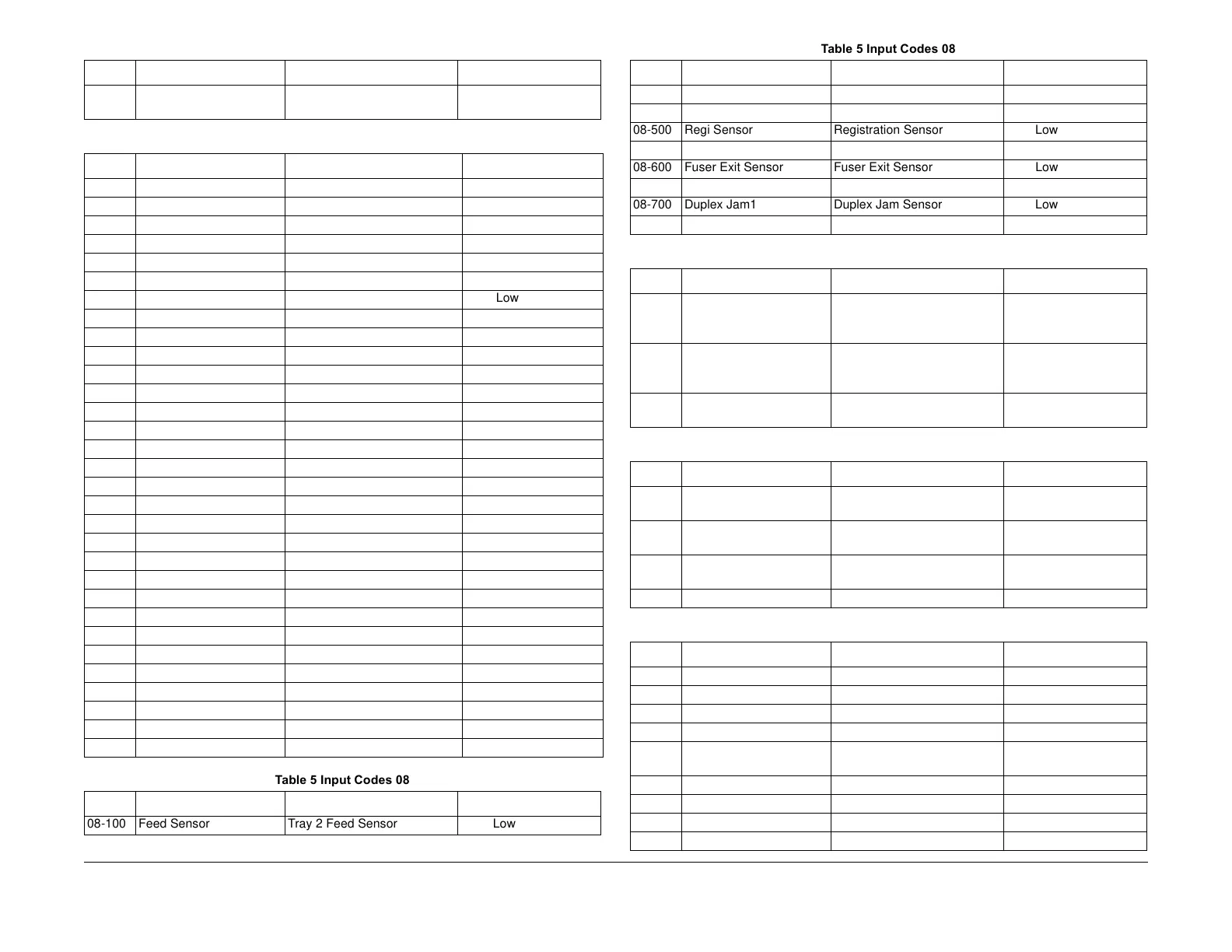

Table 3 Input Codes 06
Code Display Name Description General
06-110 LSU Motor Ready Laser Unit scan motor High = normal speed
Low = abnormal speed
Table 4 Input Codes 07
Code Display Name Description General
07-110 T1 Paper Empty Sensor Tray 1 No Paper Sensor High/Low
07-200 Tray 2 Home Position Tray 2 Size Switch SW1. Open/Closed
07-210 T2 Paper Empty Sensor Tray 2 No Paper Sensor High/Low
07-220 T2 Size1 Sensor Tray 2 Size Switch SW2 High/Low
07-230 T2 Size2 Sensor Tray 2 Size Switch SW3 High/Low
07-240 T2 Size3 Sensor Tray 2 Size Switch SW4 High/Low
07-250 T2 Stack Height Sensor Tray 2 Stack Height Sensor High/Low
07-300 Tray 3 Home Position Tray 3 Size Switch SW1 Open/Closed
07-310 T3 Paper Empty Sensor Tray 3 No Paper Sensor High/Low
07-320 T3 Size1 Sensor Tray 3 Size Switch SW2 High/Low
07-330 T3 Size2 Sensor Tray 3 Size Switch SW3 High/Low
07-340 T3 Size3 Sensor Tray 3 Size Switch SW4 High/Low
07-350 T3 Stack Height Sensor Tray 3 Stack Height Sensor High/Low
07-400 Tray 4 Home Position Tray 4 Size Switch SW1 Open/Closed
07-410 T4 Paper Empty Sensor Tray 4 No Paper Sensor High/Low
07-420 T4 Size1 Sensor Tray 4 Size Switch SW2 High/Low
07-430 T4 Size2 Sensor Tray 4 Size Switch SW3 High/Low
07-440 T4 Size3 Sensor Tray 4 Size Switch SW4 High/Low
07-450 T4 Stack Height Sensor Tray 4 Stack Height Sensor High/Low
07-500 Tray 5 Home Position Tray 5 Size Switch SW1 Open/Closed
07-501 T5 Paper Empty Sensor Tray 5 No Paper Sensor High/Low
07-520 T5 Size1 Sensor Tray 5 Size Switch SW2 High/Low
07-530 T5 Size2 Sensor Tray 5 Size Switch SW3 High/Low
07-540 T5 Size3 Sensor Tray 5 Size Switch SW4 High/Low
07-550 T5 Stack Height Sensor Tray 5 Stack Height Sensor High/Low
07-600 Tray 6 Home Position Tray 6 Size Switch SW1 Open/Closed
07-610 T6 Paper Empty Sensor Tray 6 No Paper Sensor High/Low
07-620 T6 Size1 Sensor Tray 6 Size Switch SW2 High/Low
07-630 T6 Size2 Sensor Tray 6 Size Switch SW3 High/Low
07-640 T6 Size3 Sensor Tray 6 Size Switch SW4 High/Low
07-650 T6 Stack Height Sensor Tray 6 Stack Height Sensor High/Low
Table 5 Input Codes 08
Code Display Name Description General
08-100 Feed Sensor Tray 2 Feed Sensor High/Low
08-300 T3 Feed Sensor Tray 3 Take Away Sensor High/Low
08-400 T4 Feed Sensor Tray 4 Take Away Sensor High/Low
08-500 Regi Sensor Registration Sensor High/Low
08-550 T5 Feed Sensor Tray 5 Take Away Sensor High/Low
08-600 Fuser Exit Sensor Fuser Exit Sensor High/Low
08-650 T6 Feed Sensor Tray 6 Take Away Sensor High/Low
08-700 Duplex Jam1 Duplex Jam Sensor High/Low
08-720 Out-bin Full Sensor Stack Full Sensor High/Low
Table 6 Input Codes 09
Code Display Name Description General
09-110 MHV Bias Read Detects the MHV value on the
MHV roller. Use in conjunction
with 09-100.
Displays MHV value =
XXX
09-310 THV Bias Read Detects the THV value. Use in
conjunction with 09-300 and
09-400.
Displays THV value =
XXX
09--700 Toner Sensor TC sensor in developer Displays value =
X.XX volts
Table 7 Input Codes 10
Code Display Name Description General
10-200 Fuser Temperature A Reports Fuser temperature as
measured at thermistor A.
Displays temperature in
degrees C = XXX
10-210 Fuser Temperature B Reports Fuser temperature as
measured at thermistor B.
Displays temperature in
degrees C = XXX
10-420 Fuser Motor Forward
Ready
Test Fuser motor operation. High = normal speed
Low = abnormal speed
10-910 Fuser Home Sensor Detect home position High/Low
Table 8 Input Codes 12
Code Display Name Description General
12-800 Entrance Sensor Finisher Entrance Sensor High/Low
12-805 Exit Sensor Finisher Exit Sensor High/Low
12-815 Front Jog Home Sensor Right Tamper Home Position High/Low
12-820 Rear Jog Home Sensor Left Tamper Home Position High/Low
12-825 Support Finger Home
Sensor
Support Finger Home Position High/Low
12-840 Stacker Top Sensor Stacker Top Sensor High/Low
12-845 Stacker Bottom Switch Stacker Full Sensor High/Low
12-850 Staple Home Sensor Staple Home Position High/Low
12-855 Staple Ready Sensor Self Priming Sensor High/Low
Table 5 Input Codes 08
Code Display Name Description General
