ABB PST72 Installation And Commissioning Manual

Connection
Chapter 5
52
1SFC132003M0201
5:2.2.5 Programmable output relay K4,
terminals 12, 13, and 14
The output relay gives signal depending on the selected
function.
Default: Run
See Chapter 7 “Settings and configuration” for programming.
1. Connect the cables to terminal 12, 13, and 14.
5:2.2.6 Programmable output relay K5,
terminals 15, 16, and 17
The output relay gives signal depending on the selected
function.
Default: Top of ramp
See Chapter 7 “Settings and configuration” for programming.
Connect the cables to terminal 15, 16, and 17.

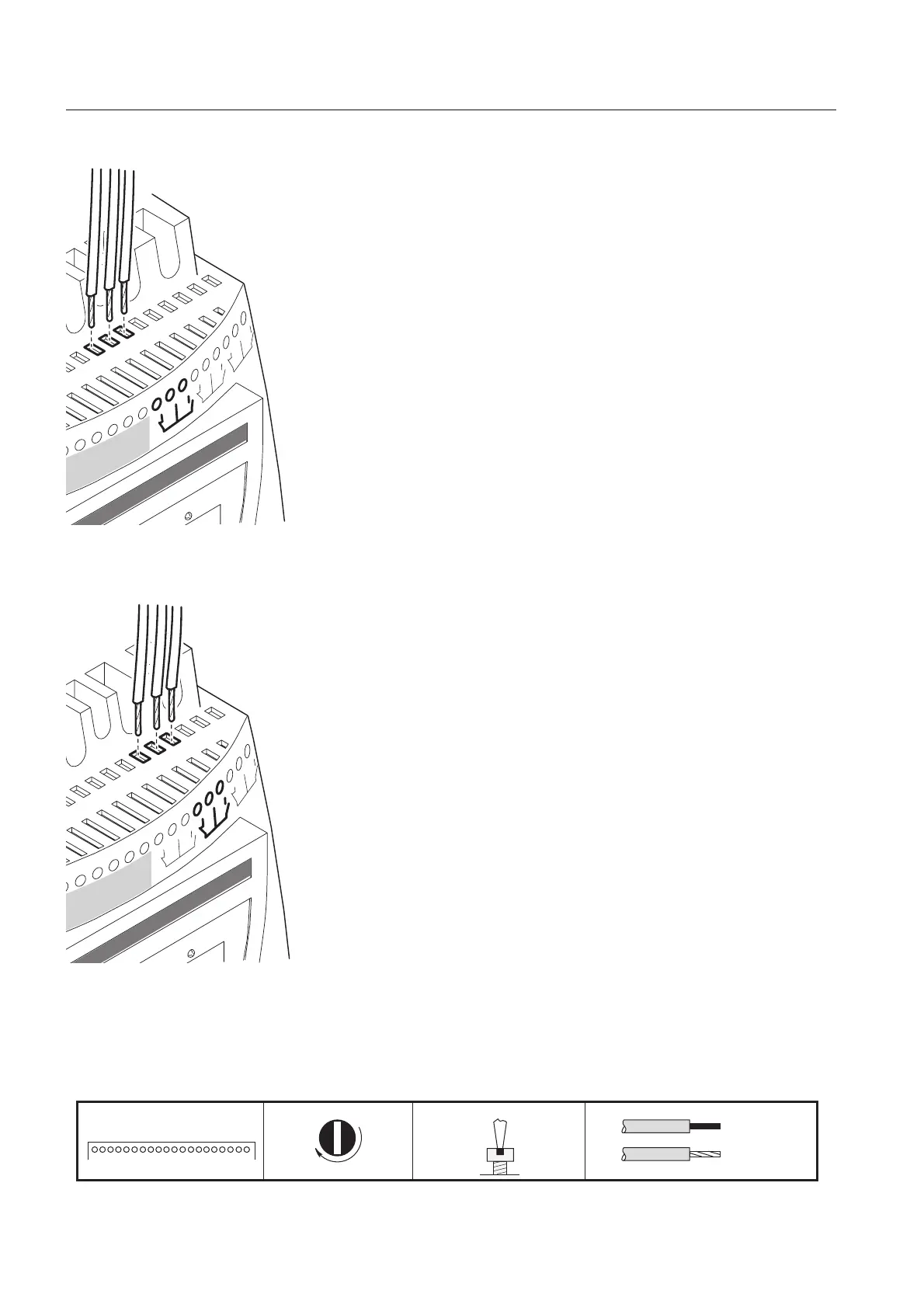

Figure 26: Tightening torques and cable dimensions (1 mm=0.0394 in)
0
In
1
Vc
7
8
9
10
Vp
Vp
11
K4
12
13
14
V
n
1
5
16
K
5
17
18
19
K6
20
1SFC132062F0001
F
igure 24: Terminals 12, 13, 14
0
In1
Vc
7
8
9
10
Vp
V
p
11
K4
12
13
1
4
Vn
15
16
K
5
17
18
19
K6
20
1SFC132063F0001
F
igure 25: Terminals 15, 16, 17
M3

1. . . . . . . . . . . . . . . . . . . . . . . . 20
0,5 Nm - 4,3 lb.in
3,5x0,6
0,14 ... 2,5 mm
AWG 12 ... 22
0,14 ... 2,5 mm
2
2
1SFC132053F0001
