ABB PST72 Installation And Commissioning Manual

Settings and configuration
Chapter 7
85
1SFC132003M0201
7:2 Description of menus
For detailed description of each function, see Chapter 10
“Functions” .
7:2.1 Top level
This level contains information about output voltage and
current, heat sink temperature, real time clock and more.
From this menu, the keypad can be locked/unlocked and a
password for this can be set. It is also possible to enter the
other menus.
Display at start up
When switching on the supply voltage the LCD will first
display the text “Hello”, and after a few seconds switch into
displaying Top Level, figure 2.
The displayed current is the actual motor current.
U
in
status
The softstarter checks and displays the status of the input
voltage (line side).
Motor temperature
The used thermal capacity of the motor is displayed. 0%
means that the motor is in cold state. 50% means that half
the capacity is used etc.
SCR temperature
The temperature of the SCRs in the softstarter is displayed
as a percentage of the max. value.

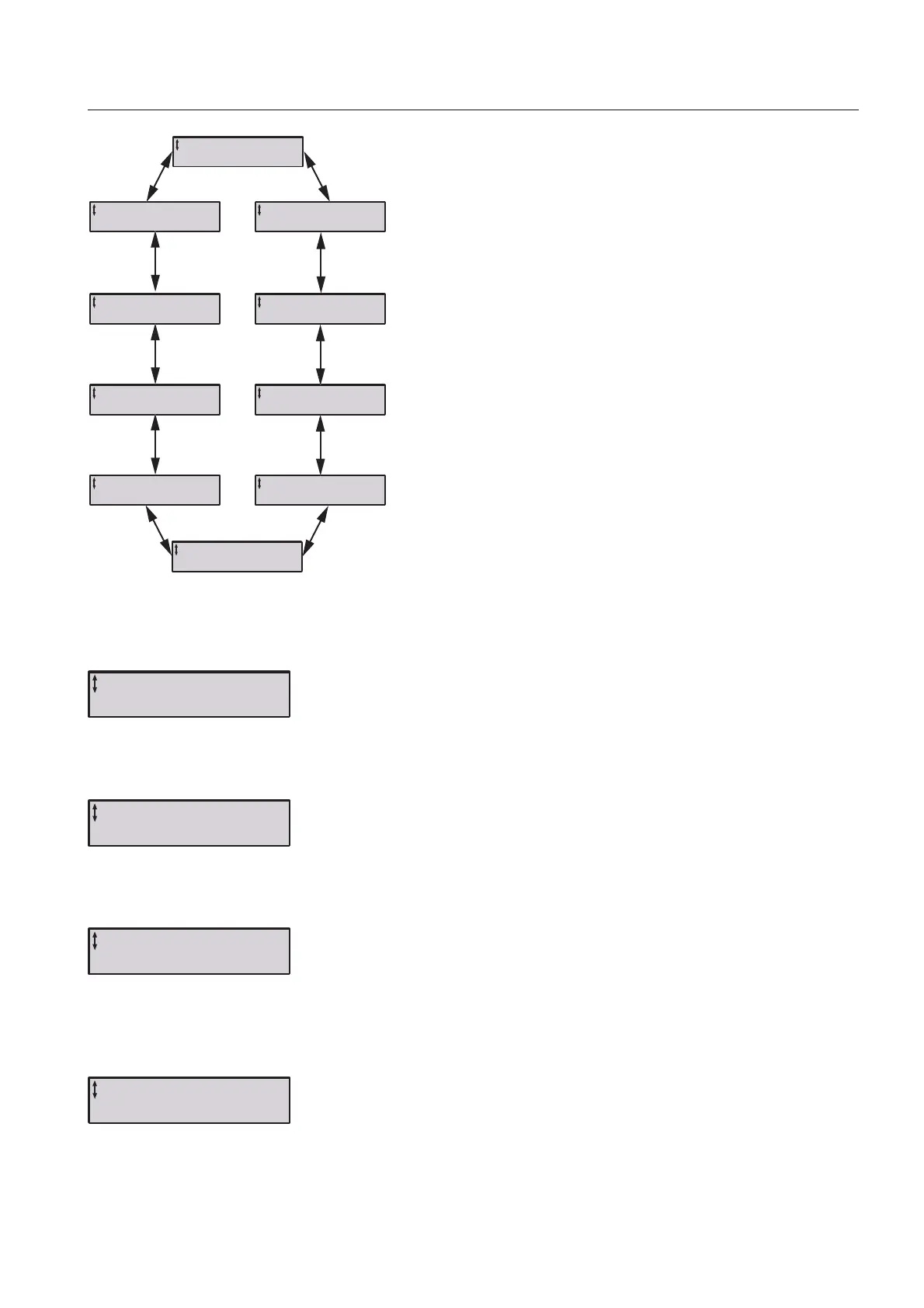

Figure 1: Top level display loop
U= 0% I=0.0A
Menu
Change Password
Select Back
Keypad is Active
Lock Back
SCR Temp. 60%
Back
Stop Mode Torque
Back
Uin OK
Back
2003-01-30 11:08
Back
Motor Temp. 0%
Back
In= 0000 Out= 0000
Back
Start Mode Volt
Back
U= 0% I=0.0A
Menu
F
igure 2: Top level (start position)
Uin OK
Back
Figure 3: U
in
status
Motor Temp. 0%
Back
Figure 4: Motor temperature
SCR Temp. 60%
Back
F
igure 5: SCR temperature
