Enova DGX Dante™ Audio Switching Boards
134
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Dante Audio Switching Board Numbering Overlays
The Enova DGX 6400 can hold up to four Dante Audio Switching Boards (two in the lower input-side expansion board slots and two
in the upper output-side expansion board slots). The Dante ASBs in the top of the enclosure work in conjunction with the Input
Boards; the Dante ASBs in the bottom of the enclosure work in conjunction with the Output Boards.
Overlays are provided to simplify Dante ASB connector wiring on Enova DGX 100 Series enclosures.
To apply Dante ASB overlays to numbering plates:
1. Check the labels on the overlay to determine which system it applies to (see table below).
2. Peel the backing off the overlay and discard the backing.
3. Align the overlay carefully on the numbering plate then press firmly on the overlay to set the adhesive on the numbering plate.
4. Repeat Steps 1 through 3 as necessary for any remaining overlays.
Dante Audio Switching Board Overlay Placement
Enova DGX Dante ASB to Dante Subscription Mapping
The interface from the Enova Audio Switching Matrix is fundamentally intended to be stereo (2 channel). Therefore the Dante
subscription should normally be set up for both channels (Left and Right). The following tables show the mapped relationship
between the Input board's Dante subscription channel(s) and the Enova DGX stereo audio input routing number.
Example: In an Enova DGX 800, to extract audio from HDMI Input 7 to Dante subscription output channels 03-LEFT and 03-RIGHT,
route Input 7 to Output 11 and then make the subscription to output 03-LEFT and 03-RIGHT via Dante Control software as usual.

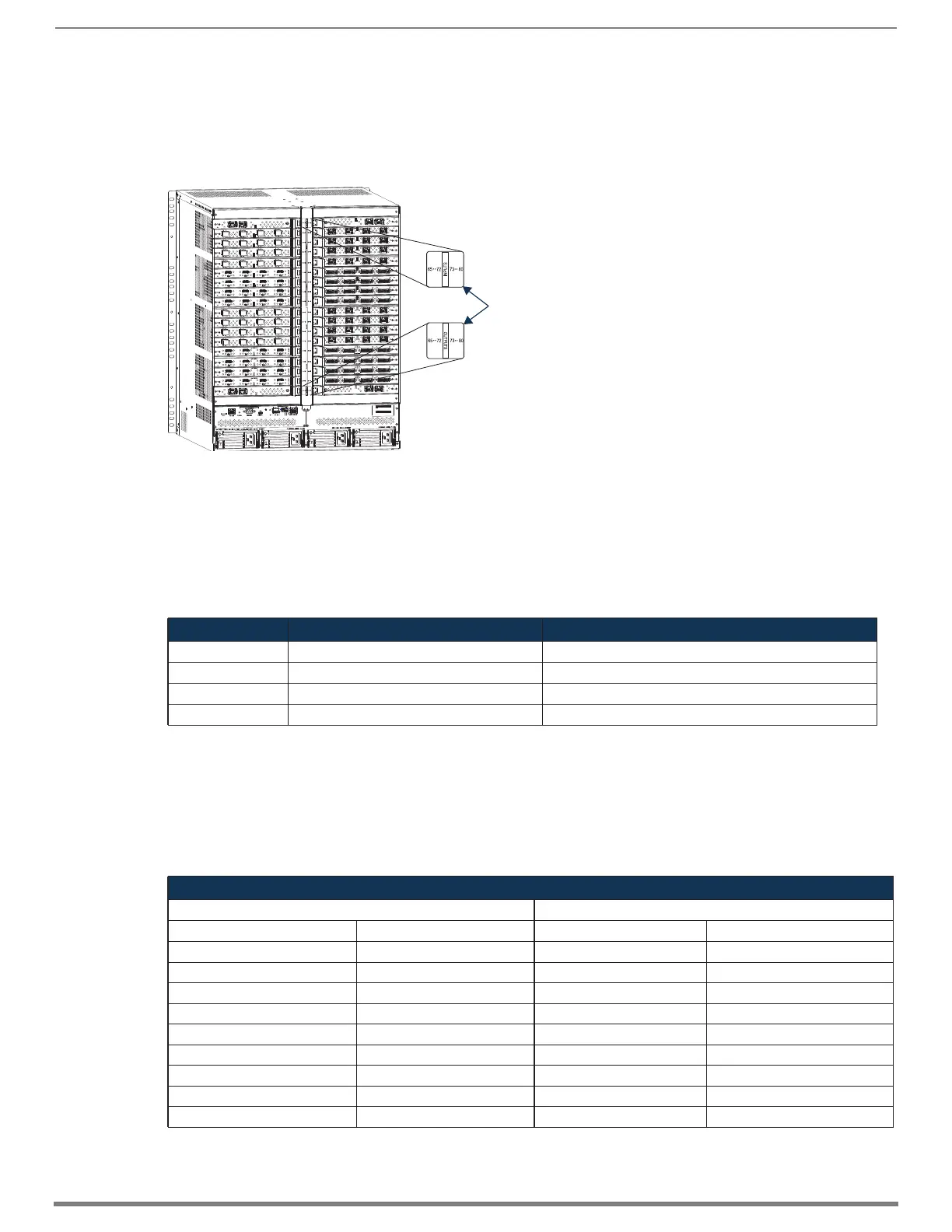

FIG. 77
Dante Audio Switching Board slot numbering overlays on Enova DGX 6400
Enclosure Audio Switching Board Numbering Overlay Placement
Enova DGX 800 Inputs 9-16, Outputs 9-16 Vertical numbering plate (rear center) - at bottom
Enova DGX 1600 Inputs 17-24, Outputs 17-24 Vertical numbering plate (rear center) - at bottom
Enova DGX 3200 Inputs 33-40, Outputs 33-40 Horizontal numbering plate (rear top) - at left / right ends
Enova DGX 6400 Inputs 65-80, Outputs 65-80 Vertical numbering plate (rear center) - at top / bottom
Enova DGX 800 Dante Audio Switching Board I/O and Dante Path Mapping
Dante ASB Input Board Dante ASB Output Board
Dante Subscription (EDGX-IN) Enova DGX ASB-DAN Input Enova DGX ASB-DAN Output Dante Subscription (EDGX-OUT)
Dante channels 01-LEFT,01-RIGHT Enova Stereo Audio Input 9 Enova Stereo Audio Output 9 Dante channels 01-LEFT,01-RIGHT
Dante channels 02-LEFT,02-RIGHT Enova Stereo Audio Input 10 Enova Stereo Audio Output 10 Dante channels 02-LEFT,02-RIGHT
Dante channels 03-LEFT,03-RIGHT Enova Stereo Audio Input 11 Enova Stereo Audio Output 11 Dante channels 03-LEFT,03-RIGHT
Dante channels 04-LEFT,04-RIGHT Enova Stereo Audio Input 12 Enova Stereo Audio Output 12 Dante channels 04-LEFT,04-RIGHT
Dante channels 05-LEFT,05-RIGHT Enova Stereo Audio Input 13 Enova Stereo Audio Output 13 Dante channels 05-LEFT,05-RIGHT
Dante channels 06-LEFT,06-RIGHT Enova Stereo Audio Input 14 Enova Stereo Audio Output 14 Dante channels 06-LEFT,06-RIGHT
Dante channels 07-LEFT,07-RIGHT Enova Stereo Audio Input 15 Enova Stereo Audio Output 15 Dante channels 07-LEFT,07-RIGHT
Dante channels 08-LEFT,08-RIGHT Enova Stereo Audio Input 16 Enova Stereo Audio Output 16 Dante channels 08-LEFT,08-RIGHT
Enova Audio Input 17 (Downmix)
