Installation and Setup
44
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Installation Options
Additional installation tasks may include the following:.
Attaching an AxLink Device – page 57
Using the ID Pushbutton – page 59
Setting PRD Mode – page 60
Establishing Telnet connection with the CPU – page 255
Establishing external serial control – page 285
Attaching Cable Management Bars
If the enclosure has DXLink Fiber Input and Output Boards installed, cable management bars are provided.
CAUTION: Do not severely bend or kink any type of fiber cable. Irreversible damage can occur. Refer to the physical limitations (bend
radius) specified for the cable by the manufacturer.
To install cable management bars:
1. Enova DGX 3200 only – Loosen the two captive screws that hold the connector numbering plate at the top of the connectors.
Remove the connector numbering plate and set aside.
2. Align the two screw holes on the end of the cable management bar with the two screw holes on the end of the board.
(Note the position of the long part of the bar in relation to screw holes.)
3. Insert and tighten the two screws at the end of the cable management bar (do not over tighten the screws).
4. Align, insert, and tighten the single screw at the other end of the cable management bar (do not over tighten).
5. Tie the cable to the cable management bar far enough from the connector to allow for the manufacturer’s recommended bend
radius.
6. Enova DGX 3200 only – Replace the connector numbering plate that was removed in Step 1.

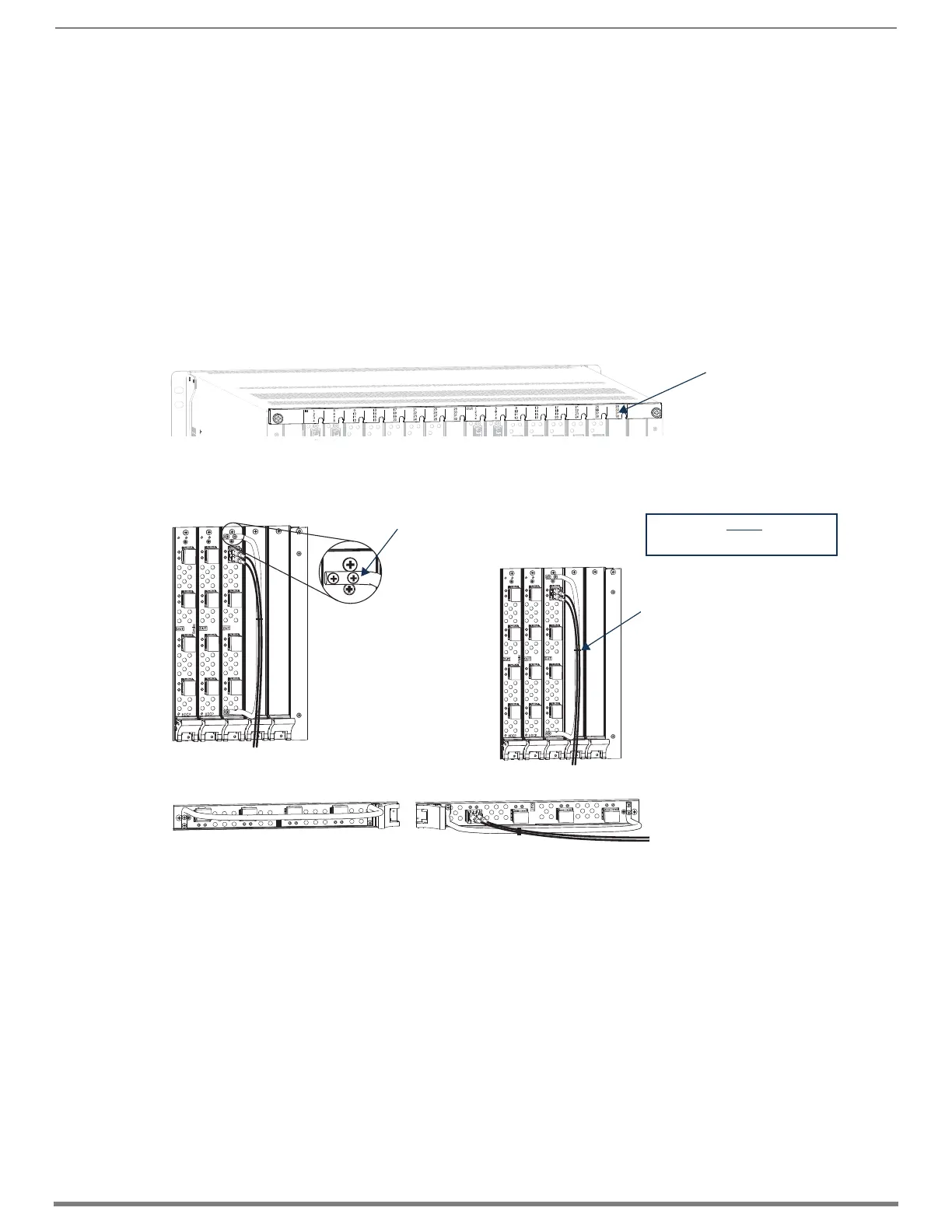

FIG. 18
Connector numbering plate on Enova DGX 3200
FIG. 19 Installation of cable management bars
Connector numbering plate
IMPORTANT: Do not over tighten
installation screws.
Input board Output board
NOTE: Enova DGX 800/1600/6400 – orientation of cable management bar is reversed from input to output board.
Tie cable to cable management
bar far enough from connector
to allow for manufacturer’s
recommended bend radius
Fasten cable management bar
with two screws on one end and
one on the other end
Enova DGX 3200
Enova DGX 800/1600/6400
