Enova DGX Dante™ Audio Switching Boards
136
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Attaching Cables
Dante Audio Switching Boards require an HSSI SMA cable (included when required) that attaches from the input board to the
output board (required on all enclosure models except the Enova DGX 6400).
Dante Audio Switching Board Connectors
Dante Audio Switching Boards include two Dante Ethernet connectors. Each board also includes one HSSI SMA connector (not
used on the Enova DGX 6400).
Dante Audio Switching Boards are oriented in the Enova DGX 100 Series models as follows:
Enova DGX 800 – One each horizontal input (left) and output (right) board
Enova DGX 1600 – One each horizontal input (left) and output (right) board
Enova DGX 3200 – One each vertical input (left) and output (right) board
Enova DGX 6400 – Two horizontal input boards (left and right) and two horizontal output boards (left and right)
CAUTION: Audio Switching Boards, Dante Audio Switching Boards, and Audio Insert/Extract Boards are not compatible. Do not
install mixed types of expansion boards in the same enclosure. If two types of boards are present, the audio subsystem is disabled.
Dante Audio Switching Board LEDs
Dante Audio Switching Boards contain two RJ-45 ports (one Primary Dante port and one Secondary Dante port) per board. Each
RJ-45 port contains LEDs that indicate network connection (green) and network speed (yellow).
NOTE: Using Dante Controller’s Identify Device mode (Network View>Device View>Identify button), both LEDs blink on off at 1
second intervals for 10 seconds.

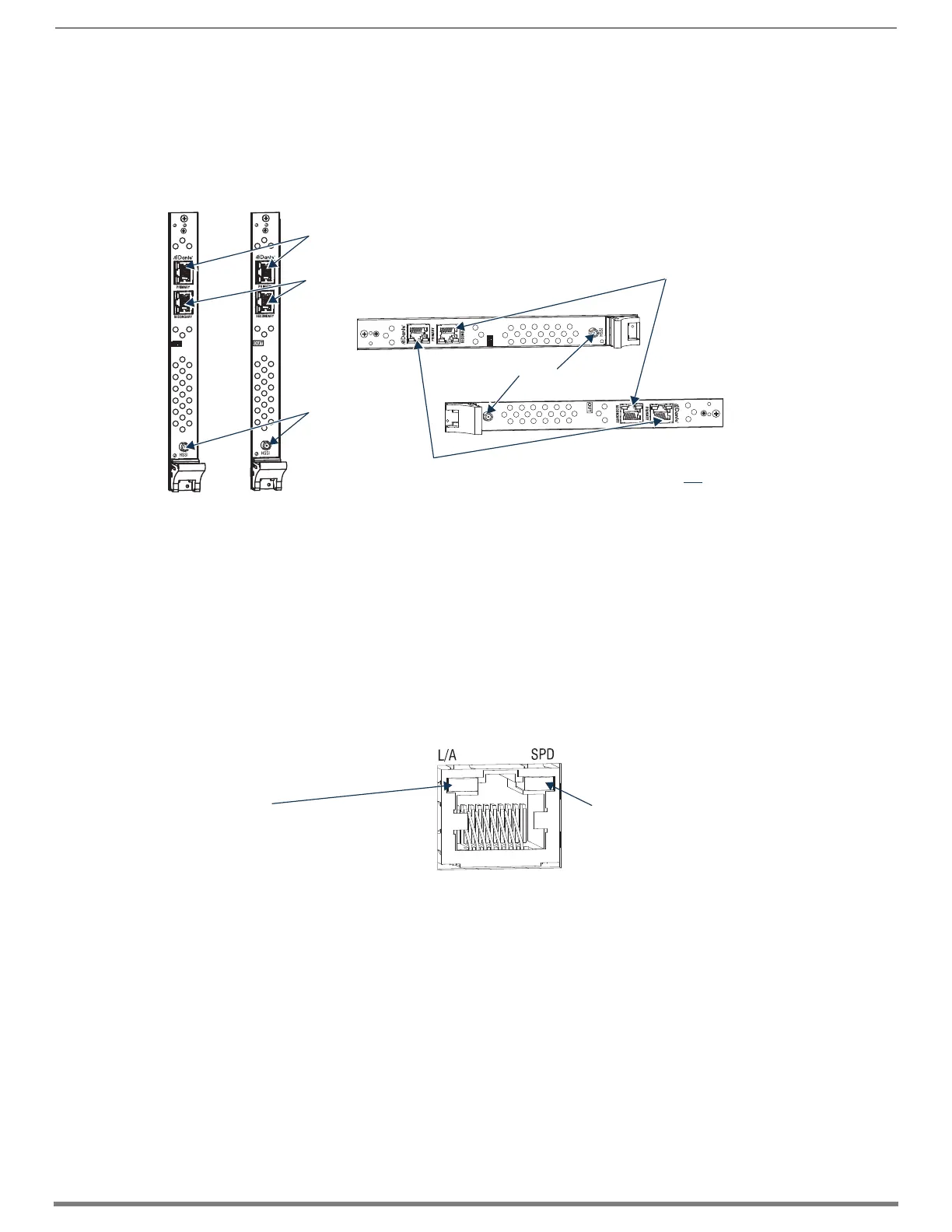

FIG. 78 Dante Audio Switching Boards - orientation and connectors
FIG. 79 Dante RJ-45 port LEDs
IMPORTANT: The HSSI connector is
not used on the Enova DGX 6400.
Dante Primary Ethernet connector
HSSI connector
HSSI connector
Dante Primary Ethernet connector
Dante Secondary Ethernet connector
Dante Secondary Ethernet connector
SPD (yellow) LED
Solid on - 1000 mbps
communication
Blinking on - 10/100 mbps
communication
L/A (green) LED
On - Link is active (when the
Ethernet cable is connected and
terminated correctly)
Off - Cable not connected
