Audio Settings

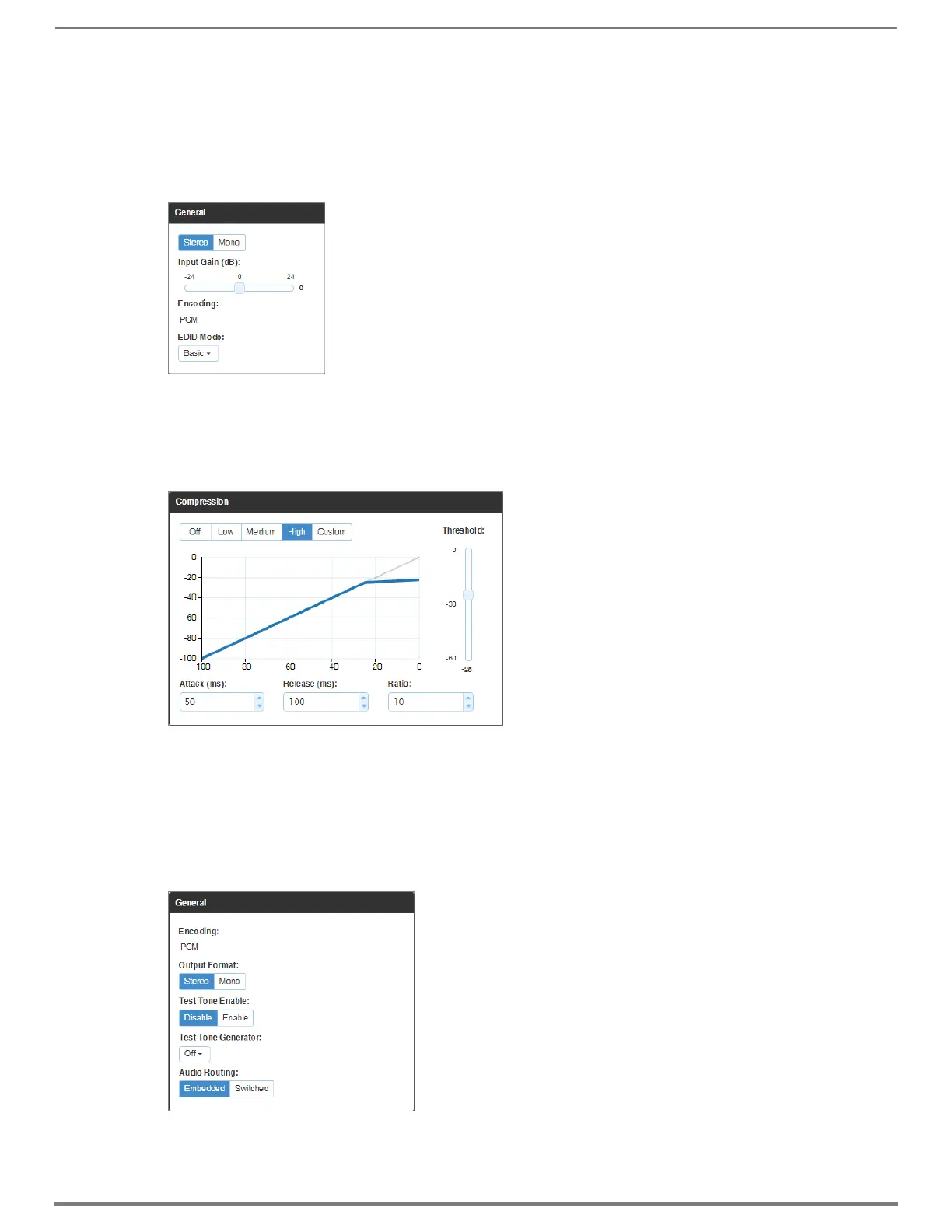

Audio settings display when the Switch Mode is A/V or Audio (for details, see page 166), the Audio tabbed view is selected, and a
specific input or output is selected. The audio settings can be used to configure any digital signal processing required for the audio
signal that is selected in the Switching view.
Inputs Only
General:
Stereo or Mono buttons – click either.*
Input Gain (dB) – use the slider bar to adjust (-24 dB to +24 dB),
Encoding – PCM (read only)
EDID Mode – from the drop-down list, select the mode (Basic, PCM 2-Channel, PCM Multi-Channel, Dolby Digital,
Dolby Digital + DTS, Dolby Digital + MPEG, Dolby Digital + AAC, Dolby TrueHD, or DTS HD Master Audio).
Compression:
Buttons at top – click Off, Low, Medium, High, or Custom.
Threshold – use the slider bar to adjust (range: 0 to -60).
Attack (ms), Release (ms), and Ratio – adjust the values in the boxes (either enter values or use the arrows)
NOTE: When in Low, Medium, or High, changes to any of the other Compression settings will automatically change the Compressor
mode to Custom.
* Setting this option to “Mono” audio on the input results in the left channel being sent to both the left and right output channels.
Outputs Only
General settings:
Encoding – PCM (read only).
digital signal
processing via the
interface
c
h
ange au
di
o rout
i
ng
method
