Installation and Setup
45
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Attaching Video Input and Output Cables
Input and output connectors are the attachment points for source and destination devices that connect to the system.
Enova DGX 800/1600
Viewed from the rear of the enclosure, the Enova DGX 800/1600 input boards (for attaching sources) are on the left, and the
output boards (for attaching destinations) are on the right.
Enova DGX 800 – Enclosures have 4 horizontal board slots (2 slots each for the input and the output boards, with 4
connectors per board), allowing for a maximum configuration of 8x8.
Enova DGX 1600 – Enclosures have 8 horizontal board slots (4 slots each for the input and the output boards, with 4
connectors per board), allowing for a maximum configuration of 16x16 (FIG. 20).
Input and output channel numbers correspond to the connectors and are located between the input and output boards. For
inputs, numbering is consecutive from left to right on each board from the top board to the bottom one; outputs start over
at “1” and follow the same pattern.
Enova DGX 3200
Viewed from the rear of the enclosure, the Enova DGX 3200 input boards (for attaching sources) are on the left, and the output
boards (for attaching destinations) are on the right.
Enclosures have 16 vertical board slots (8 slots each for the input and the output boards, with 4 connectors per board),
allowing for a maximum configuration of 32x32 (FIG. 21).
Input and output channel numbers correspond to the connectors and are located on the numbering plate (metal strip)
directly above the boards. For inputs, numbering is consecutive from top to bottom on each board from the left board to
right one; outputs start over at “1” and follow the same pattern.

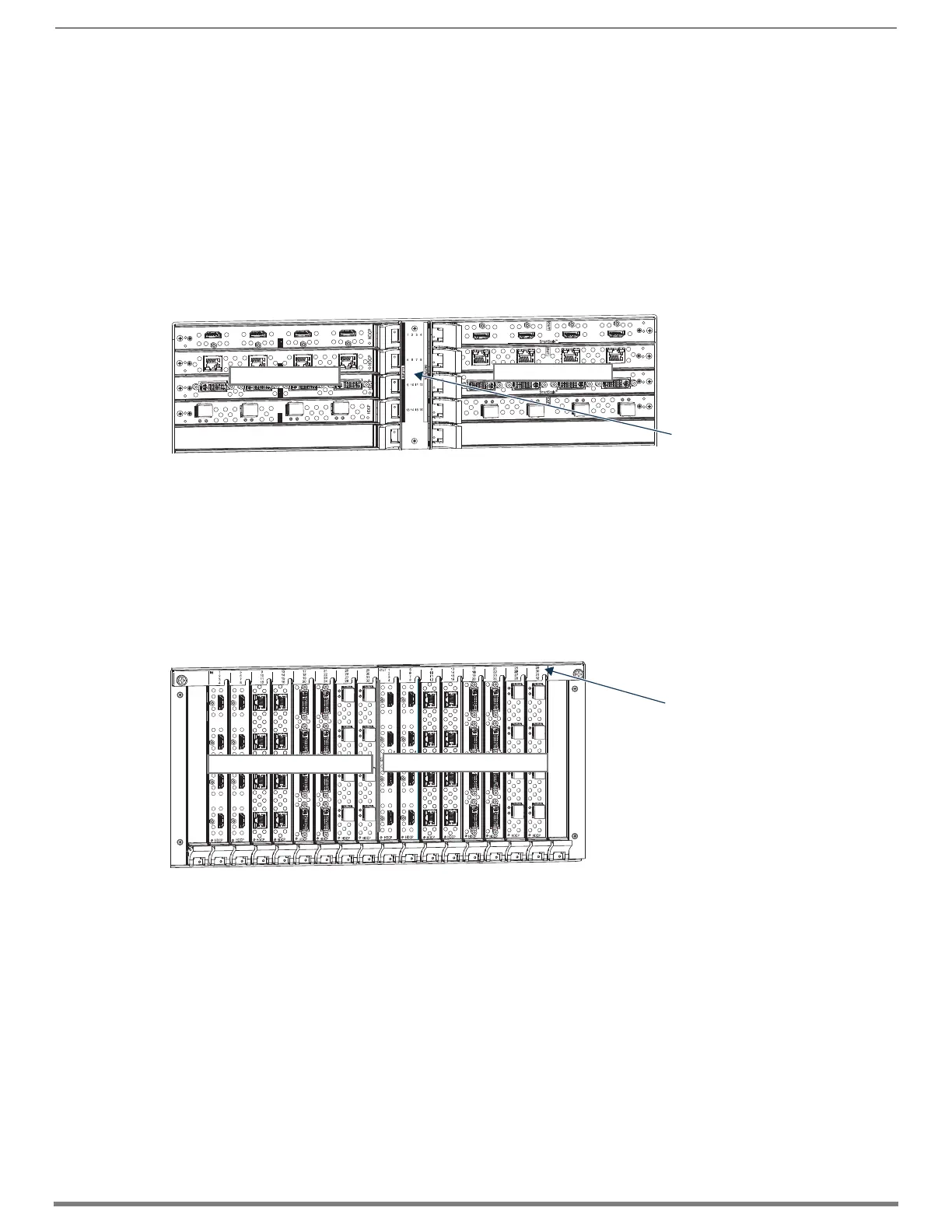

FIG. 20 Numbers on numbering plate indicate input and output board channels (Enova DGX 1600 shown)
FIG. 21 Numbers on numbering plate indicate input and output board channels
Input connectors
Numbering plate
Output connectors
<-- Input connectors -->
<-- Output connectors -->
Numbering plate
