10. Click Apply to transmit the settings in the file to the output. This action is temporary until the settings are stored on the
connector in Step 12. Otherwise, the settings last only until power is cycled. The display re-syncs with the output.
11. Verify that the display is satisfactory before proceeding.
12. Click Save to store the currently displayed settings to the connector and persist them in memory.
(If the settings have been changed since clicking Apply, the newest settings will be saved.)
HDCP Settings View
The HDCP Settings view controls HDCP support, enabling and disabling support on specific HDMI or DVI inputs. The default setting
is for HDCP to be enabled.
To enable or disable HDCP support for an HDMI, 4K HDMI, or DVI input:
1. Select the input (or select multiple inputs) on the left.
2. Under HDCP Support, click the desired option: Enable or Disable.
3. Click the Set button.
4. Repeat as necessary for additional inputs.
NOTE: To enable or disable HDCP support over the DXLink line, send the appropriate SEND_COMMAND (HDCP-<ENABLE|DISABLE>)
to the DXLink Transmitter. For details, see the “NetLinx Programming” chapter of the “DXLink™ Twisted Pair Transmitters/Receiver
Hardware Reference Manual” or the “DXLink™ Fiber Transmitters and Receivers Hardware Reference Manual.”

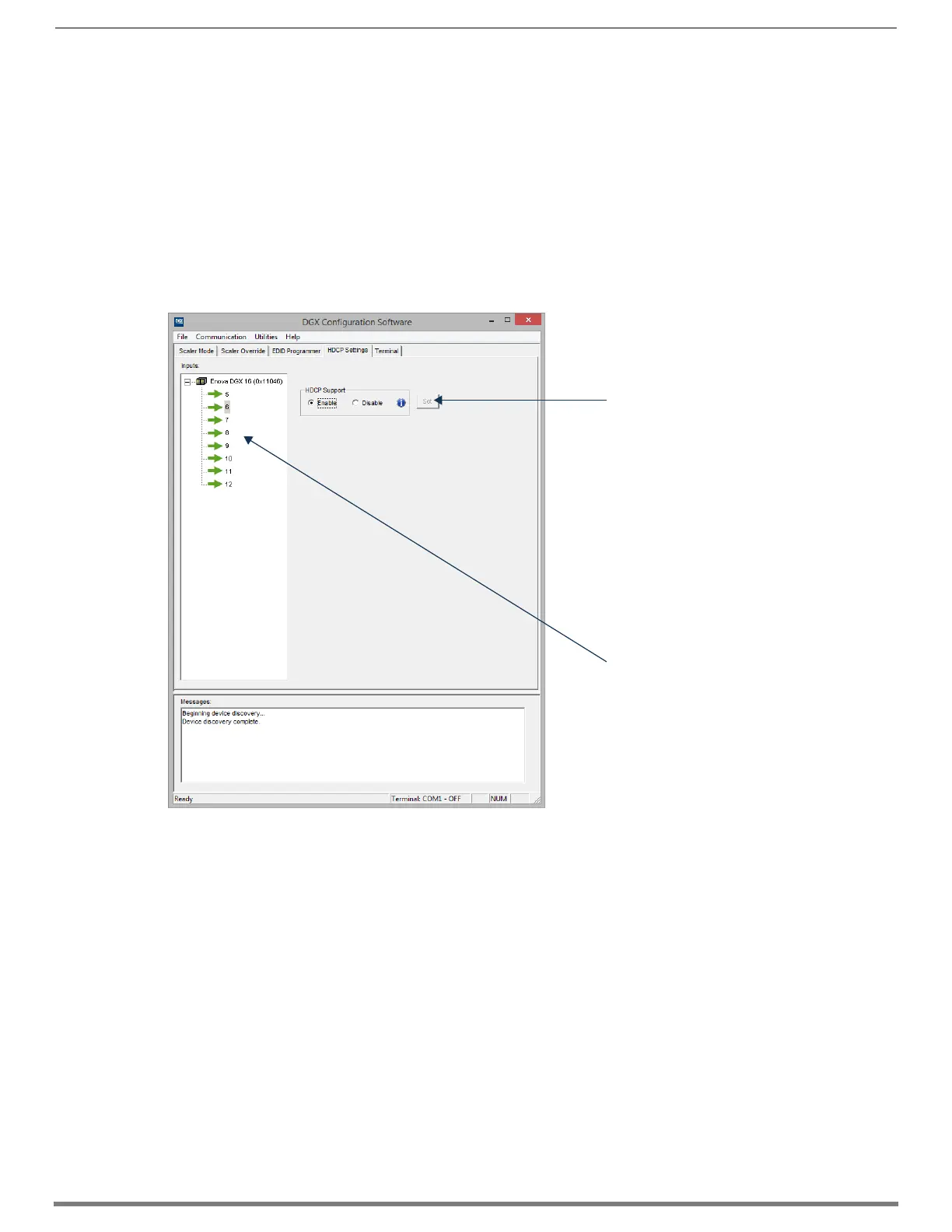

FIG. 150
DHCP Settings view
Set button
Inputs available
