Product Overview and General Specifications
20
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Power Supply Units
Each of the power supply units on the rear of the enclosure (FIG. 8) has a power receptacle that will accept all major international
standard power sources. (US power cords are included with all enclosures shipped within the US.) Maximum power specifications
are provided on the power supply receptacles. For information on applying power, see page 47.
Each power supply unit has two LED indicators:
AC: Green LED – power is good
DC: The DC indicator uses a tri-color LED
Green – power is good
Amber – temperature is above normal
Red – power supply is in a fault state
Input and Output Boards
A single enclosure can handle a combination of signals depending on the types of input and output boards.
* HDMI Boards require a cable adapter to support single-link DVI signals.
** For a DVI Board to support embedded audio on an HDMI signal, the EDID must be updated.
*** Supported analog video signals include RGBHV, RGBS, RGsB, and Y/Pb/Pr in and RGBHV out.
^ Signals supported by DXLink Twisted Pair Boards depend on the type of DXLink Twisted Pair TXs and RXs used.
^^ Signals supported by DXLink Fiber Boards depend on the type of DXLink Fiber TXs and RXs used.
NOTE: The DXLink Twisted Pair Boards also support embedded power, NetLinx control, and Ethernet. The DXLink Fiber Boards also
support NetLinx control and Ethernet (Duplex units provide this by default; Simplex units require additional setup).
All signals are automatically converted to the destination device’s format, with DXLink Twisted Pair TXs and RXs used for transport
of signals with DXLink Twisted Pair Boards and DXLink Fiber TXs and RXs used for transport of signals with DXLink Fiber Boards.

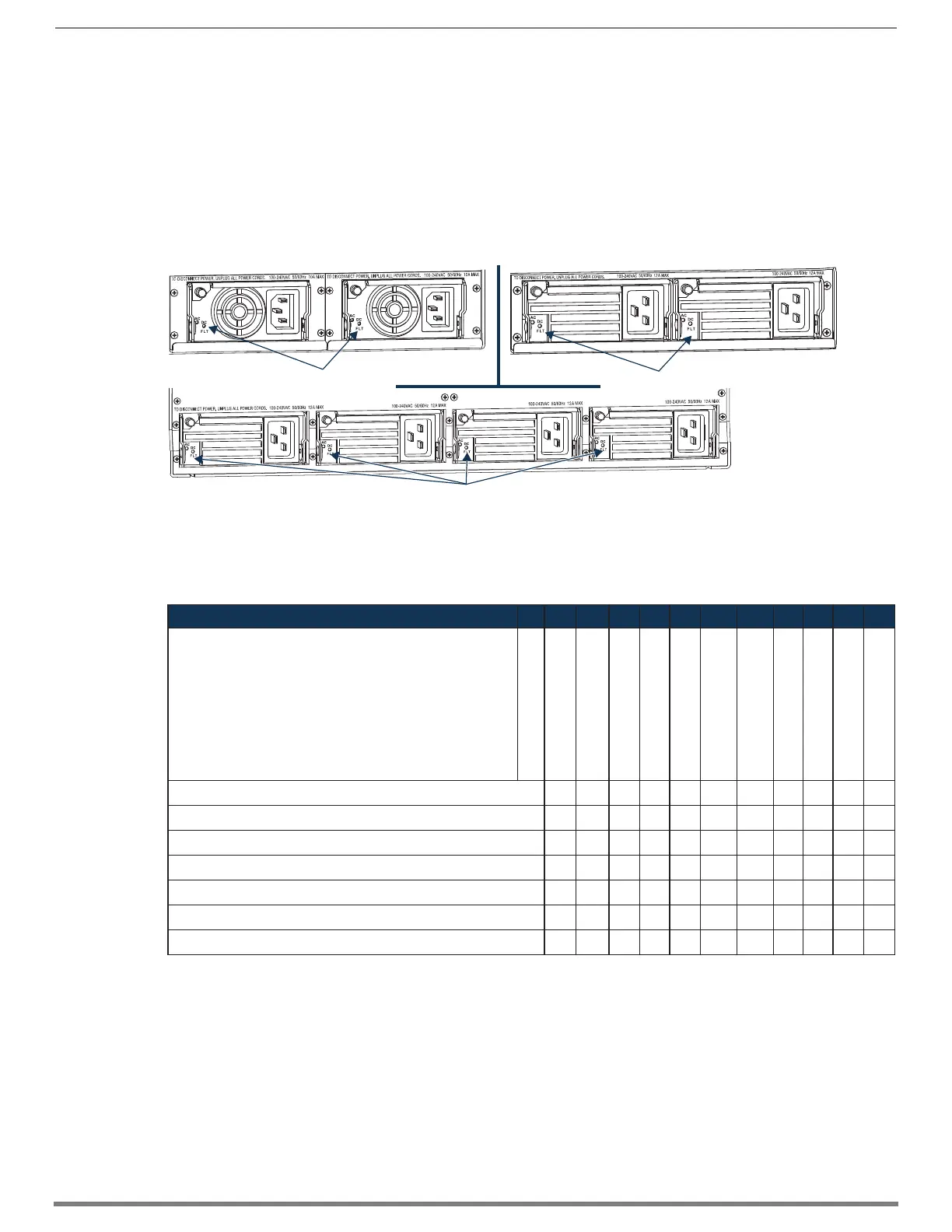

FIG. 8 Power supply receptacles for Enova DGX 800/1600 (upper left), Enova DGX 3200 (upper right), and Enova DGX 6400 (bottom)
Input and Output Boards and Supported Signals
I/O Board Types
Signal Types HDMI w/HDCP HDMI w/out HDCP DVI-D w/HDCP DVI-D w/out HDCP Embedded Audio Embedded Audio from Audio Insert/Extract Board Analog Video Discrete Digital Audio Analog Stereo Audio 3D Video Deep Color
Input: HDMI and 4K HDMI
• • •* •* • • • •
Output: HDMI
• • •* •* • • •
Input: DVI
• • • • •** • • •
Output: DVI
• • • • •** • •
Input and Output: DXLink Twisted Pair^
• • • • • • •*** • • • •
Input and Output: DXLink Twisted Pair 4K^
• • • • • • •*** • • • •
Input and Output: DXLink Fiber^^
• • • • • • •*** • • • •
Enova DGX 6400 – Indicator LEDs
Enova DGX 800/1600 – Indicator LEDs
Enova DGX 3200 – Indicator LEDs
I/O Board Types and
Supported Signals
