Installation and Setup
56
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Audio Control and Signal Processing Options
Audio Switching Boards (ASB)
The audio signal on Audio Switching Boards can be switched independently of the video or as embedded audio. These boards also
allow for digital signal processing (e.g., volume, equalizer, input gain) on every input and every output in the enclosure. When using
Audio Switching Boards, the Enova DGX 6400 requires two each of the input and output boards for functionality. Both boards are
provided as part of the compatible DGX6400-ASB Audio Switching Board Kit for the Enova DGX 6400.
NOTE: The Audio Insert/Extract Board has no control options aside from the configuration of DIP switches. All switching of audio is
executed in conjunction with the switches executed on the corresponding input and output connectors (for additional information,
see the Audio Insert/Extract Board chapter on page 154).
System Configuration Interface
Switching audio outputs/inputs – page 164
Switching a downmixed signal – page 166
Configuring audio outputs/inputs – page 167
ICSP Commands
Switching audio outputs/inputs – page 188
Digital Signal Processing audio commands – page 202
Control Panel
NOTE: Audio from Audio Switching Boards cannot be switched independently from the Control Panel. When the audio from the boards
is embedded on a video signal, only volume, input gain, and mute can be applied from the Control Panel.
Volume – page 225
Input gain – page 227
Mute – page 226
BCS Commands
Volume, input gain, and mute – See the BCS (Basic Control Structure) Protocol Programming Guide at www.amx.com.
Establish Serial Communication with a PC via the Program Port
Program Port
The Enova DGX Switcher’s integrated NetLinx NX Master is equipped with a low-speed USB connection labeled “Program.” Use the
provided USB mini-AB adapter cable (CA1090-541) to establish a connection between the Program port on the enclosure and the
PC’s USB port. This connection provides serial-based communication between the integrated Master and NetLinx Studio. This port
is useful for getting and setting the system’s IP address (in NetLinx Studio, open Tools/Telnet Session and enter either GET IP
<D:P:S> or SET IP <D:P:S>, where D:P:S is Device:Port:System).
IMPORTANT: The Program port is not recommended for firmware updates or large file transfers. These more data-intensive
operations are better handled via the LAN 100/1000 port connection.
Cable Requirements
□ USB mini-AB adapter cable (provided) – required to connect an Enova DGX Switcher via its Program port to a PC.
Program Port LEDs – Modes and LED Blink Patterns

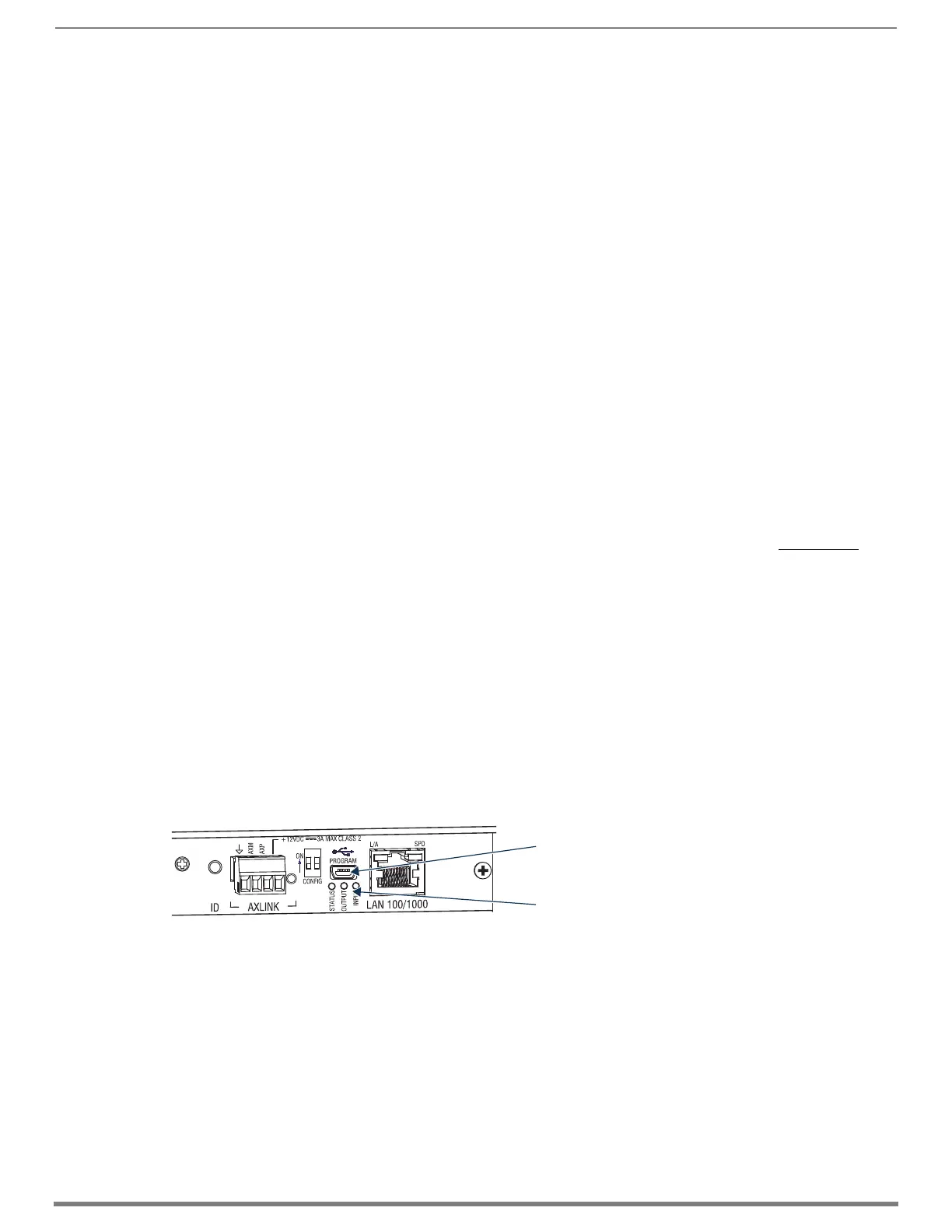

FIG. 33 Program Port LEDs
Program port
Program port LEDs
