Dell PowerVault MD3200i User Manual

Management: Installing Array Components 213
Hard Drives
SAFETY: Models AMT, E03J, and E04J
Models AMT, E03J, and E04J are intended for installation only in restricted
access locations as defined in cl 1.2.7.3 of IEC 60950-1:2005.
Depending on your configuration, your array either supports up to twenty
four 2.5" SAS hard drives or up to twelve 3.5" SAS hard drives in internal drive
bays. Hard drives are connected to a backplane through hard-drive carriers
and can be configured as hot-swappable.
Removing a Hard-Drive Blank
CAUTION: To maintain proper system cooling, all empty hard-drive bays must
have drive blanks installed.
1 If installed, remove the front bezel . See "Removing the Front Bezel" on
page 212.
2 Press the release tab and slide the hard-drive blank out until it is free of
the drive bay.
See Figure 16-2 for PowerVault MD3200i and Figure 16-3 for
PowerVault MD3220i.

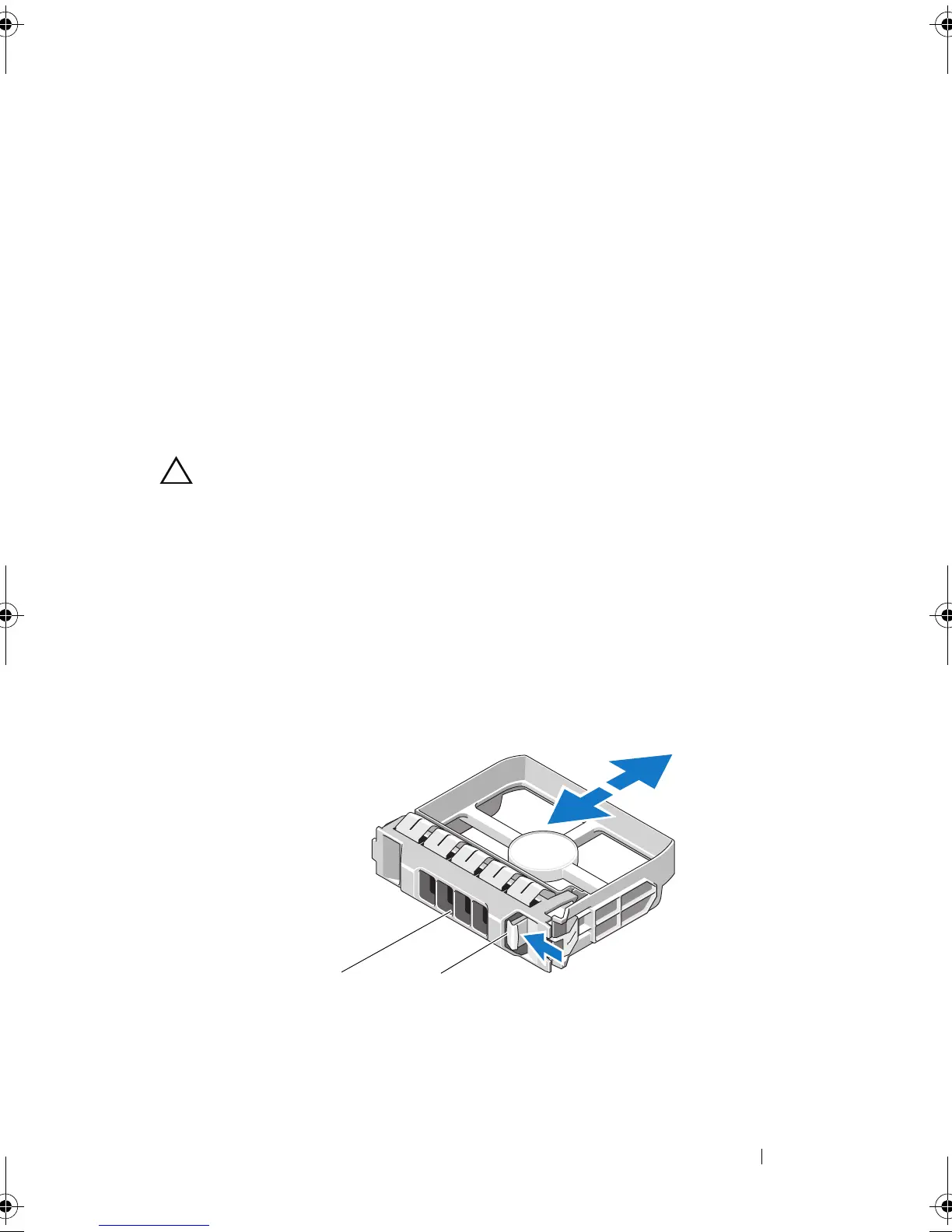

Figure 16-2. Removing and Installing a 3.5" Hard-Drive Blank (MD3200i Only)
1 hard-drive blank 2 release tab
1 2
book.book Page 213 Saturday, September 24, 2011 9:06 AM

Dell PowerVault MD3200i Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Maximum supported storage capacity	115.2 TB
Number of storage drives installed	12
Interface	RJ-45, SAS, PS/2
Connector(s)	4x RJ-45, 1x 6Gb SAS, 1x PS/2
Power supply type	AC
Dimensions (WxDxH)	446.3 x 561 x 86.8 mm
Power requirements	90 - 264 V, 47 - 63 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows, Linux, VMware, Hyper-V
Internal	No
LED indicators	HDD, Power, Power fail, Status
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (typical)	25 W
Power supply unit (PSU) capacity	600 W

Weight and Dimensions

Weight	29300 g
